Fast, Repeatable Alignment Without the Hassle
Couldn't load pickup availability
Save Money & Time
Improve Accuracy
Increase Efficiency
Product overview
Product overview
Fast, Repeatable Alignment Without the Hassle

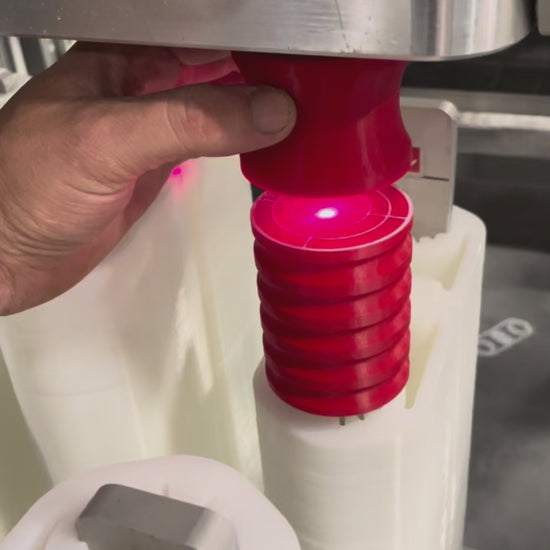

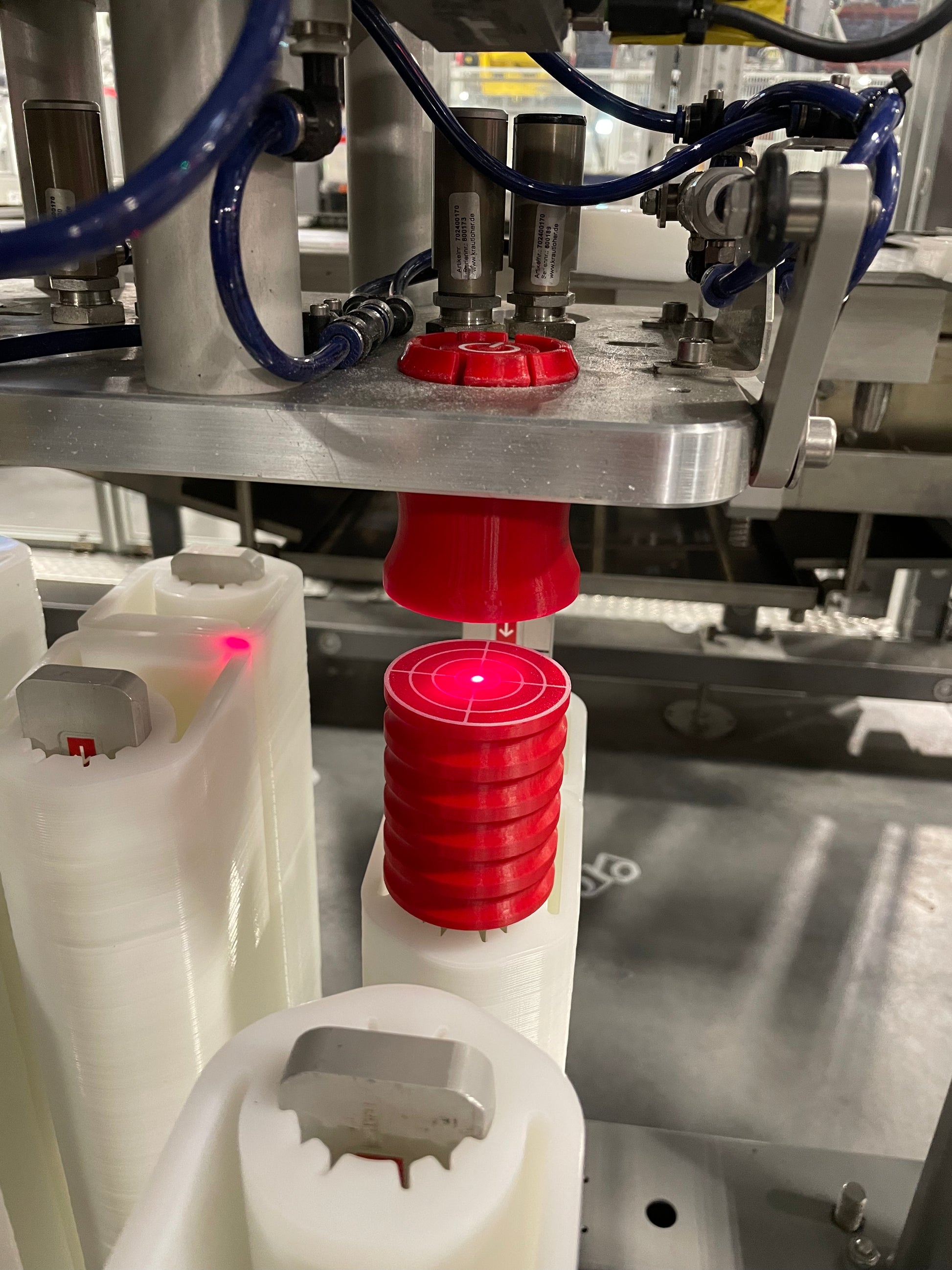

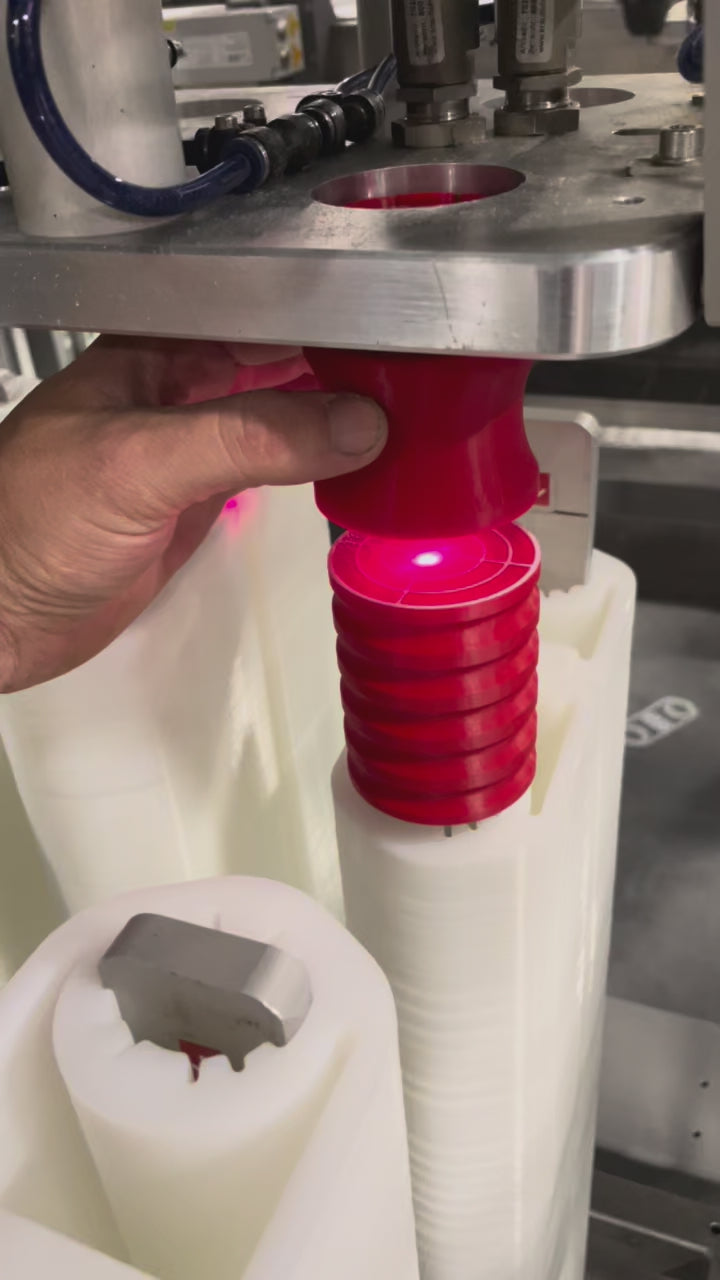

The Laser Alignment Tool provides a simple, visual way to accurately align the posts on a robotic handle applicator. Insert the laser tool into the robotic arm which clips into place, put the target adapter on the corresponding post you want to align, and adjust each post position until the laser dot is centered on the target.
This clear visual reference makes alignment faster, easier, and more repeatable than relying on manual measurements or trial and error. By helping technicians perform misalignment adjustments quickly, the tool helps prevent production downtime and reduces the chance of improperly positioned posts

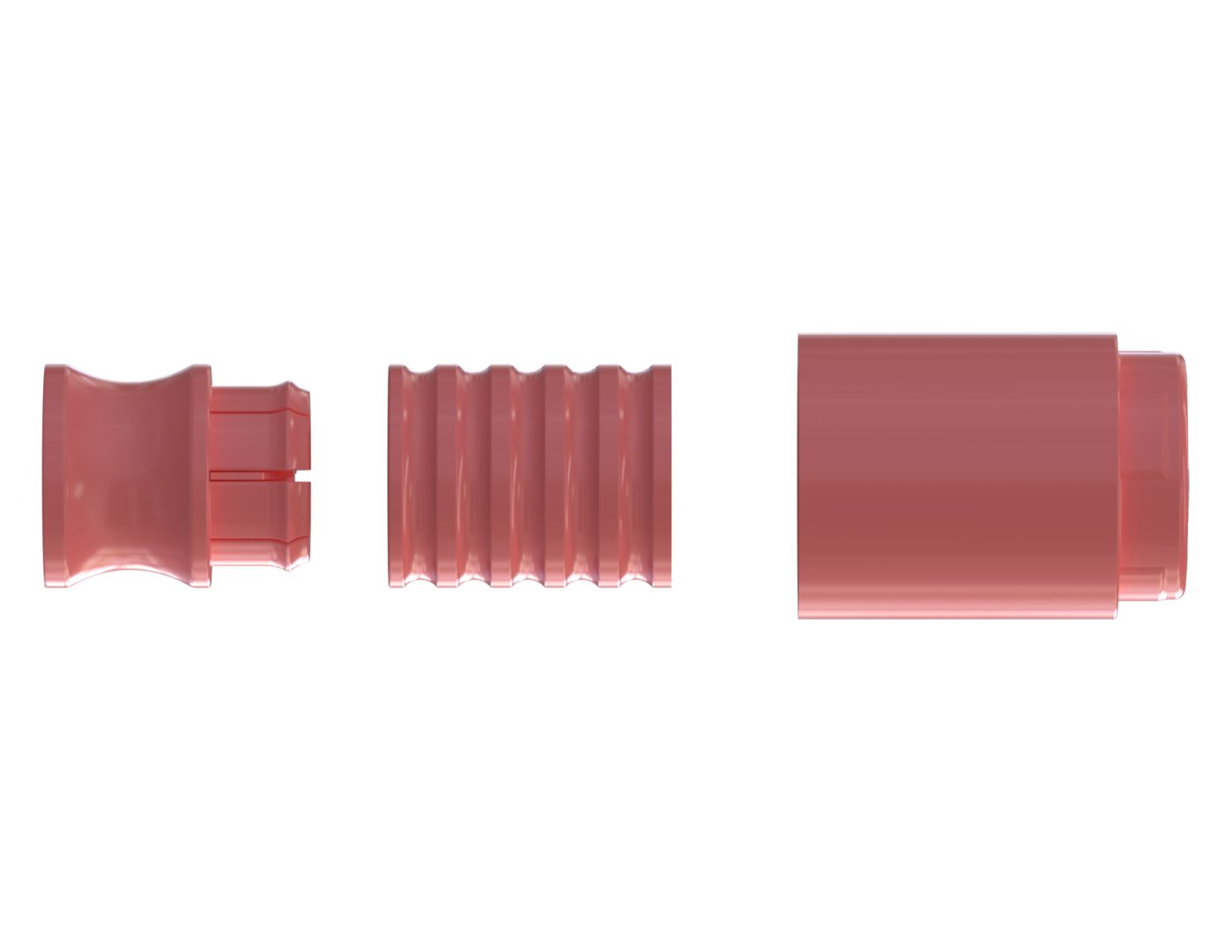

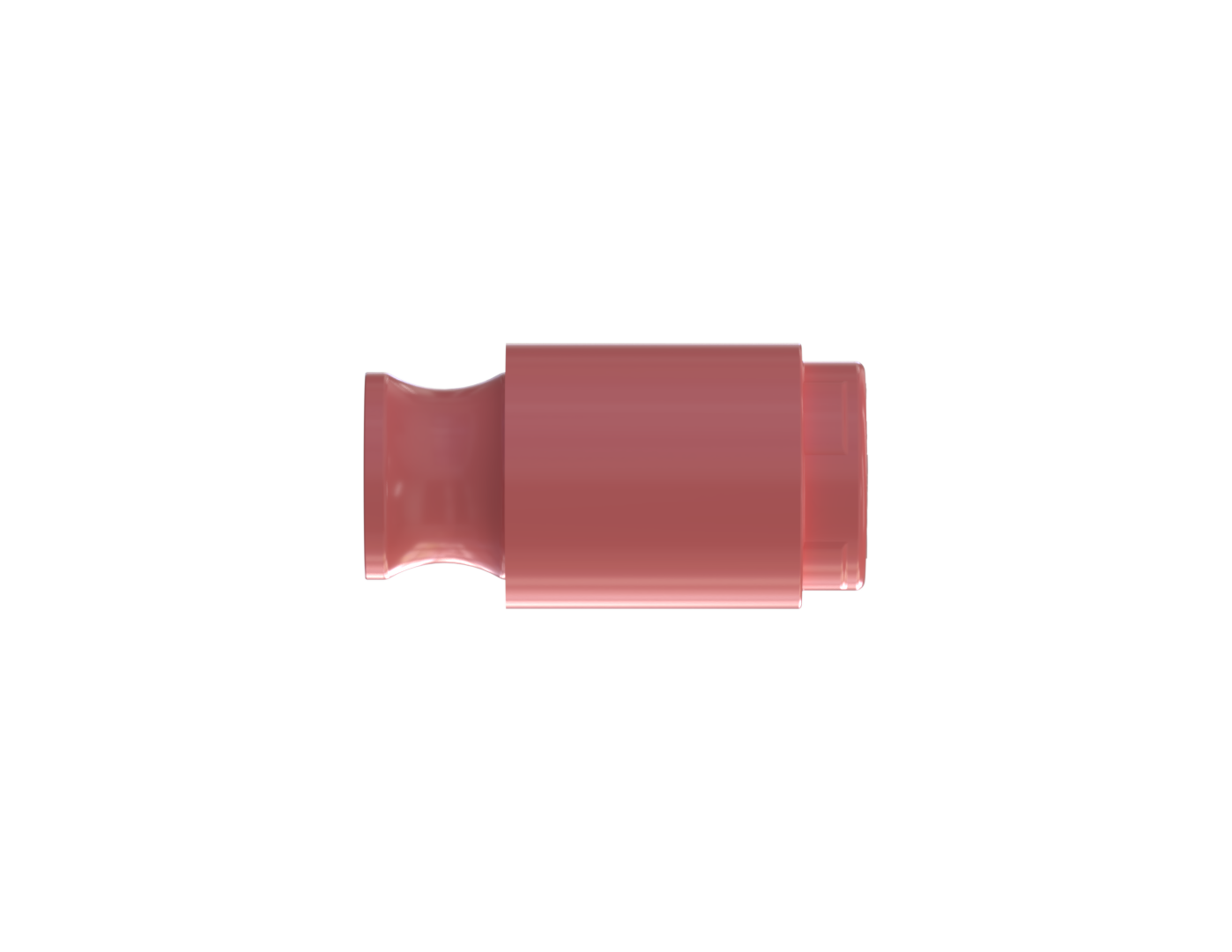

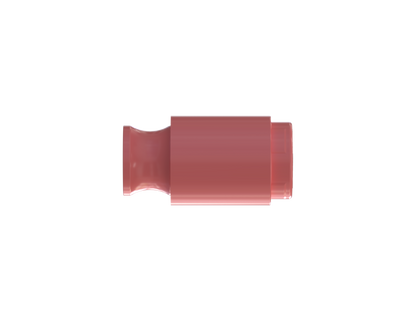

Compact and easy to use, the tool stores as a single assembled unit and separates into its individual components when needed(laser module, post visual alignment marker, and photo eye blocker)—making it practical for maintenance teams, changeovers, troubleshooting, and routine equipment setup.
Tech specs
Tech specs
Laser: .5mW 650nm red laser
Battery: LR44 button cell.
Power on/off: Tactile toggle button.
Construction: Enclosure crafted from durable ABS.
Dimensions: 9.1 inches by 7.6 inches by 4.4 inches.
What's included?
What's included?
- Extra batteries.

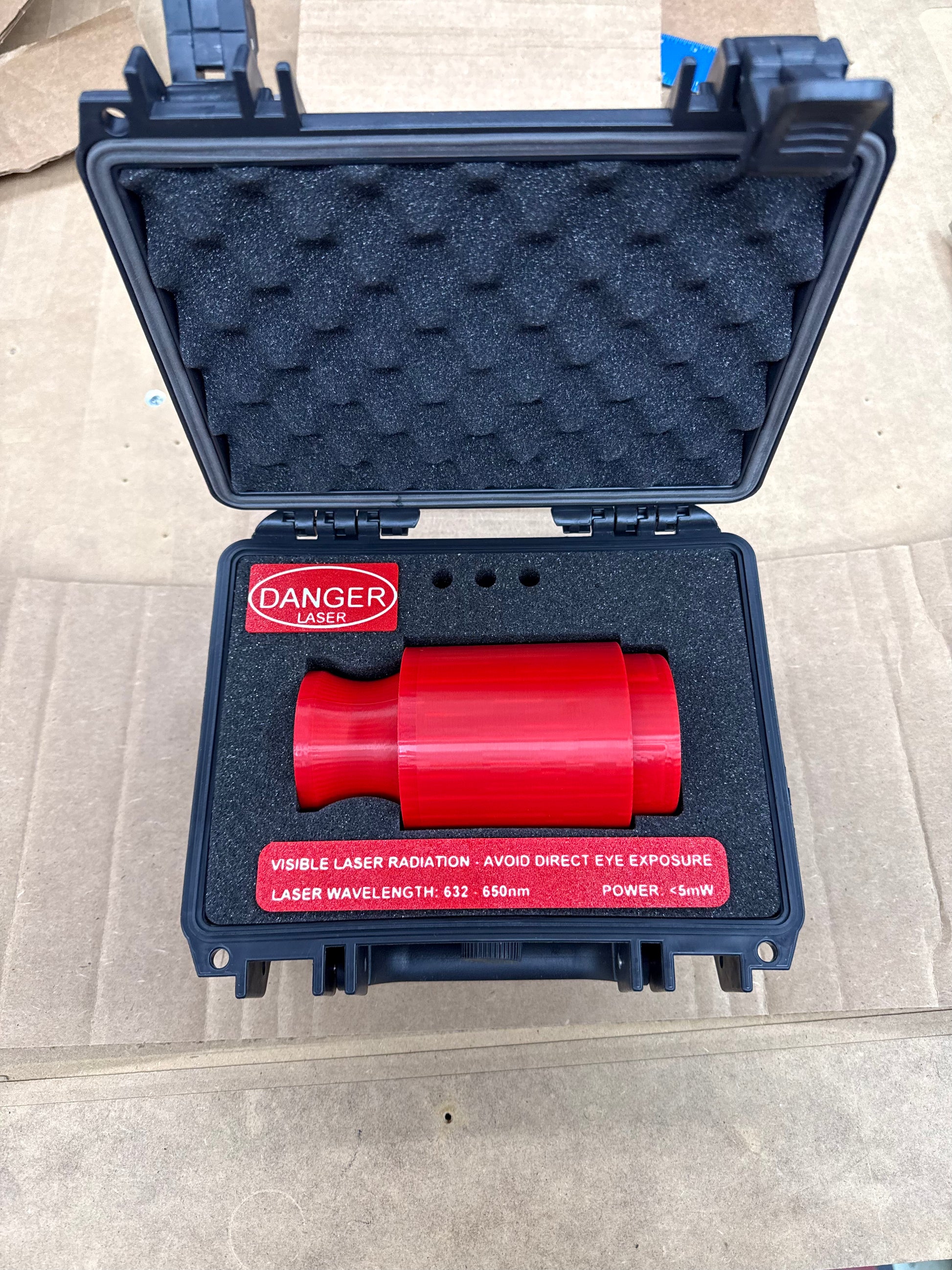

- Durable foam insulated protective case for secure shipping and storage.
- Physical and Digital manuals.
- A three-year warranty.
- 60-day money-back guarantee.
- Same day customer support.
Actual product may vary slightly from images shown due to continuous improvement efforts.
Same Day Support
3 Year Warranty
Free Shipping
Common questions
Read the handle applicator post alignment guideWhat alignment problem does Laser Align address?
The tool gives technicians a visible reference between the applicator arm and the post being aligned. The laser dot and target make a disagreement between those references easier to see during setup and maintenance.
It removes the guesswork often associated with this tedious task, and makes it easy and fast for one person to do.
How do the laser module and post target work together?

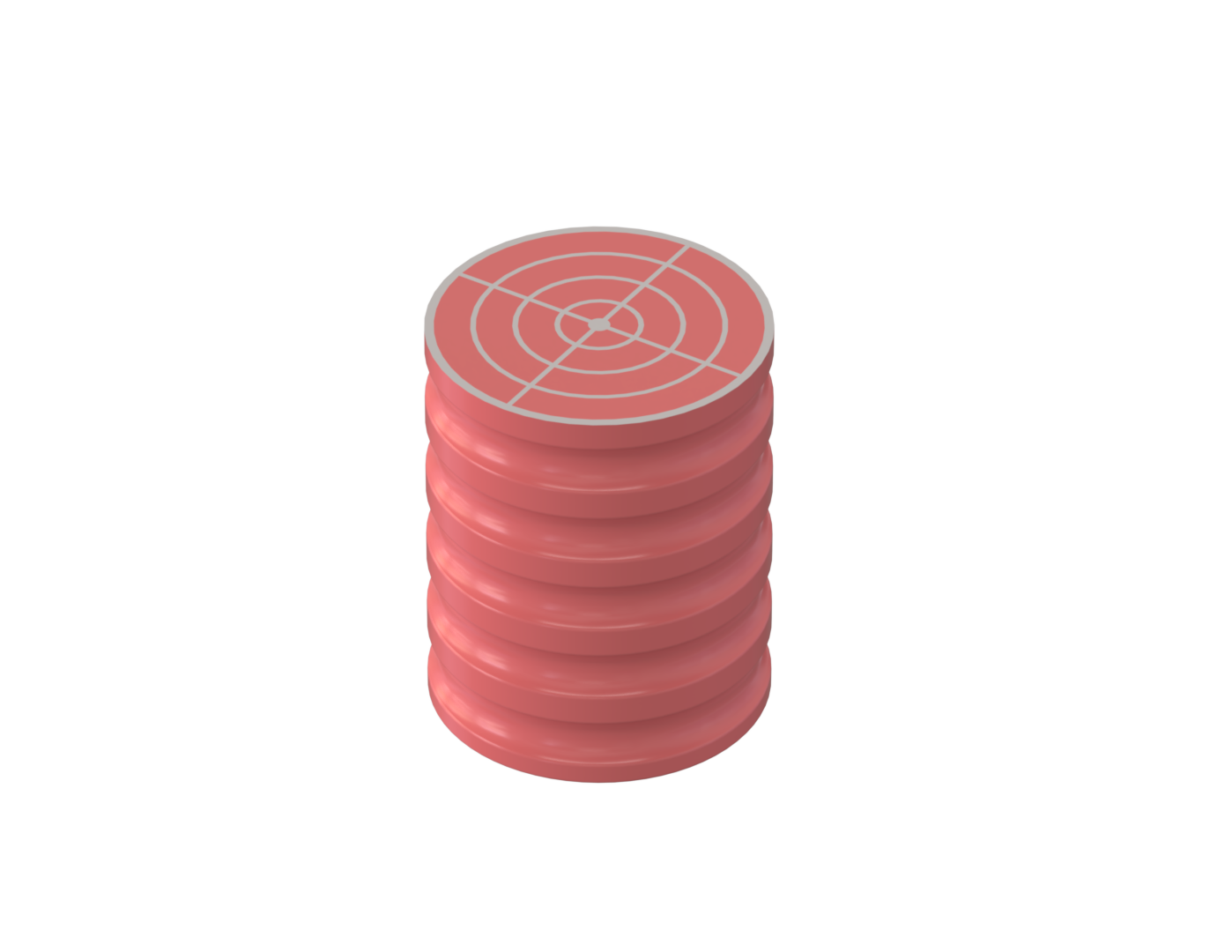

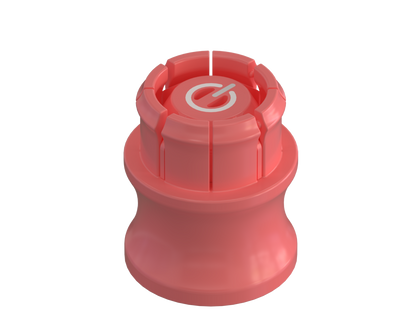

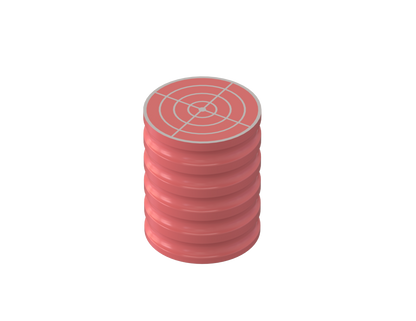

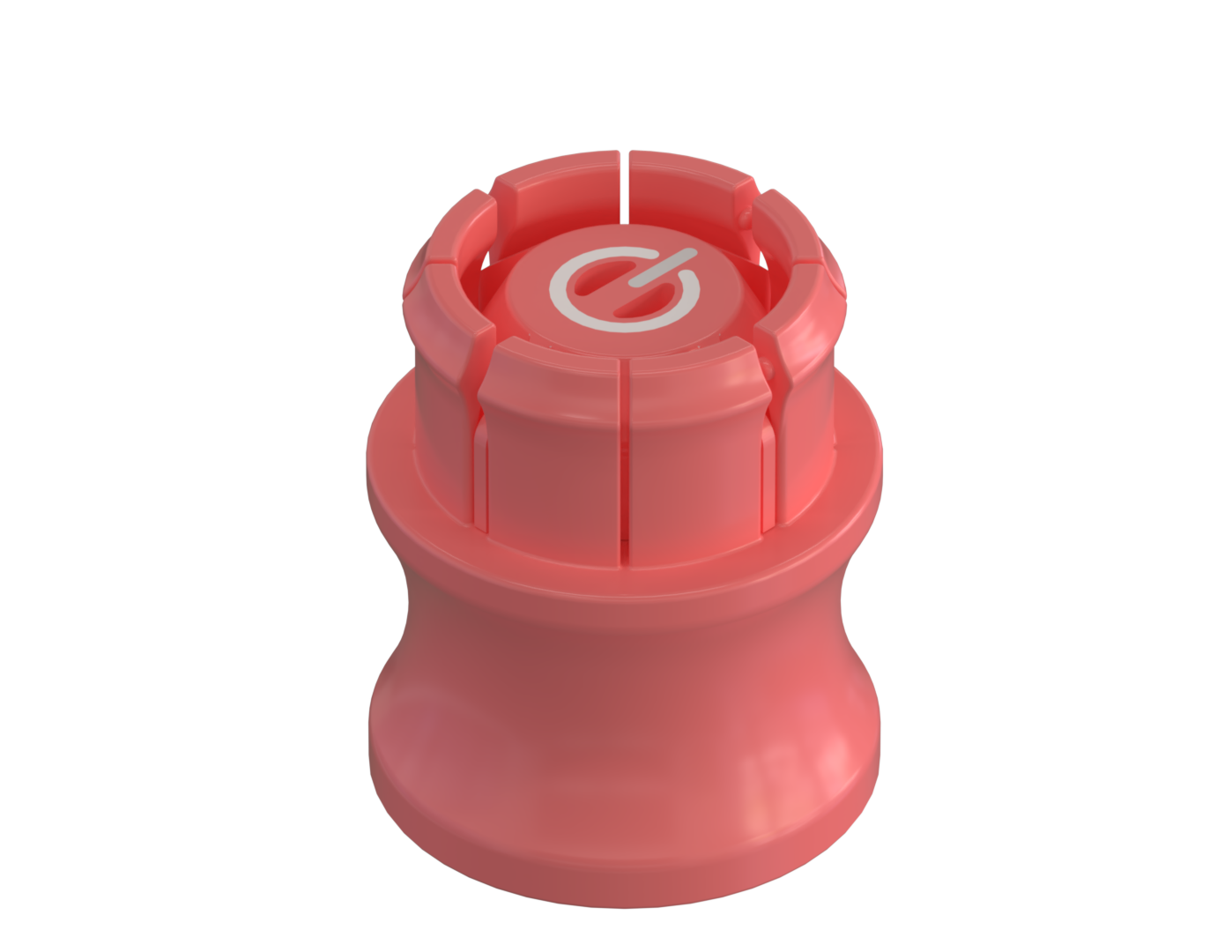

A laser module snap-fits into the robotic arm and a target fits to the corresponding post. The laser is turned on via a power button, the projected dot provides a reference for checking the relationship between them.
A technician uses the visible offset to guide the post adjustment according to the equipment procedure.
What does an off-center dot indicate?
An off-center dot shows that the arm reference and target center disagree in that setup. The target provides a consistent visible reference as the technician checks and makes adjustments at the post base.
The visual reference supports repeatable setup; machine acceptance still follows its specified alignment checks.
What are the three parts in the kit?

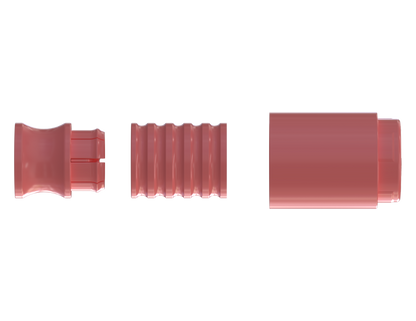

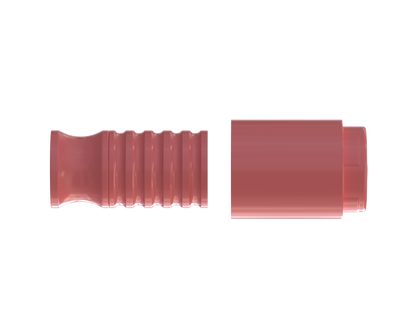

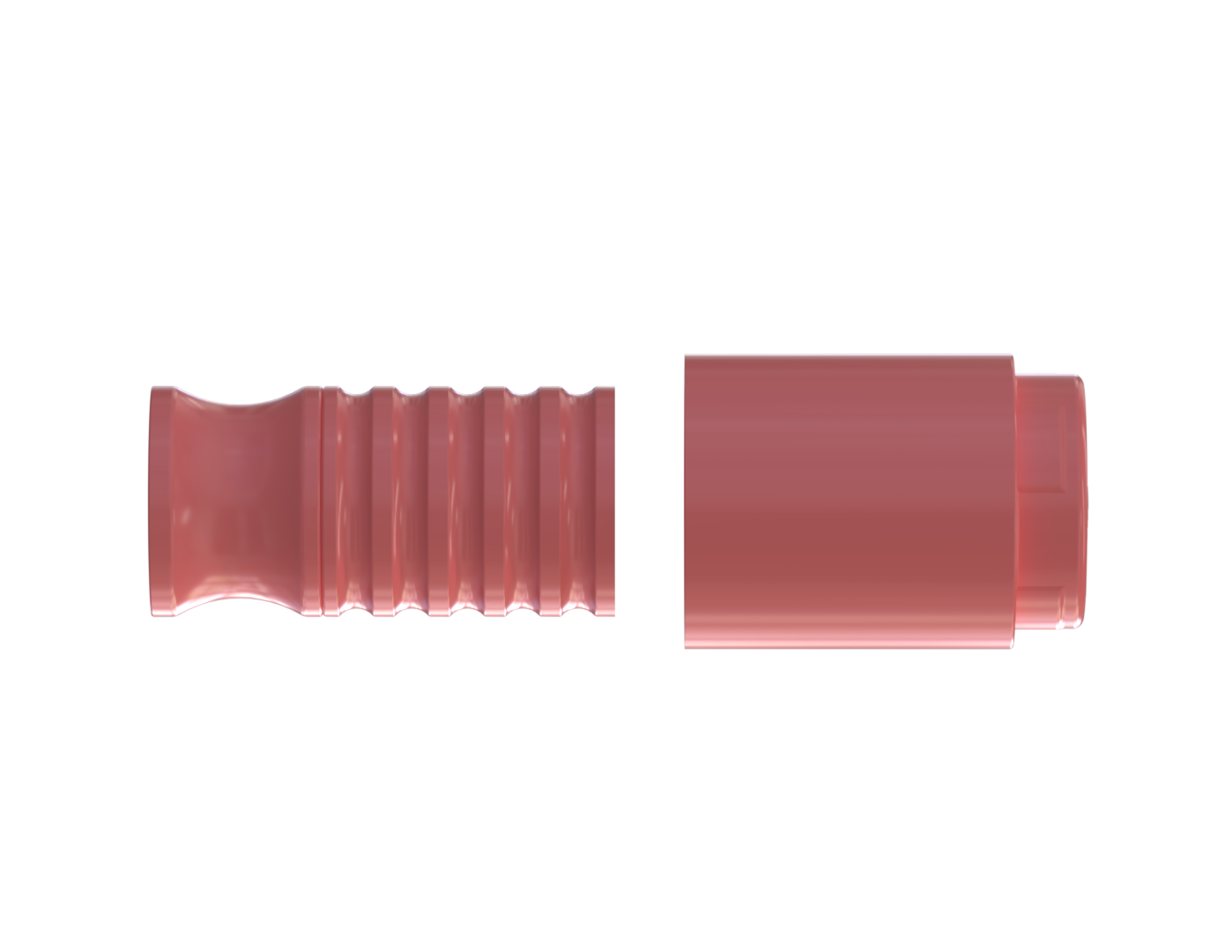

The kit combines a laser module, a post alignment target, and a photo-eye blocking accessory. The three components nest together for storage and separate for the maintenance task.
Use each component according to the tool instructions and the machine's approved maintenance procedure.
What equipment details are needed to confirm fit?
Provide the bottle handle applicator manufacturer and model, photos of the arm and posts, and any relevant mounting dimensions.
Confirm the arm and target fit for the actual applicator before selecting the tool.
If you have any questions please contact us directly, we are here to help!
What laser and battery does it use?
The listed specification is a 0.5 mW, 650 nm red laser with an LR44 button-cell battery.
We include two free additional replacement batteries in the carrying case.
What warranty and purchase guarantee are included?
Laser Align 3-in-1 includes a 3-year warranty and a 60-day money-back guarantee. We want to make sure you are happy with your purchase!
