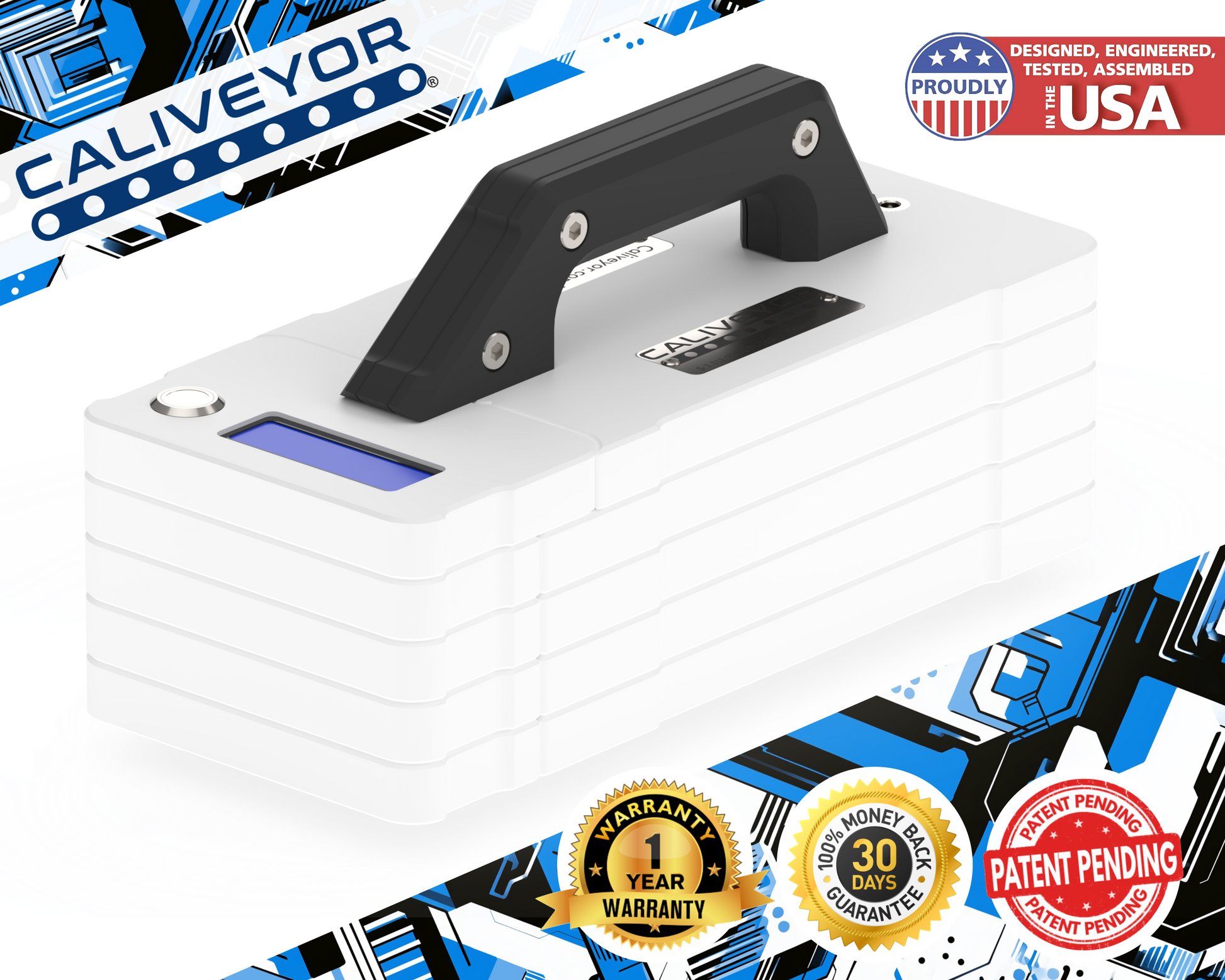

Designed and assembled in the USA
Patent pending

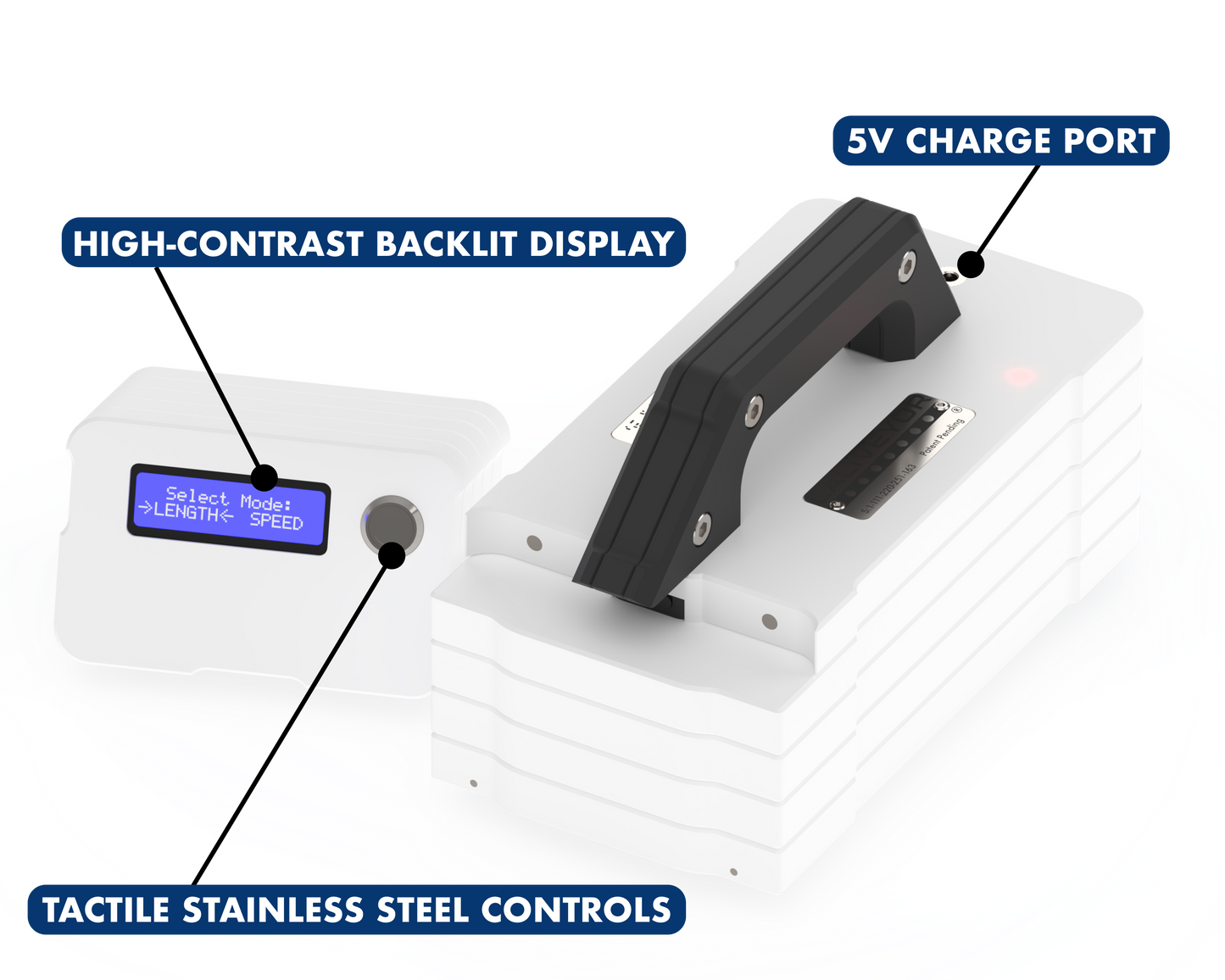

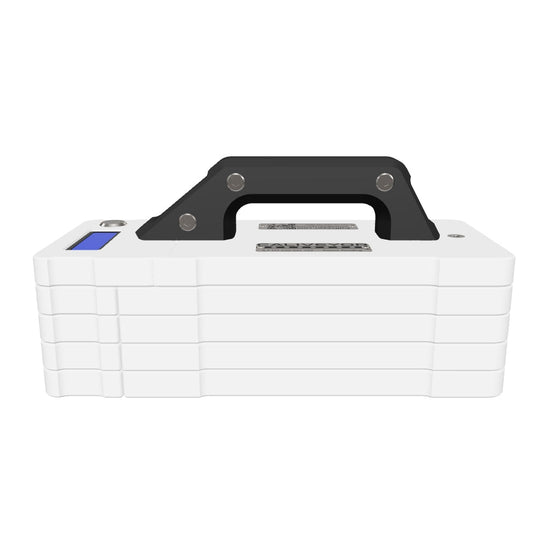

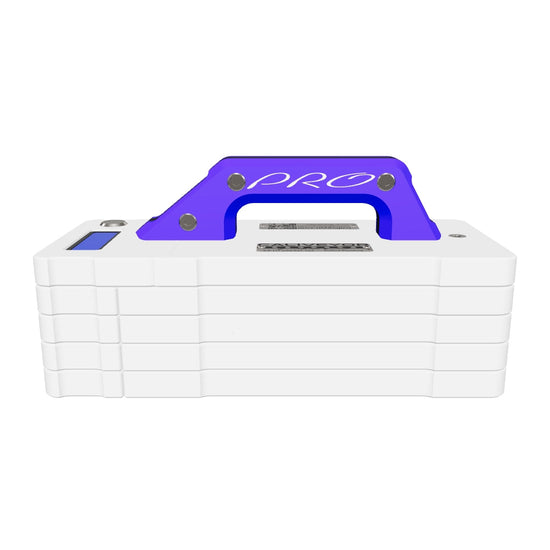

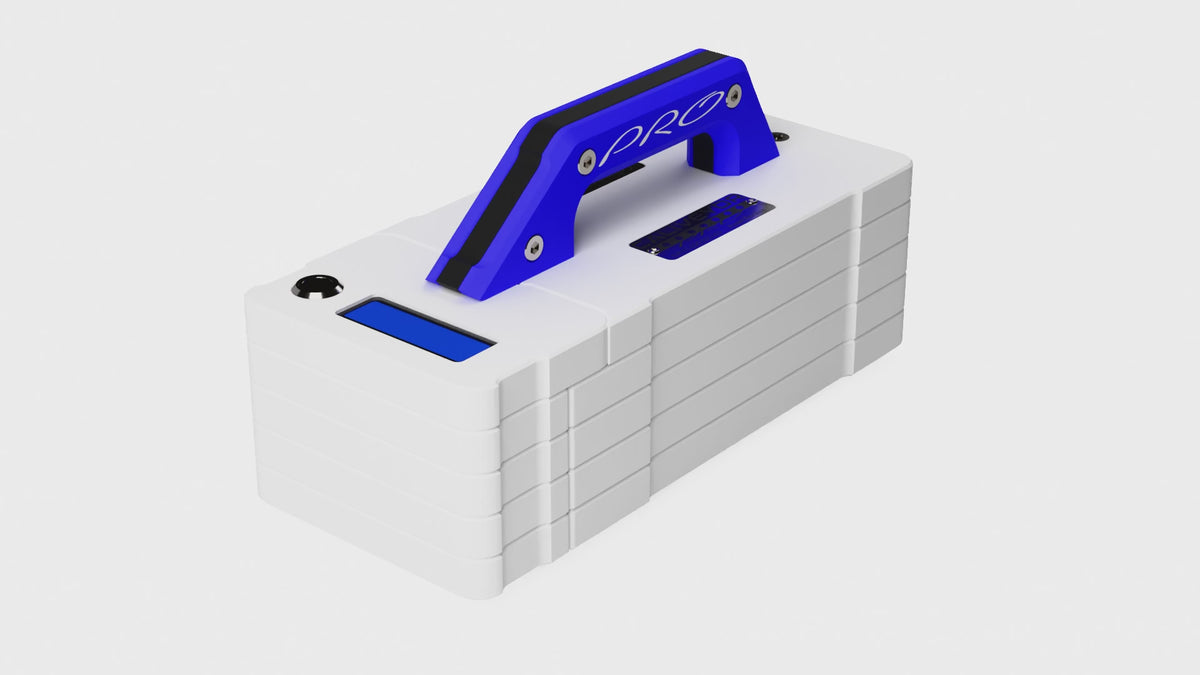

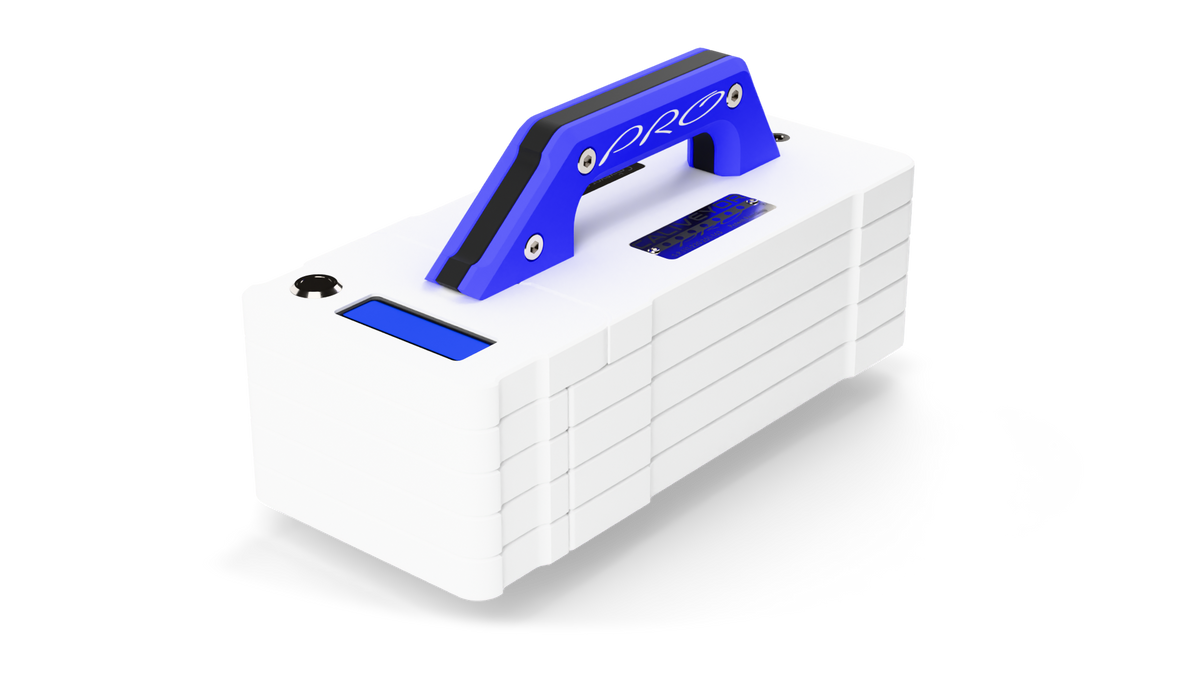

Caliveyor® PRO
Conveyor belt length
& speed calibration.
PRO measures full belt length. Compare measurements over time to monitor belt stretch.
0.25 mm PRO measurement resolution100 m wireless rangePRO full belt length measurement
Products
Drawing upon years of engineering and professional expertise, we craft innovative solutions that simply work.
How Caliveyor works:

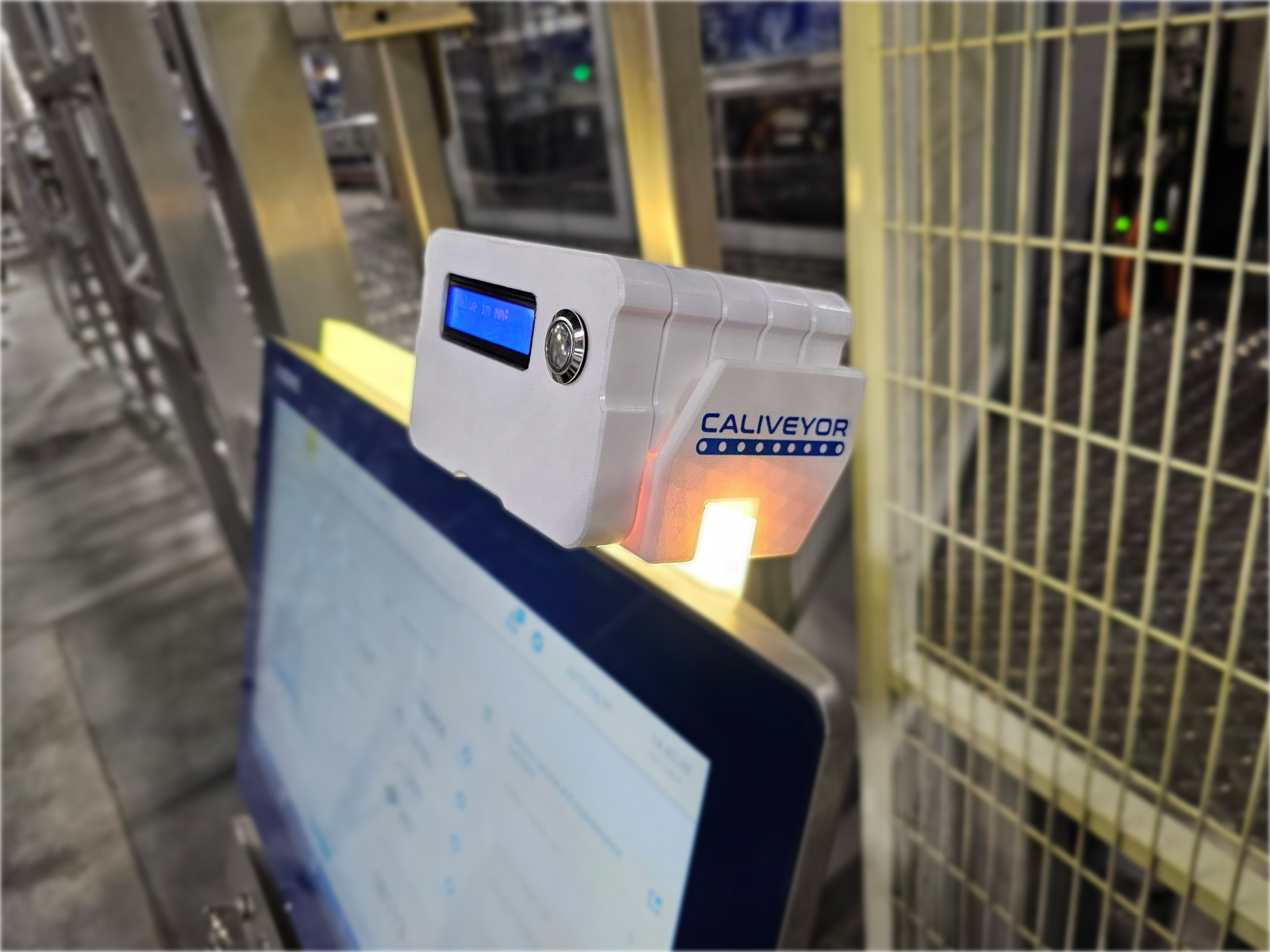

Jog or run the conveyor; the wireless remote shows live belt speed and travel distance.

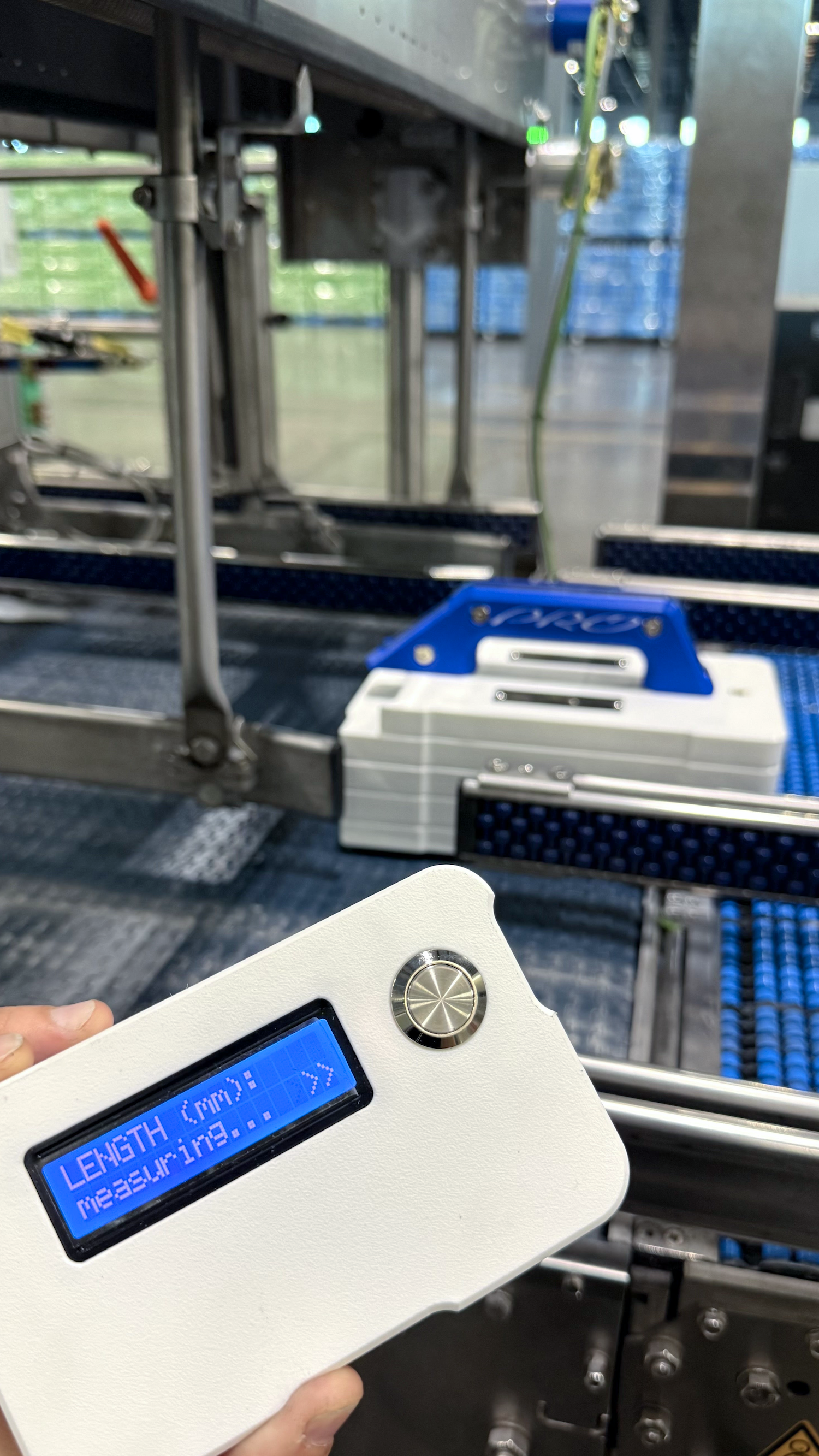

Precision length measurement
Measurement precision: 0.25 mm resolution on PRO; 1 mm on Essential.
Open the demonstrationLive speed measurement
Speed Measurement: Up to 2500 mm/sec (5mph) precision measurement capability.
Open the demonstrationFull belt length measurement
PRO measures full belt length. Compare measurements over time to monitor belt stretch.

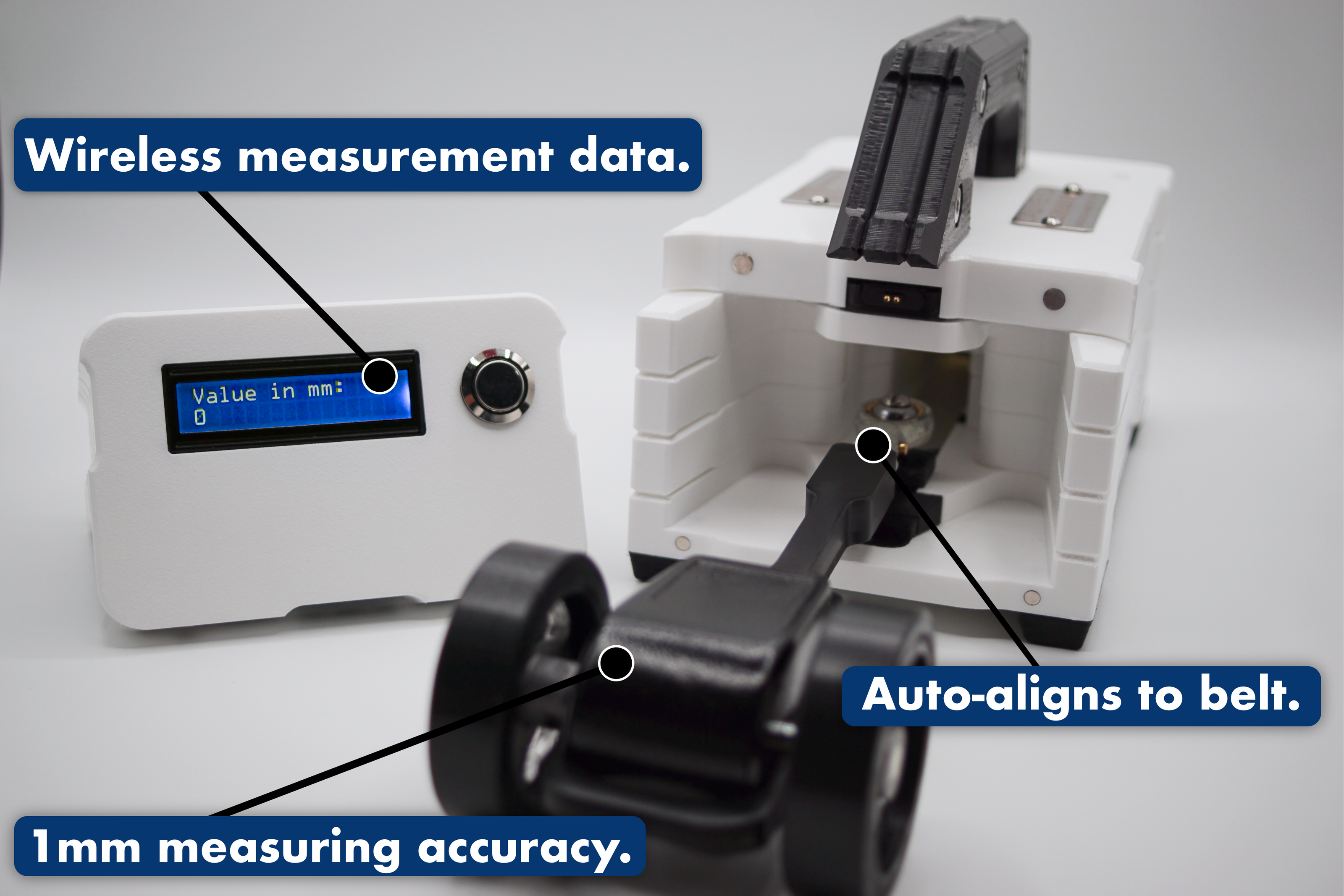

Open the demonstrationAuto alignment to the belt

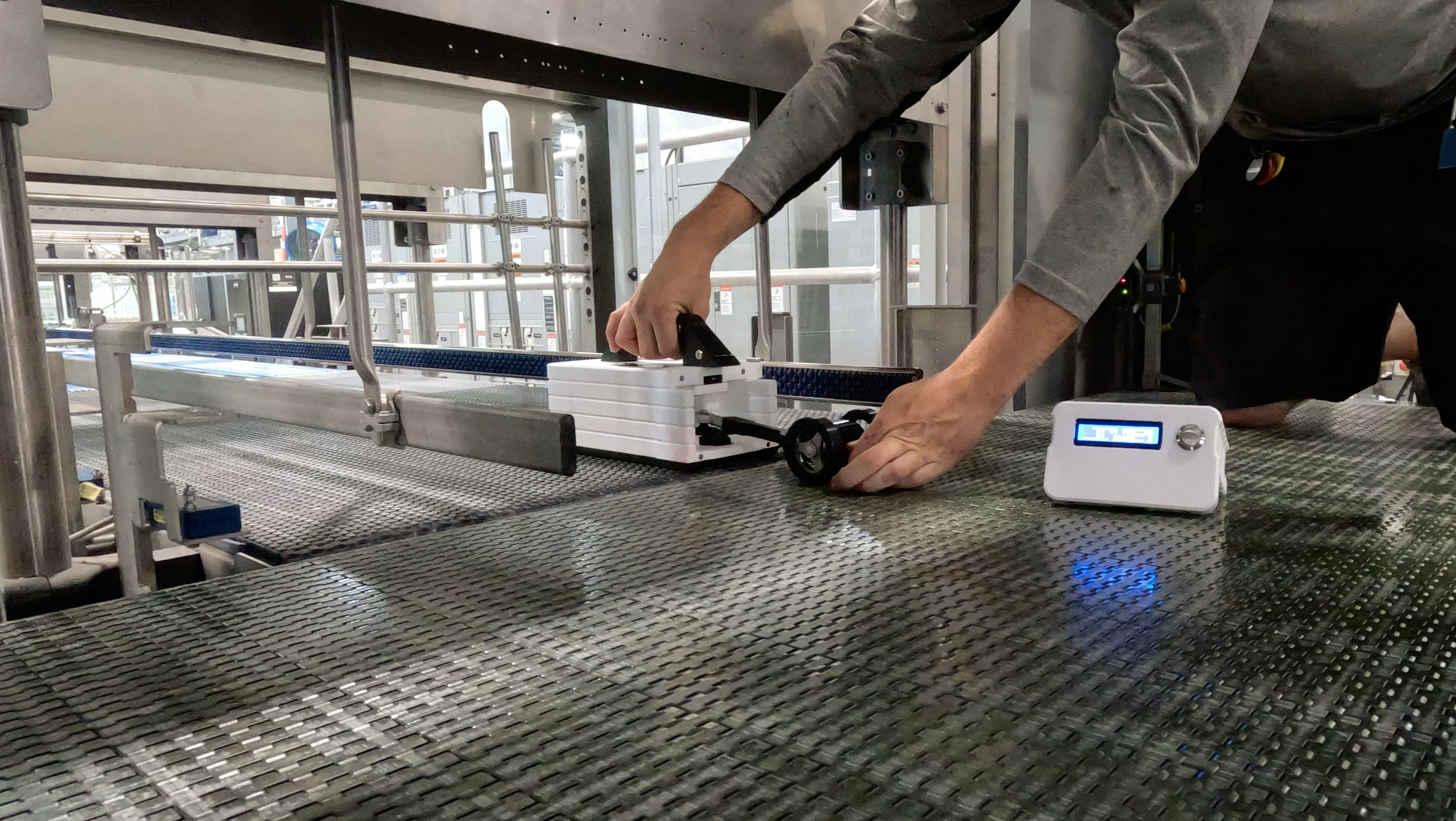

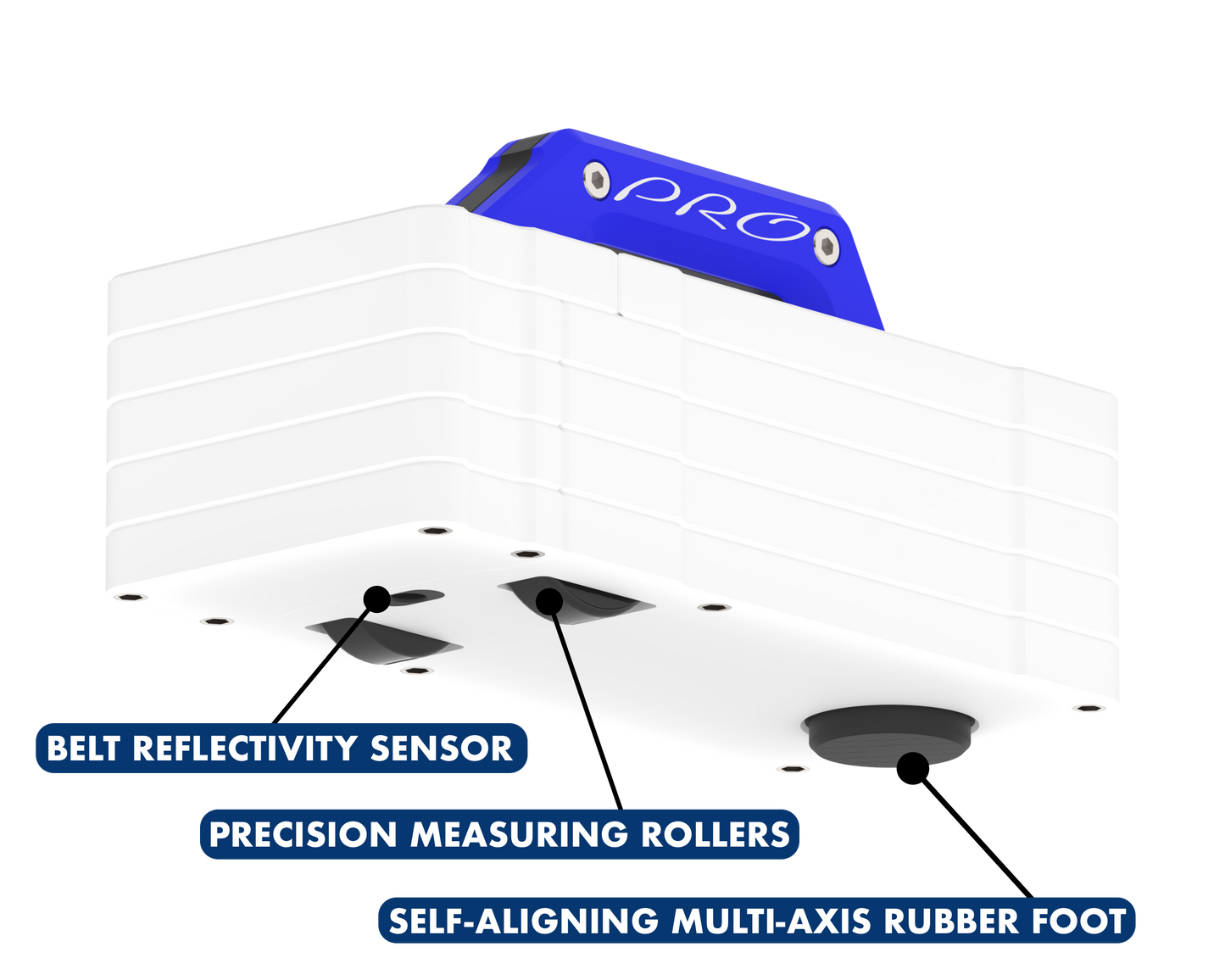

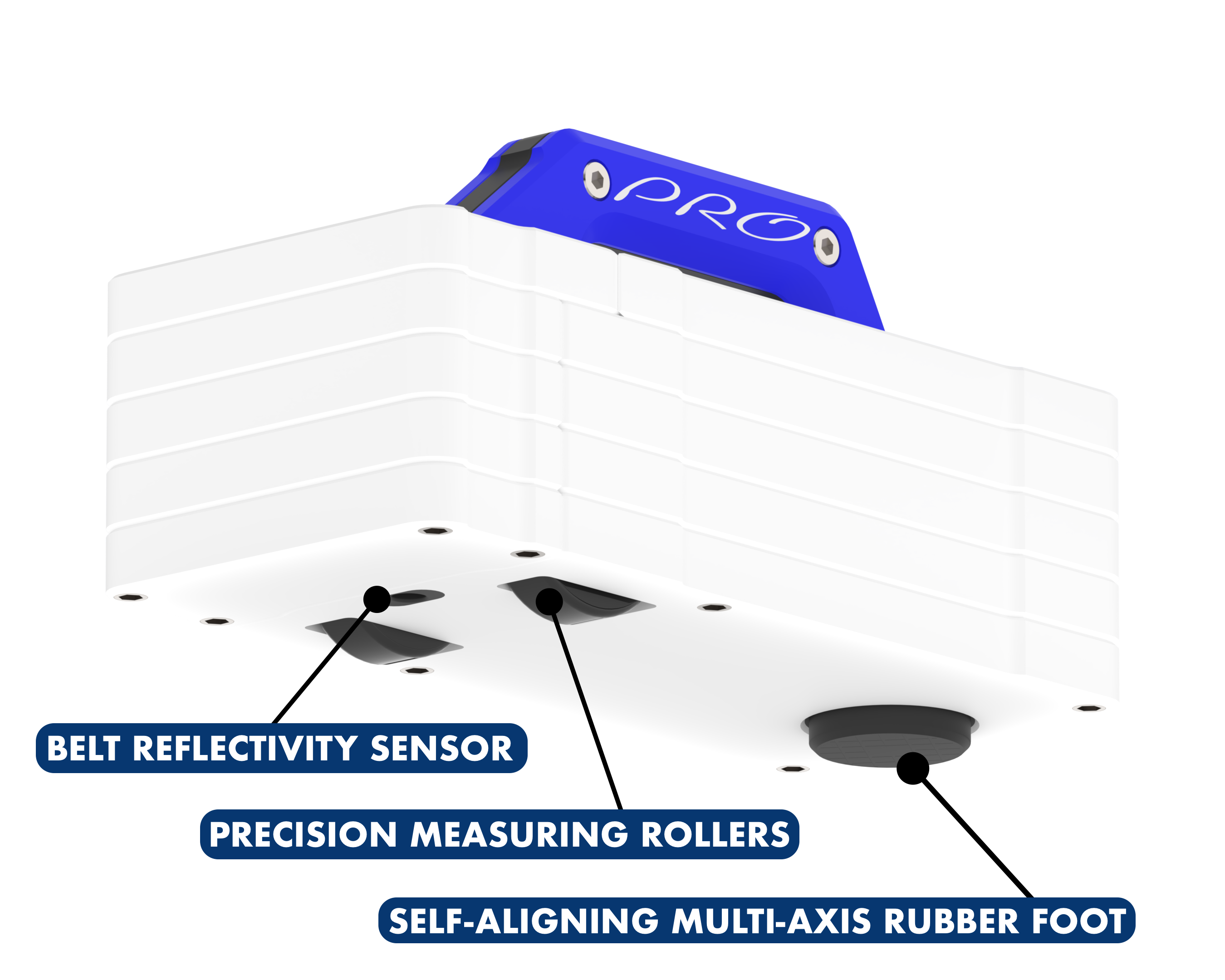

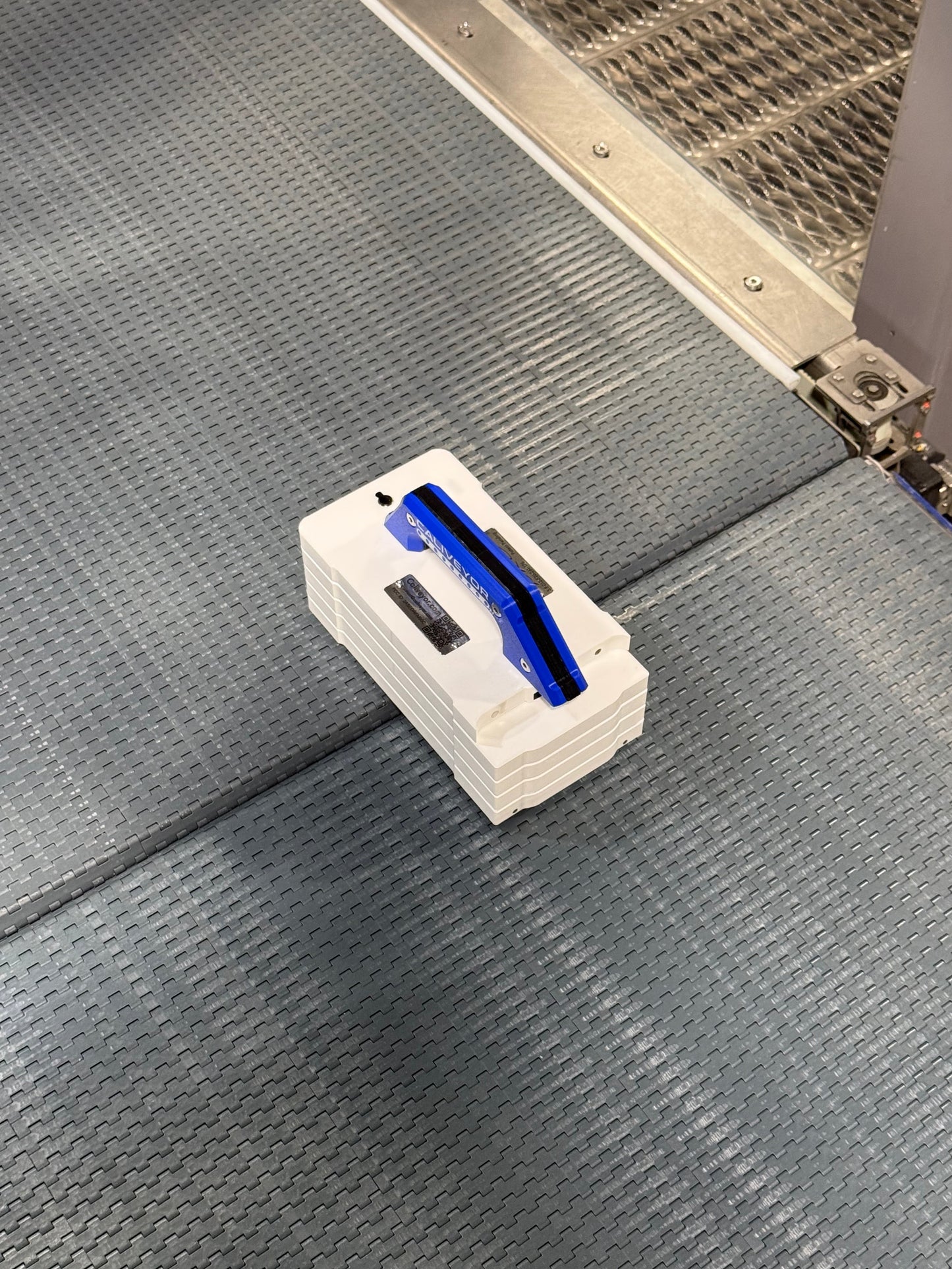

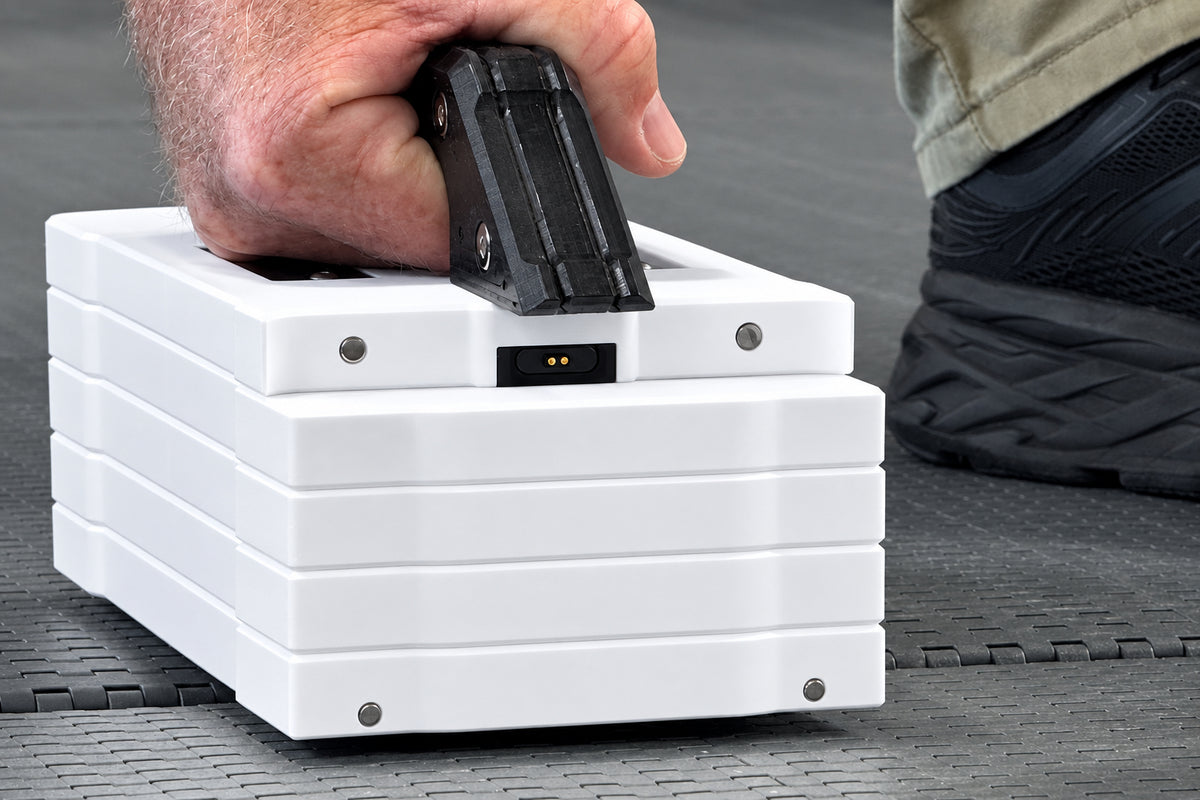

Place on to your conveyor. When the conveyor starts moving the tool auto-aligns itself to the belt.
Open the demonstrationDeploy

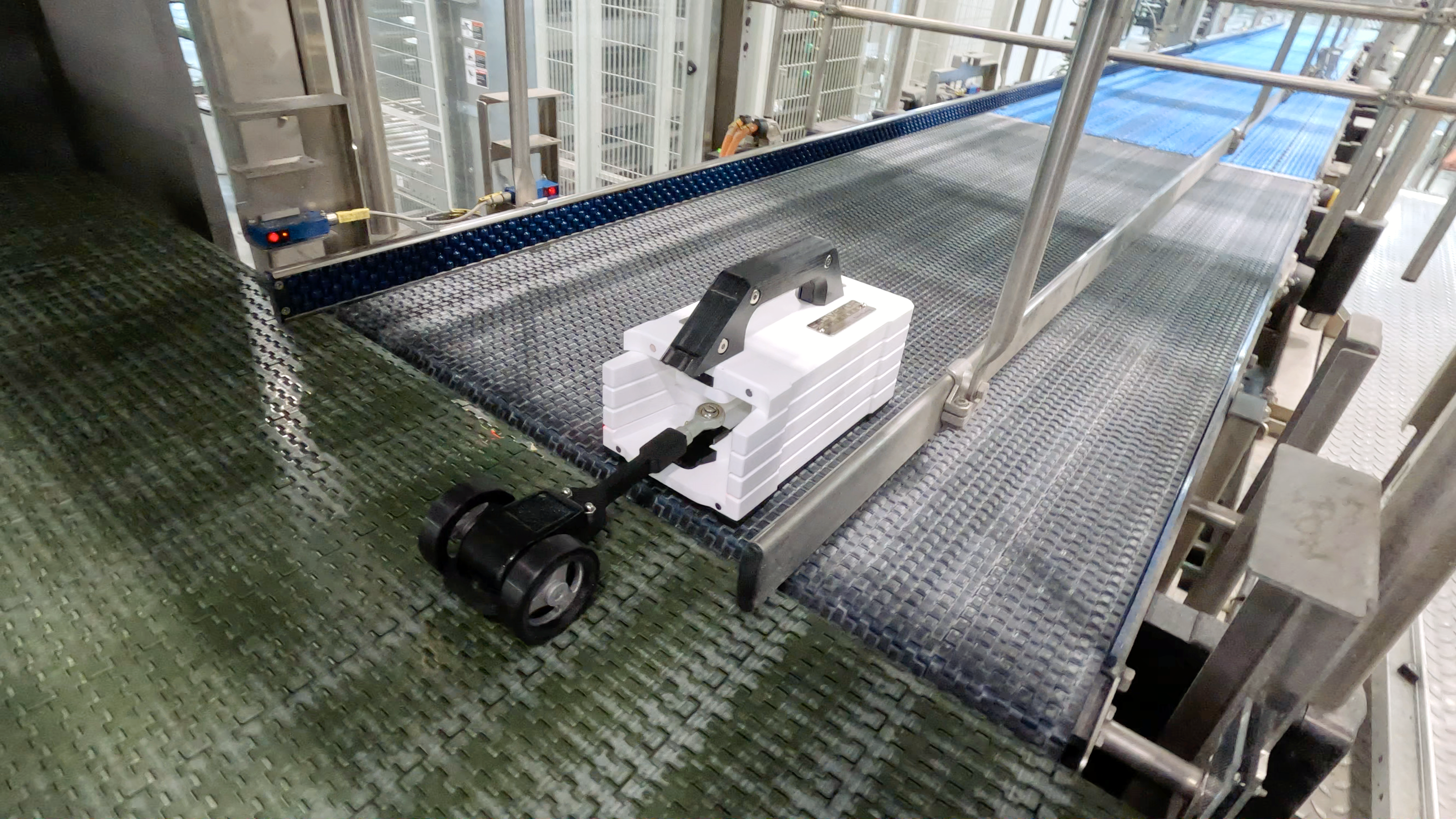

Place on to your conveyor. When the conveyor starts moving the tool auto-aligns itself to the belt.
Measure
Jog or run the conveyor; the wireless remote shows live belt speed and travel distance.
Adjust & validate
Use the readings to calibrate machines, check for issues, or document findings.
Key Benefits
Fast and repeatable conveyor measurements that reduce downtime.
Improve Accuracy
Measure with 0.25 mm resolution on PRO or 1 mm on Essential, with live speed measurements up to 2500 mm/sec.
Simplify Calibration
One person operation, no repeat validation steps needed, no back and forth walking from HMI to conveyor belt. Deploy, measure, and put away.
Increase Efficiency
Spend up to 85% less time performing the same maintenance, giving your team more time for other tasks.
Save Money
Less training, less maintenance time, and empowers any single technician for multi-pronged savings.

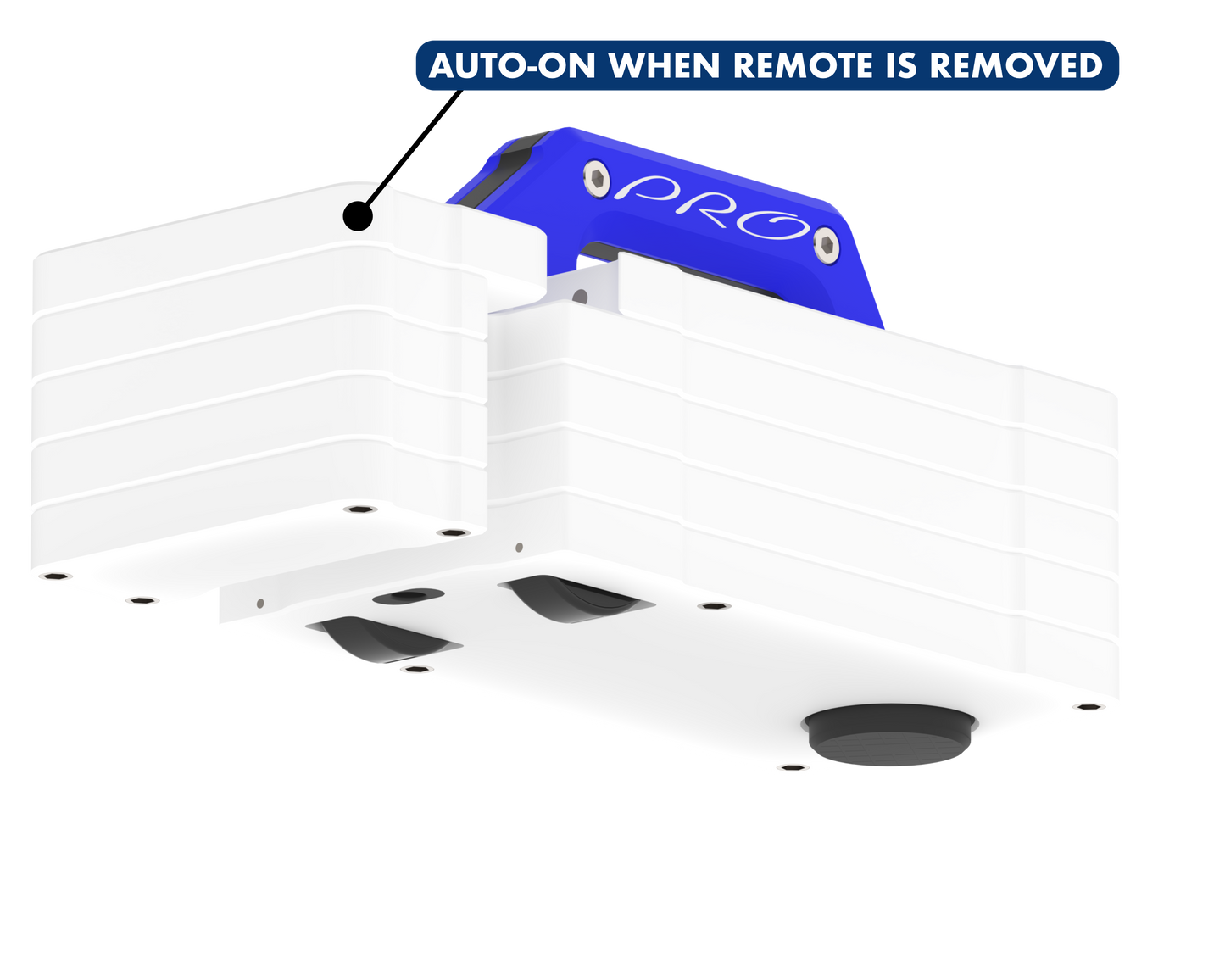

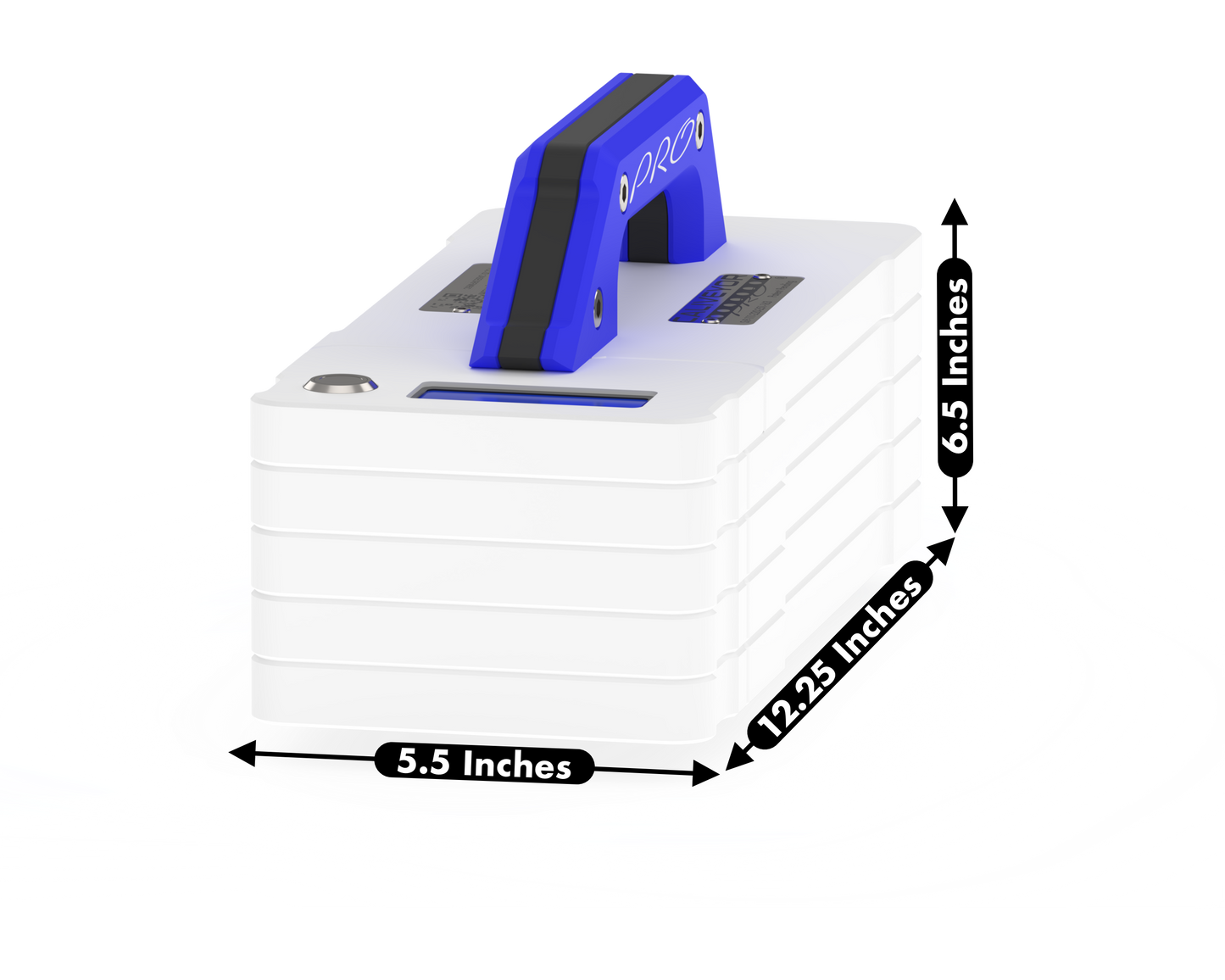

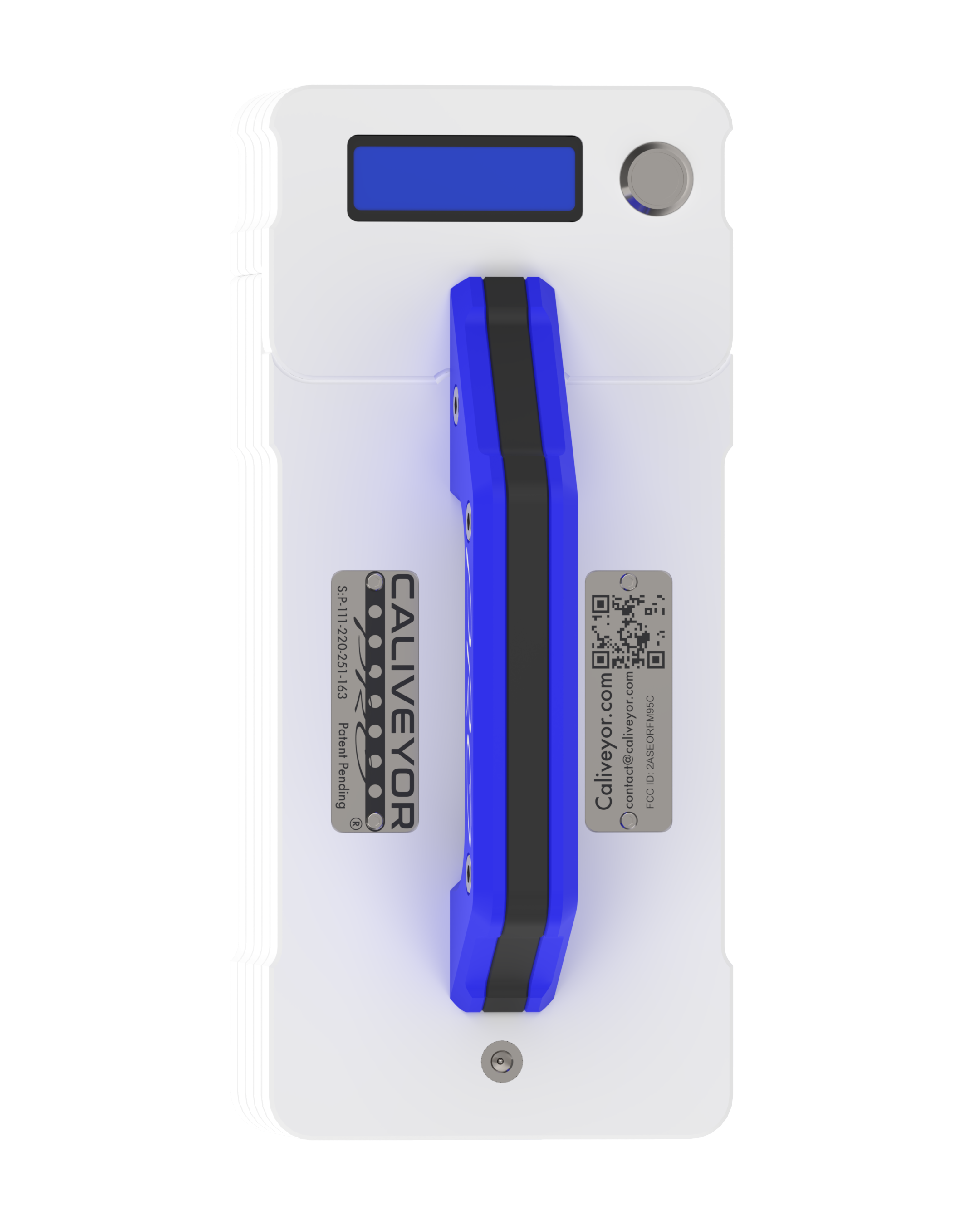

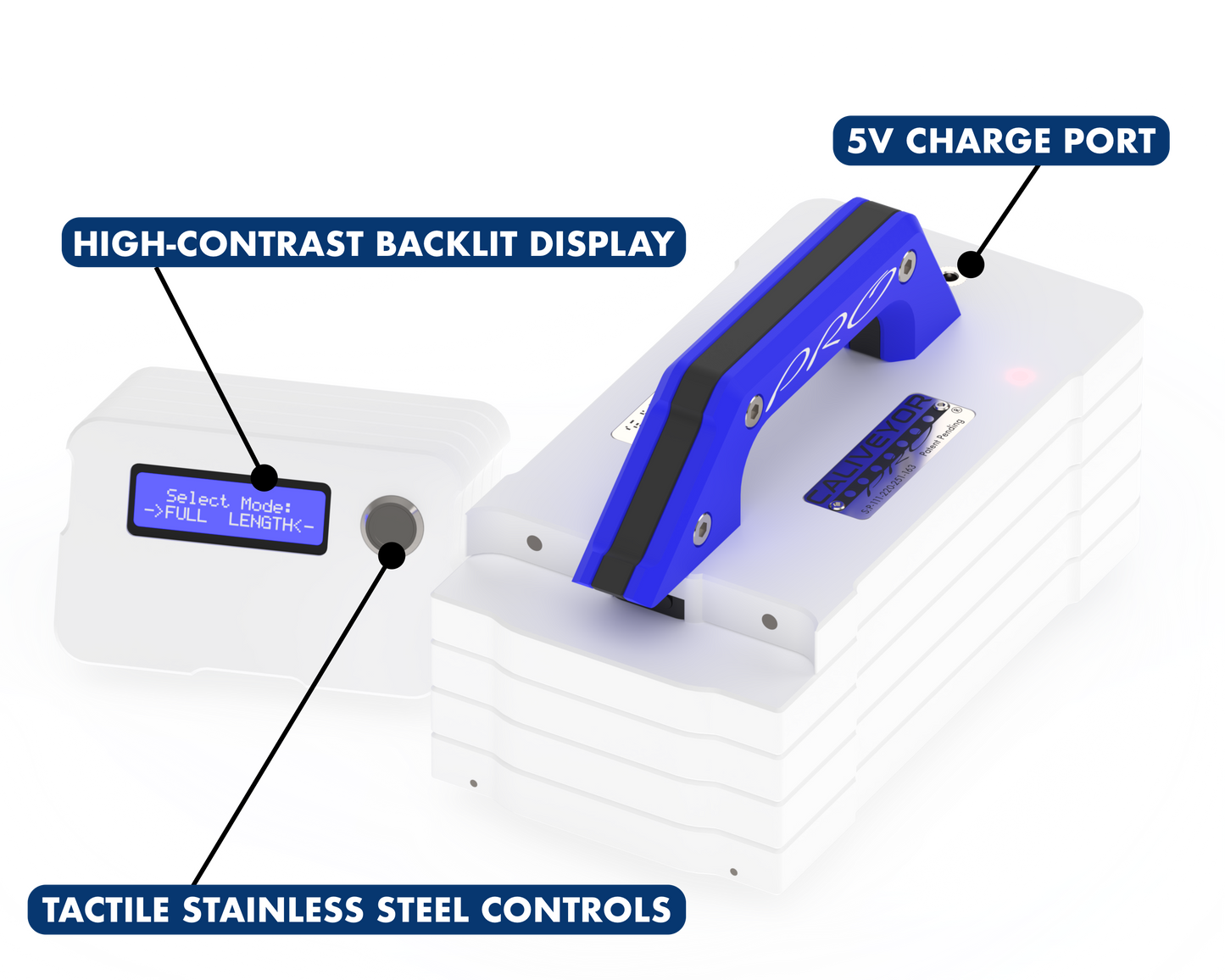

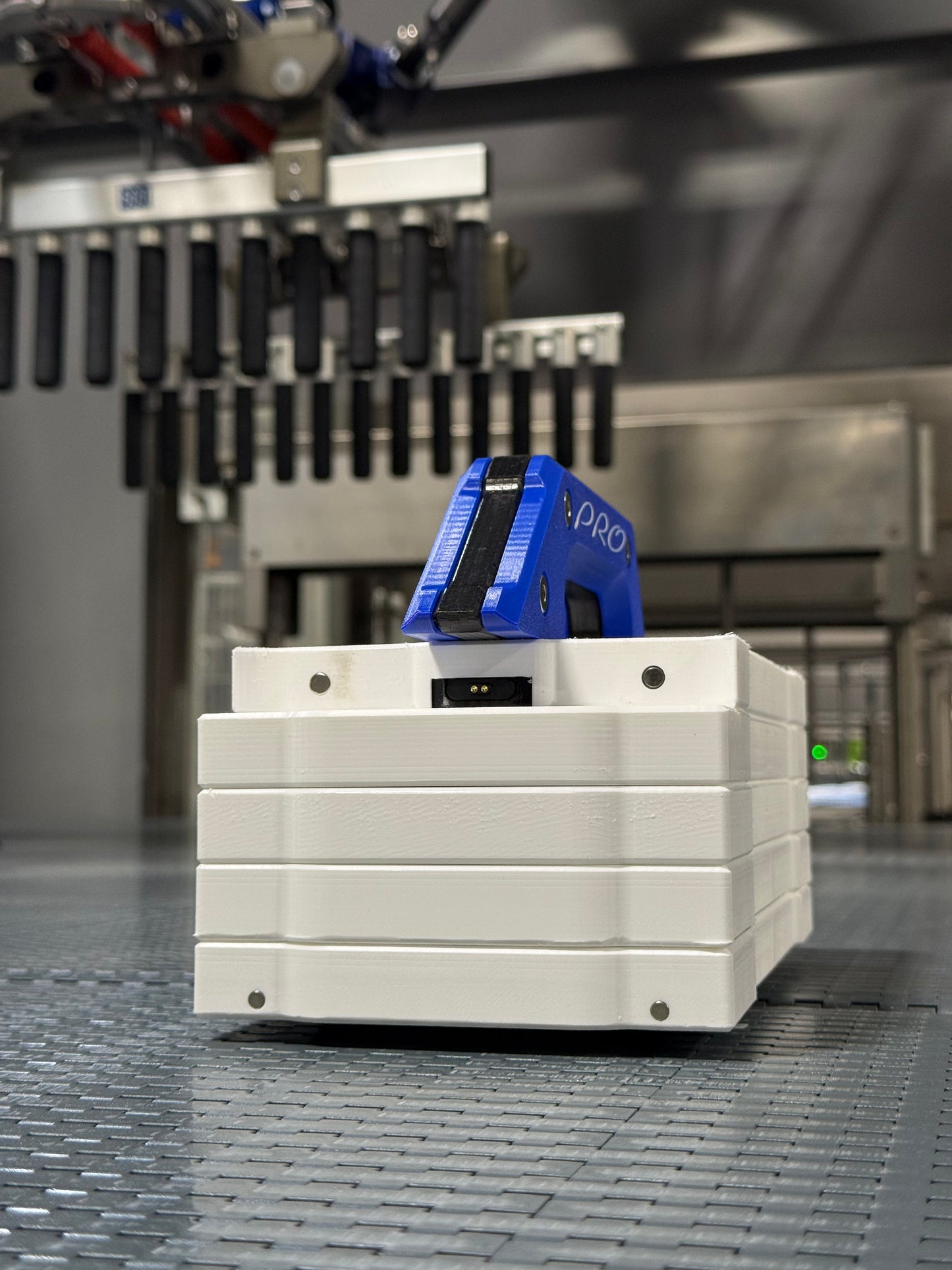

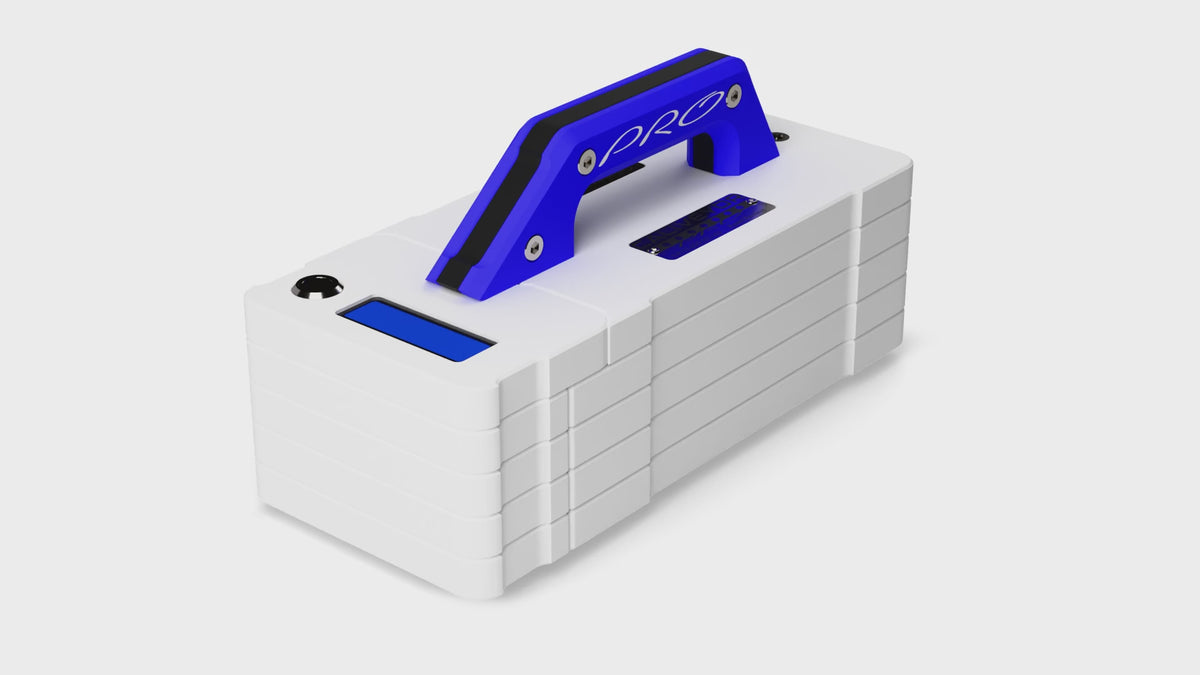

Caliveyor® PRO in detail

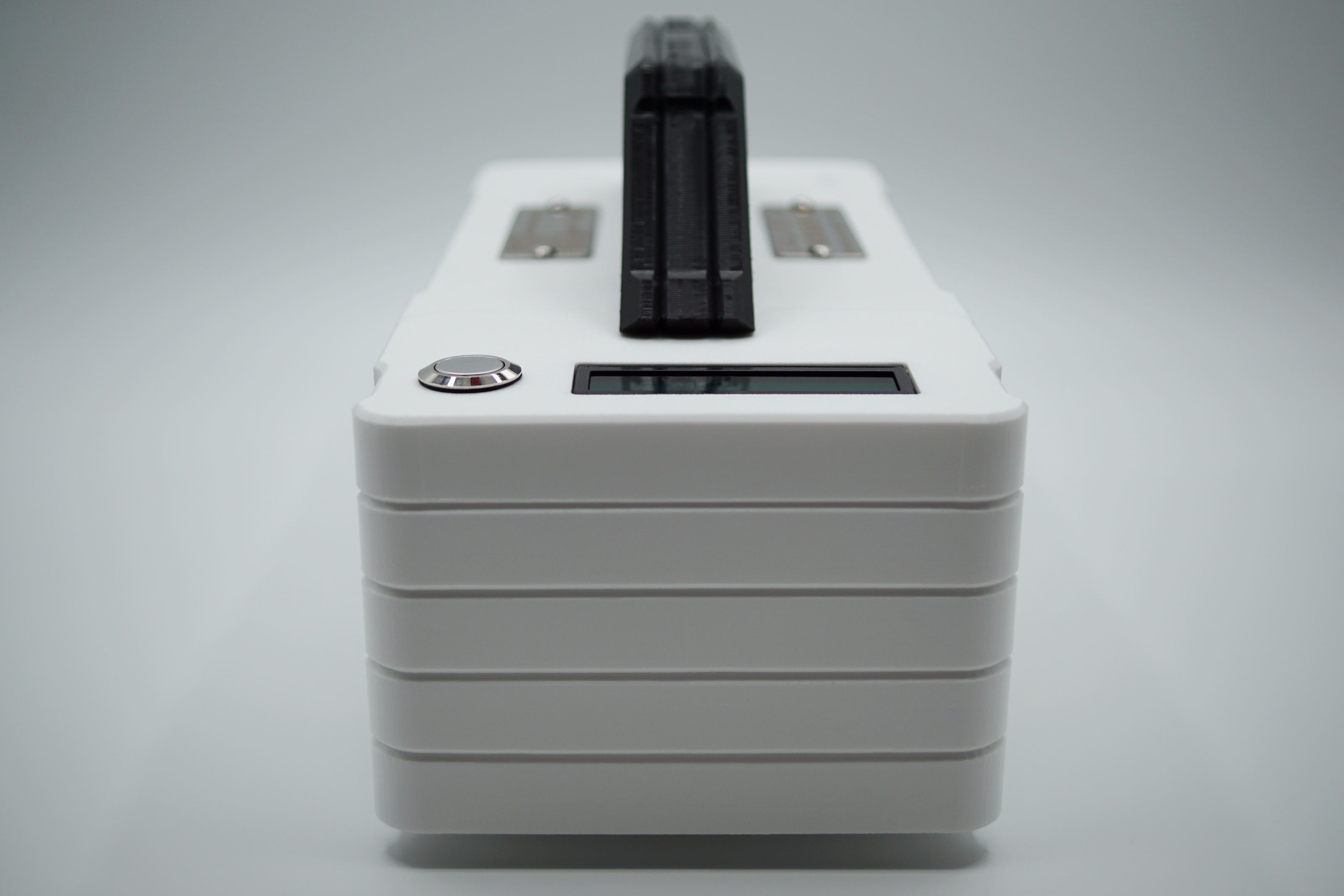

Built for the shop floor
No guesswork,
0.25 mm resolution.
Caliveyor PRO measures with 0.25 mm resolution; Essential offers 1 mm resolution. Calibrate belt travel distance and speed with clear, repeatable readings.

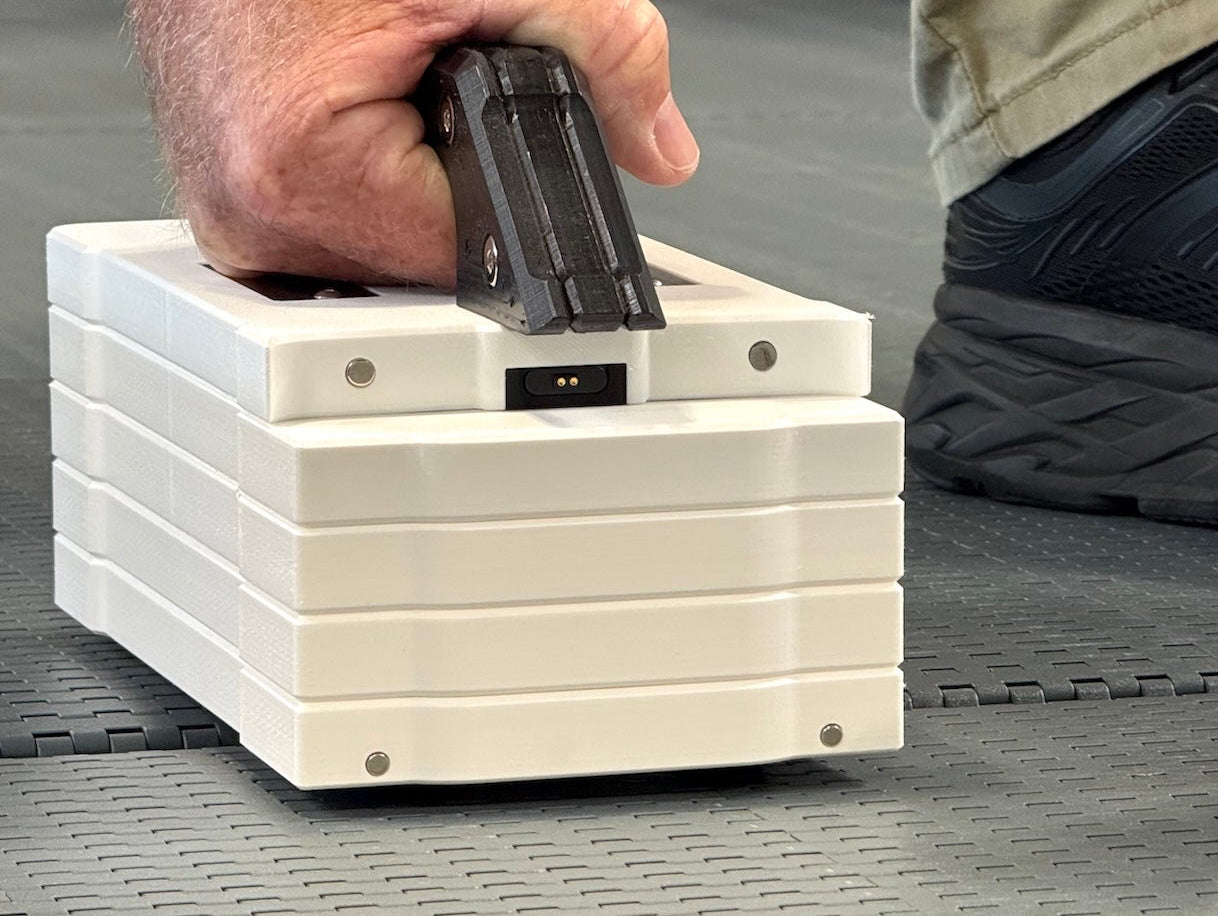

One Person Operation
A simple
one-person operation.

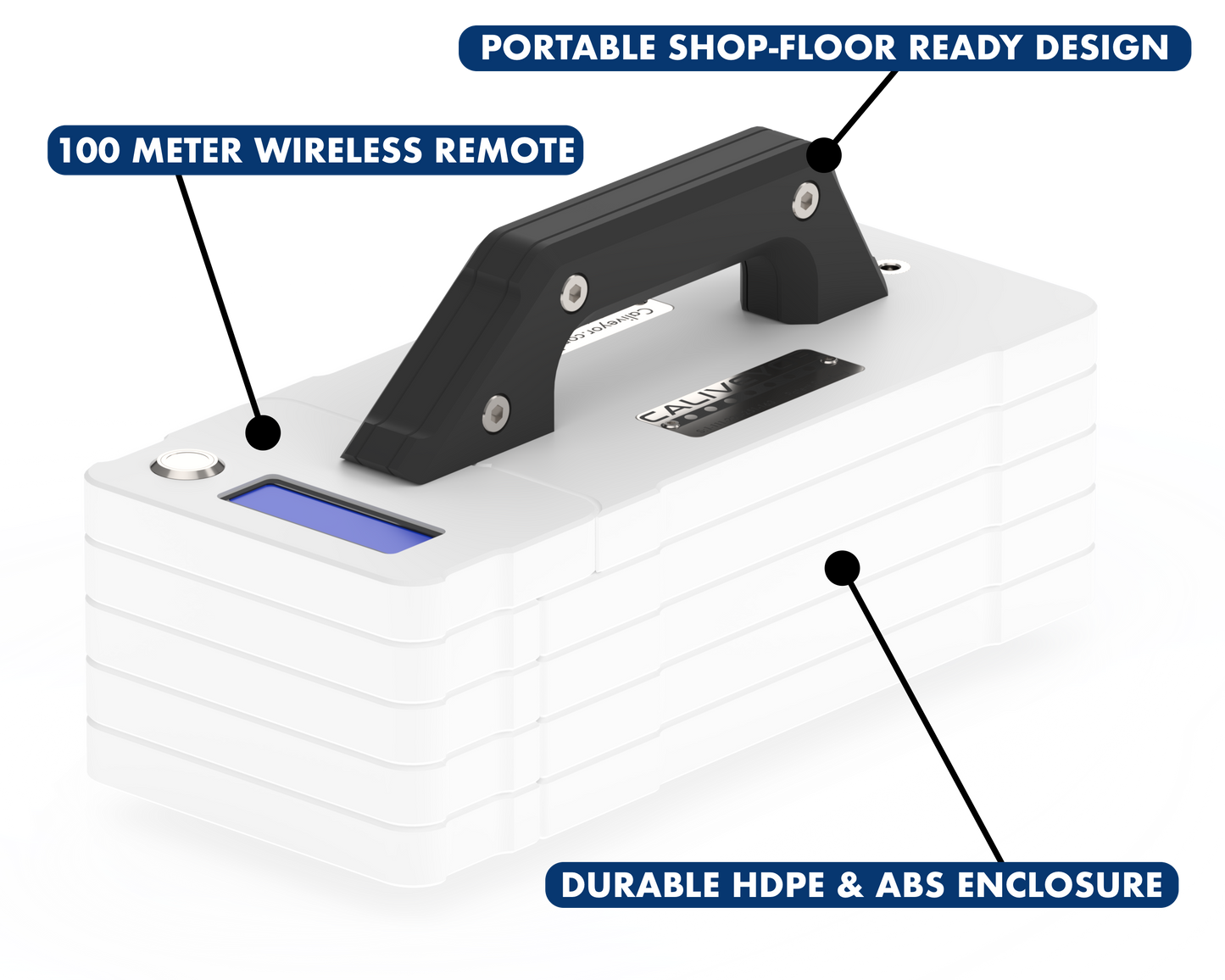

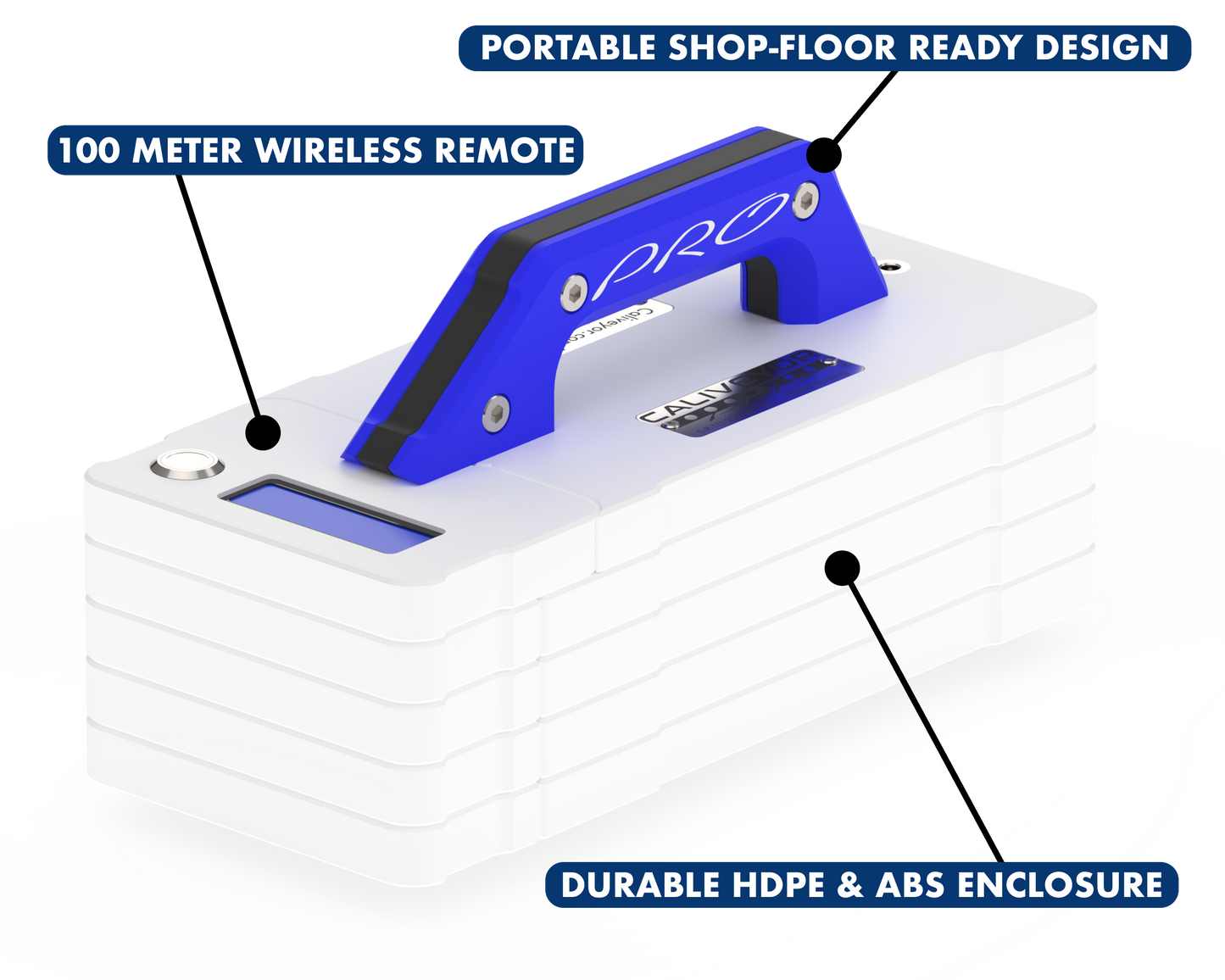

Transmission Range: 100 meter wireless range.
Save Time & Money
Reduce downtime.
Experience up to an 85% reduction in time needed for typical maintenance procedures, giving your team a boost in efficiency.
Let customers speak for us
Great, precise, and safety tool
This tool is a must for inspecting and transporting the magnets for Krones LinMots. Very precise, and allows us to safely transport the magnets. Those who have worked with them know just how dangerous they can be. This MagMule drastically drops the safety risk associated with working with these high powered magnets
Garron B
New Improvments
Just received the new Caliveyor Pro and i am very happy with it. the new improvments are great. We can now use it for more than speeds. it will be a great asset to the growing tools we use on a normal bases.
Richard Leggett
Great tool
Bought this to help speed up and simplify the process of belt calibration on our machines. The Caliveyor completely takes out the risk of of human error in reading a tape measurer and saves tons of time not having to go back and forth to reset your marker for measurements. Very accurate tool and seems to be well built.
B. Woods
Awesome tool.
This tool took a job that was time consuming and aggravating to quick and easy. It is easy to use and very accurate. The connection range is far enough to reach from all three infeed conveyors to the hmi and the screen is well lit and easy to read. Definitely makes things easier. Highly recommended!
Matthew Johnson
Accurate and Reliable
Phenomenal tool to check conveyor calibration. Far easier than using a tape measure and tape, much faster as well. Tool is also very durable, which is important in a manufacturing environment. Highly recommend.
Nicholas Lia
Saves time and money
Always been kind of a hassle at work calibrating our conveyors. It would usually take two people with measuring tape and means to mark the conveyor. Limited on the distance you had to measure then calculate plus the lack of accuracy the Calibration would tend to be a little off by the time we were through. This causes additional wear and tear over time on your conveyors which results in more parts and downtime for repairs. With the caliveyor I am able to do the Calibration on my own. Setup is a breeze plus I can run conveyors for longer more accurate measurements which results in less strain on the belts and longer lifespan of the belts as well. Simply put, if you work in manufacturing this tool is designed to make your job much easier! Love it!
Brett Rogers
Calibrating made simple and easy.
After purchasing the Calliveyor, Life was made easy, calibrating belts, hands-free, measurement, tool, easy, set up wireless digital screen, hands-down, the best tool for an industrial manufacturing tool box! no more using tape and tape measures for belt calibrations. Thank you for my amazing purchase
Alan Johnson
Compare Caliveyor models
PRO measures full belt length. Compare measurements over time to monitor belt stretch.
| Specs & kit |

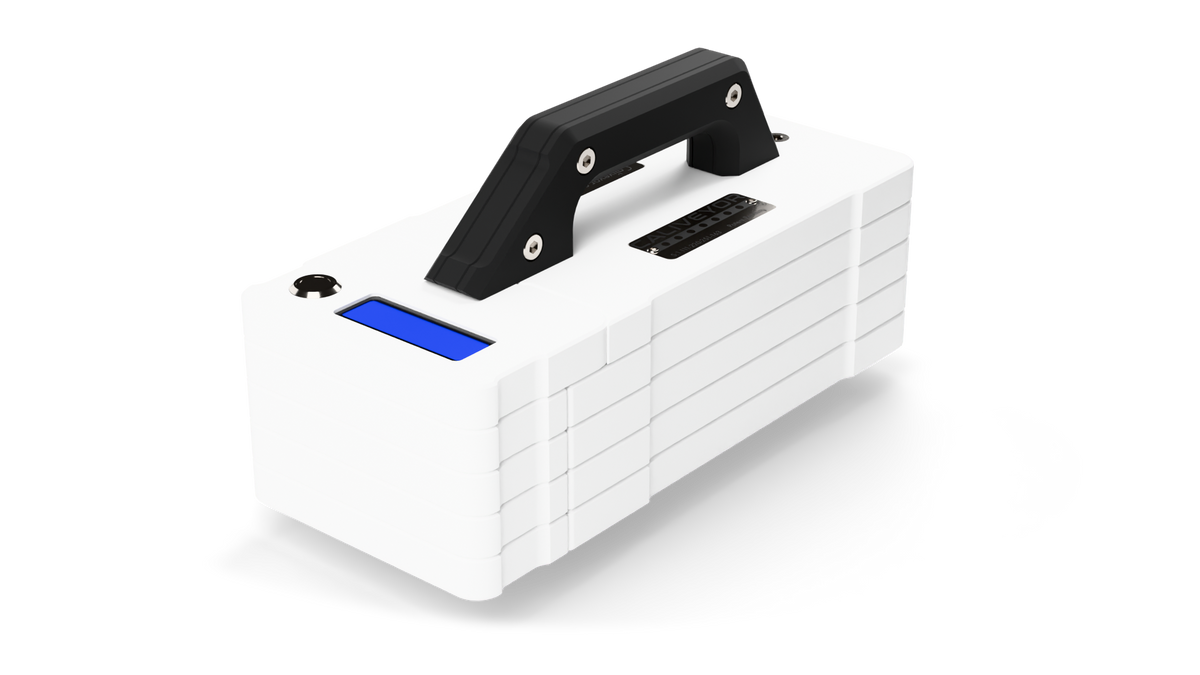

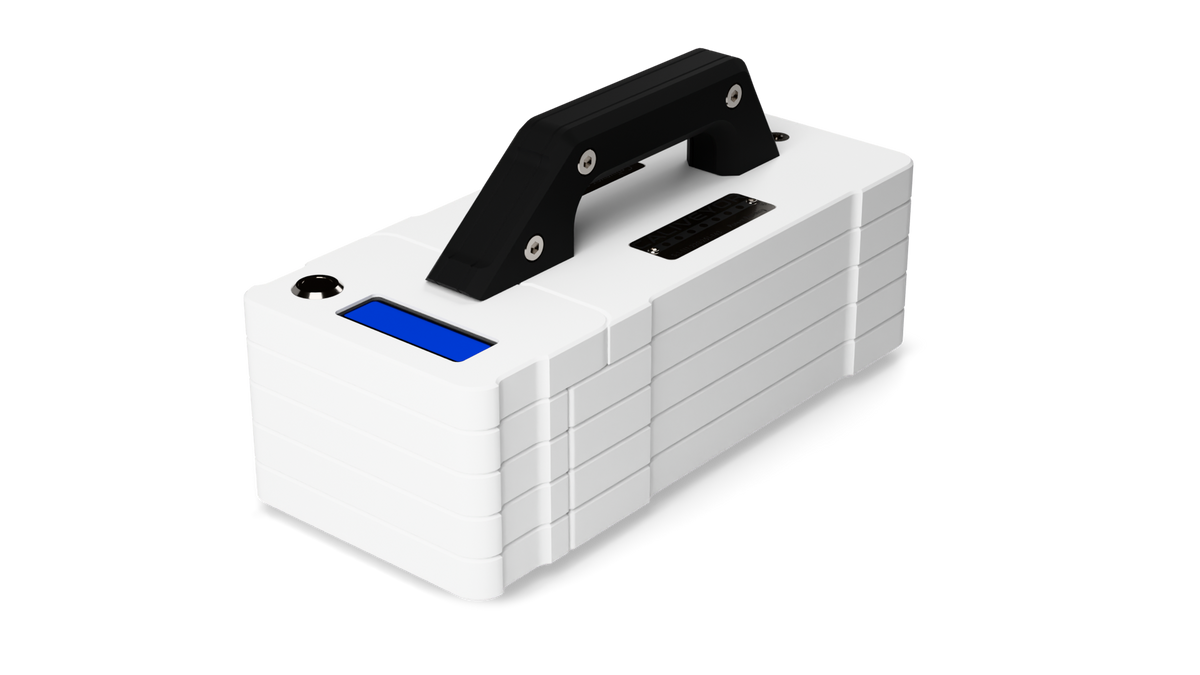

EssentialTravel distance & speed calibration
2,099.99 USD
View full details
|

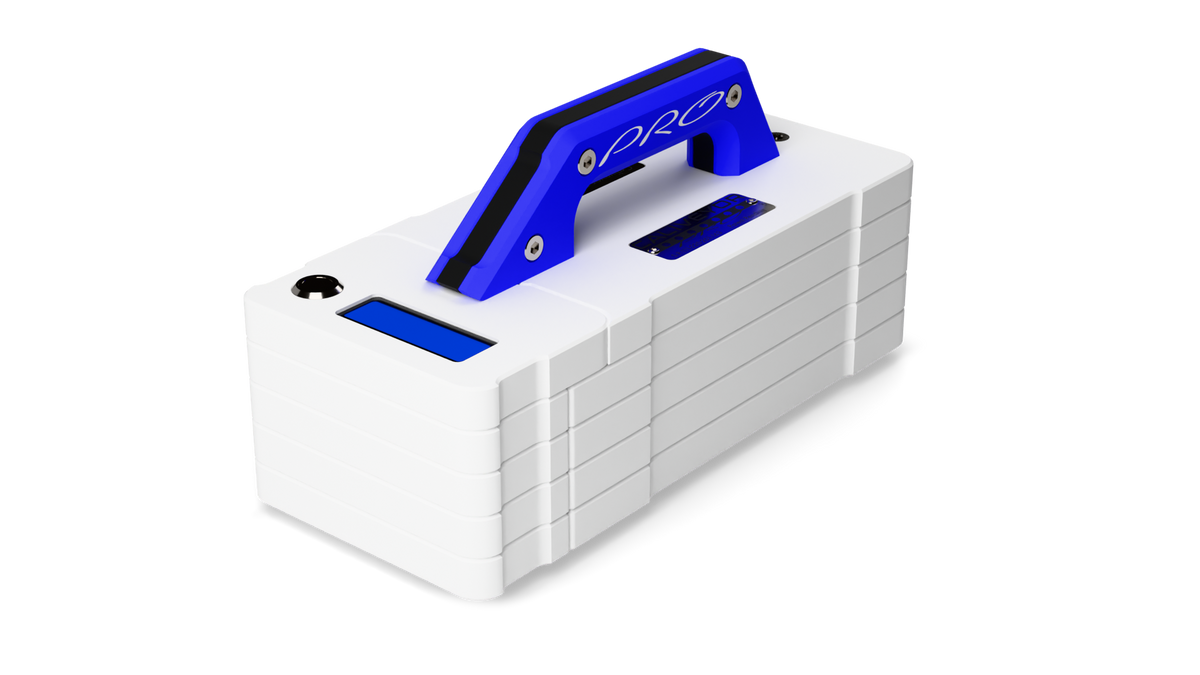

PROFull belt length measurement
2,999.99 USD
View full details
|
|---|---|---|
| Full belt length measurement | — | Included |
| Measurement precision | 1 mm resolution | 0.25 mm resolution |
| HMI remote adapter | Optional accessory | Free on request |
| Reflective tape | — | Included |
| Maximum measured speed | Up to 2500 mm/sec | Up to 2500 mm/sec |
| Wireless range | 100 m | 100 m |

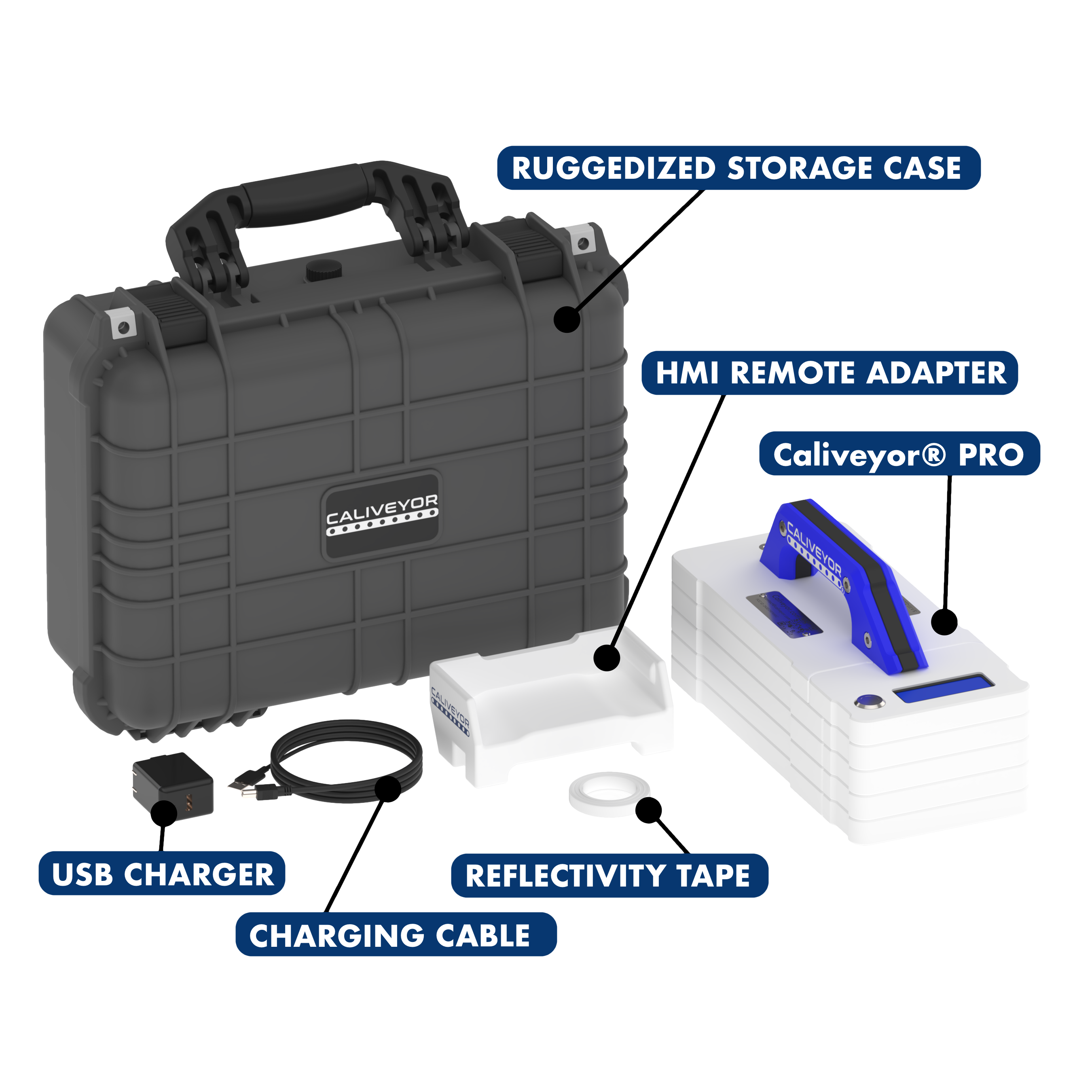

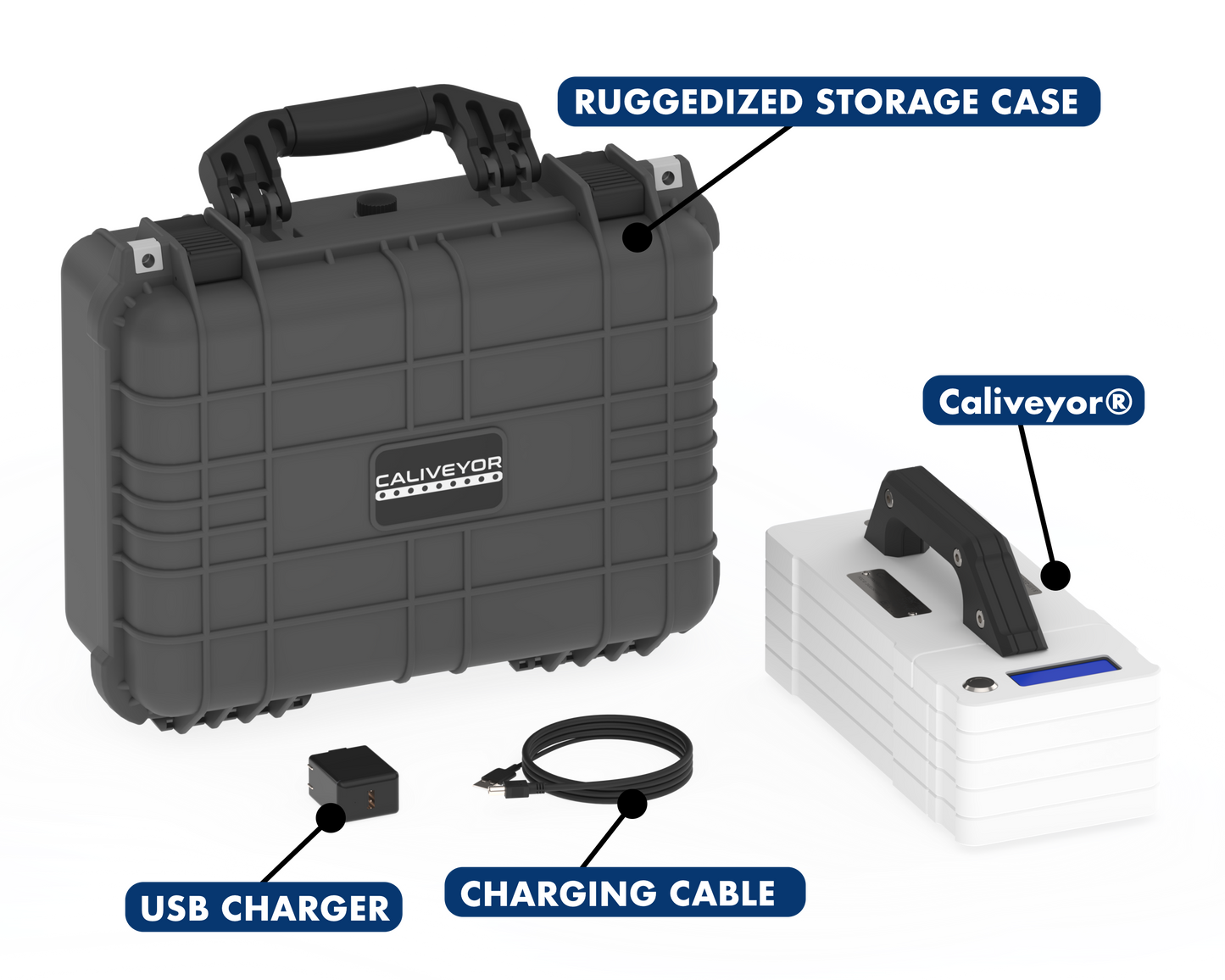

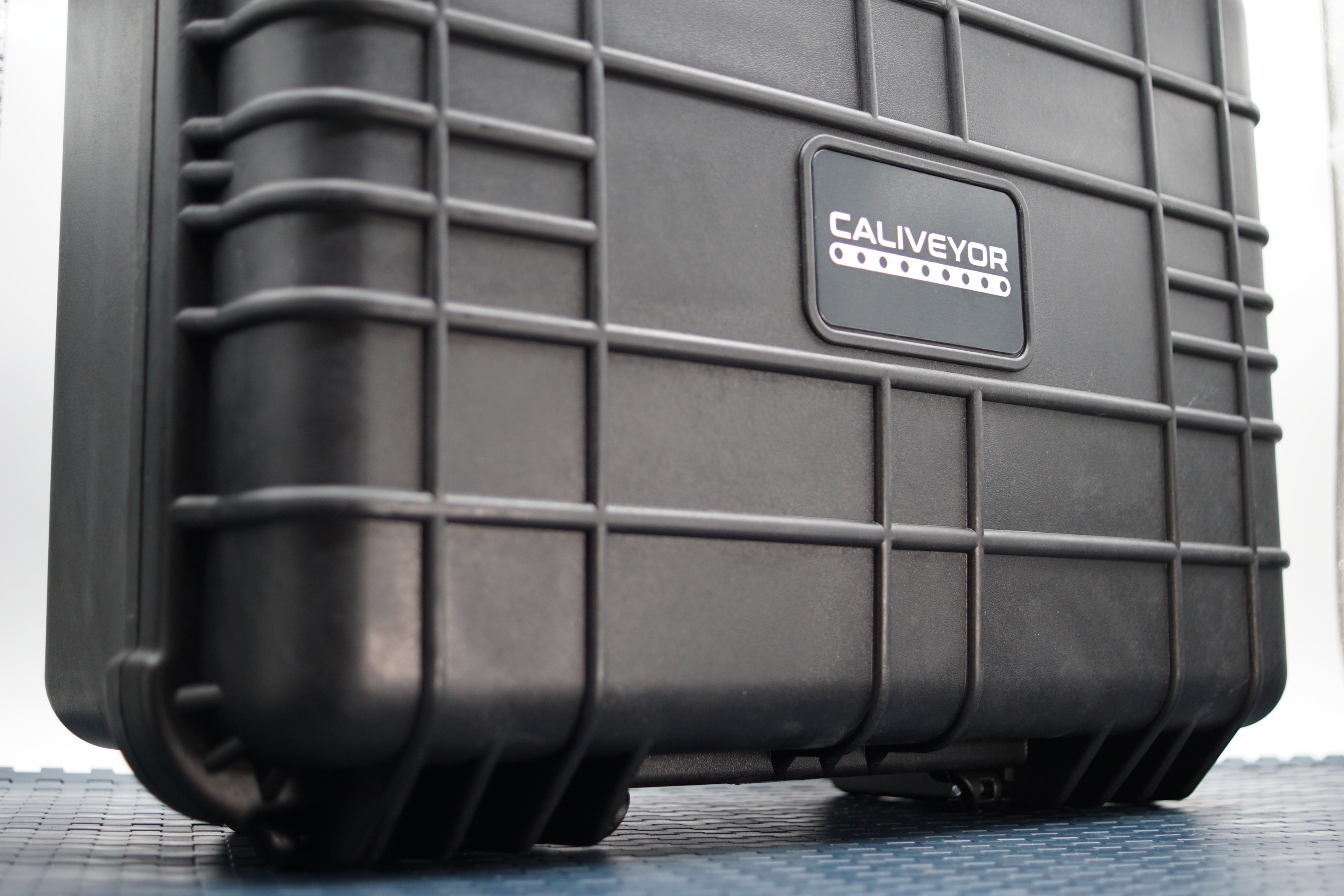

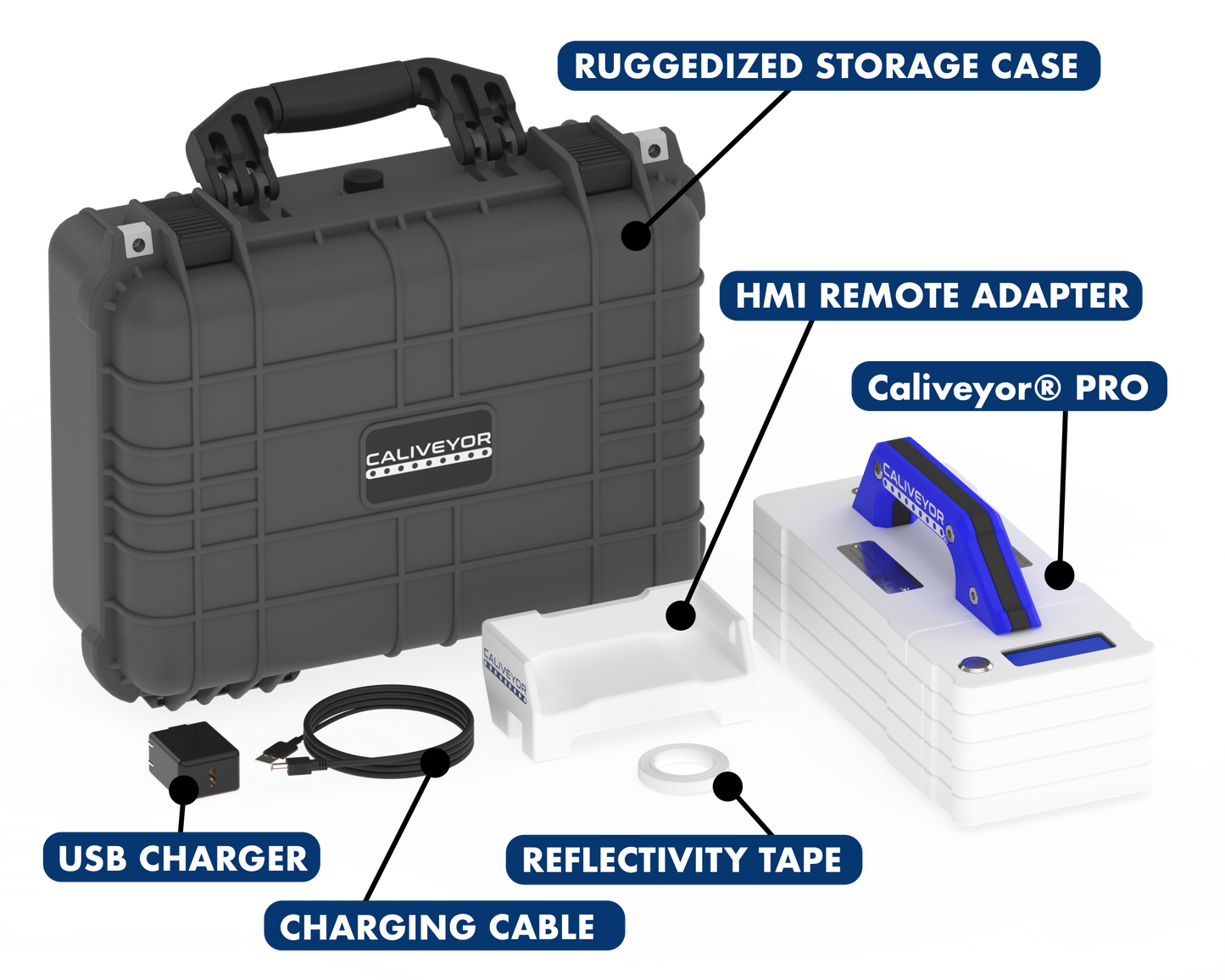

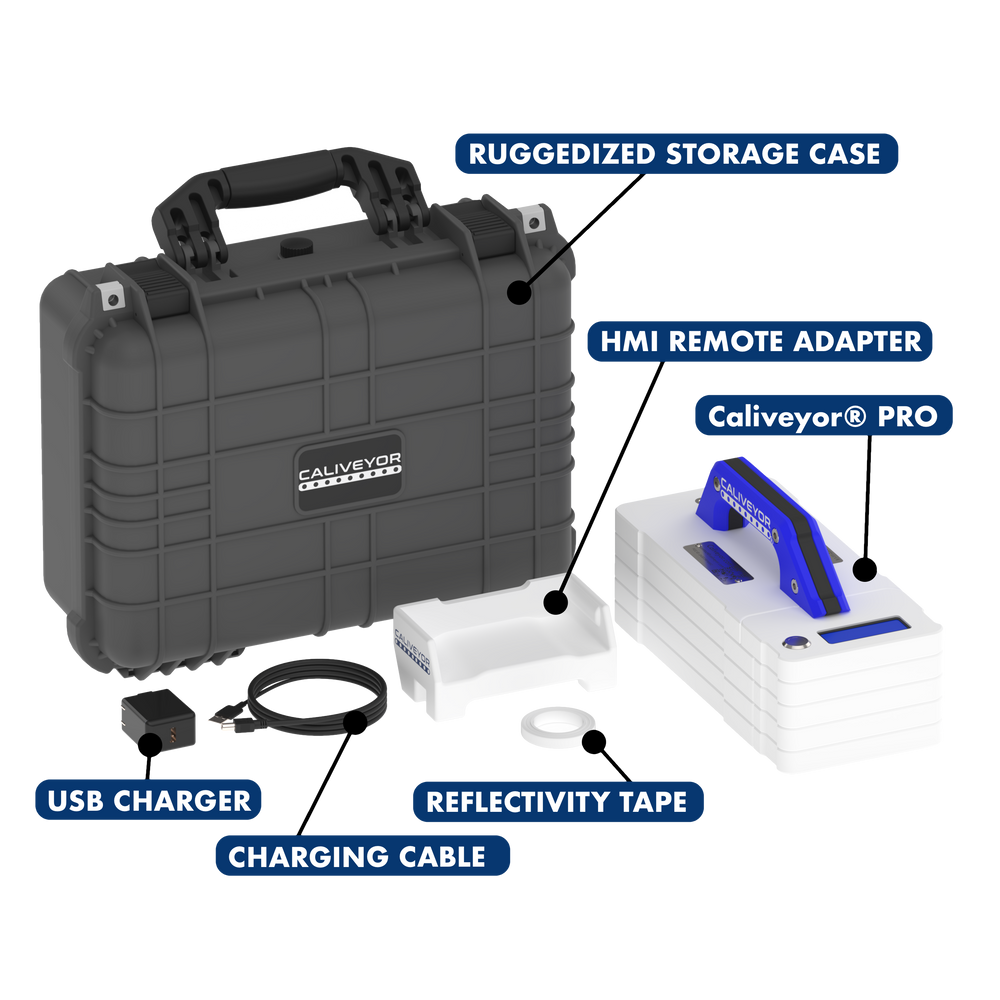

| Protective case, charger & manuals | Included | Included |
Both models include a 3-year warranty and a 60-day money-back guarantee.
See if Caliveyor is right for you. Check Compatibility
Risk free on-site trial
See the Caliveyor in action.
Request a 30-day trial unit.
Risk free on-site trial • No upfront purchase required • Buy it if you love it, return it if you don’t.
(We think you will LOVE IT though.)
What problem are you trying to solve?
How do I measure conveyor belt speed and travel distance?
Caliveyor Essential and PRO display live conveyor belt speed and distance traveled on a wireless remote. With the tool positioned on the belt, you can monitor measurements while the belt runs—from up to 100 meters away.
Both models are useful for packaging-line commissioning, VFD setup, palletizer infeed calibration, and conveyor troubleshooting.
Essential: 1 mm measurement resolution
PRO: 0.25 mm measurement resolution
Both models measure belt speeds up to 2,500 mm/sec.
How can I monitor conveyor belt stretch over time?
Caliveyor PRO measures the full length of a conveyor belt by adhering a piece of reflective tape to the belt to be measured (which is removed after the measurement). Record measurements and compare them over time to monitor changes in belt length.
Ideally you repeat measurements under consistent conditions, then keep and compare the readings in your maintenance records. Choose PRO for full belt-length measurement capability; both PRO and Essential measure travel distance and speed.
How can I keep a Gaylord liner from coming out during dumping?

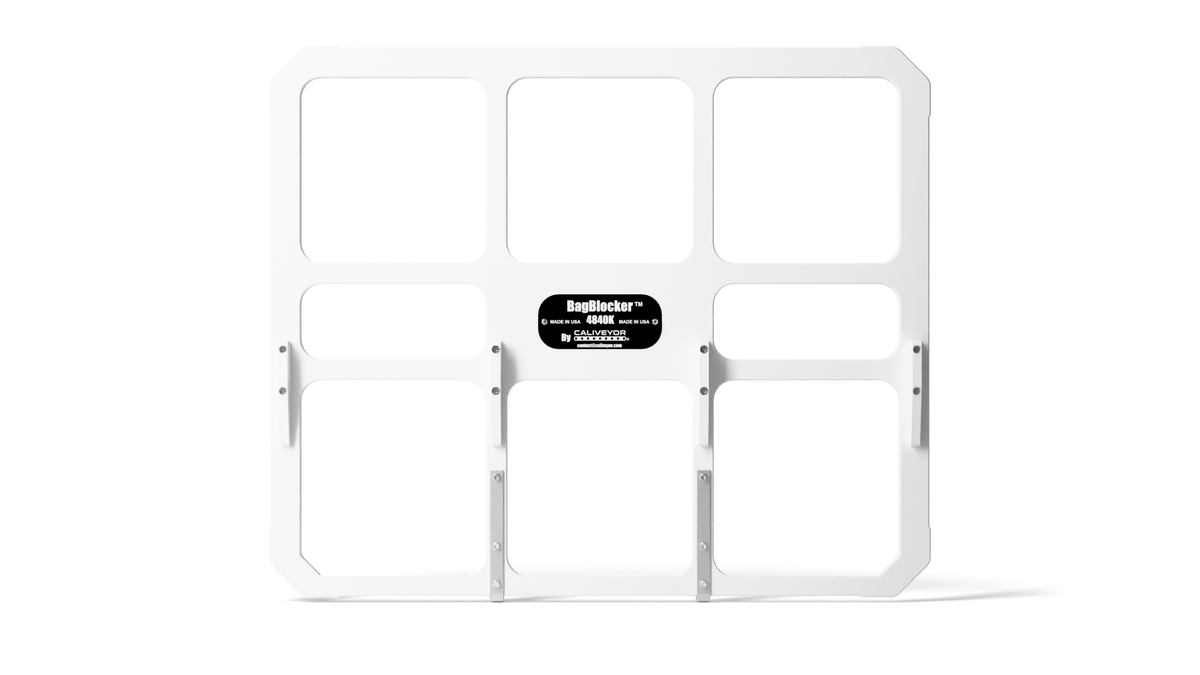

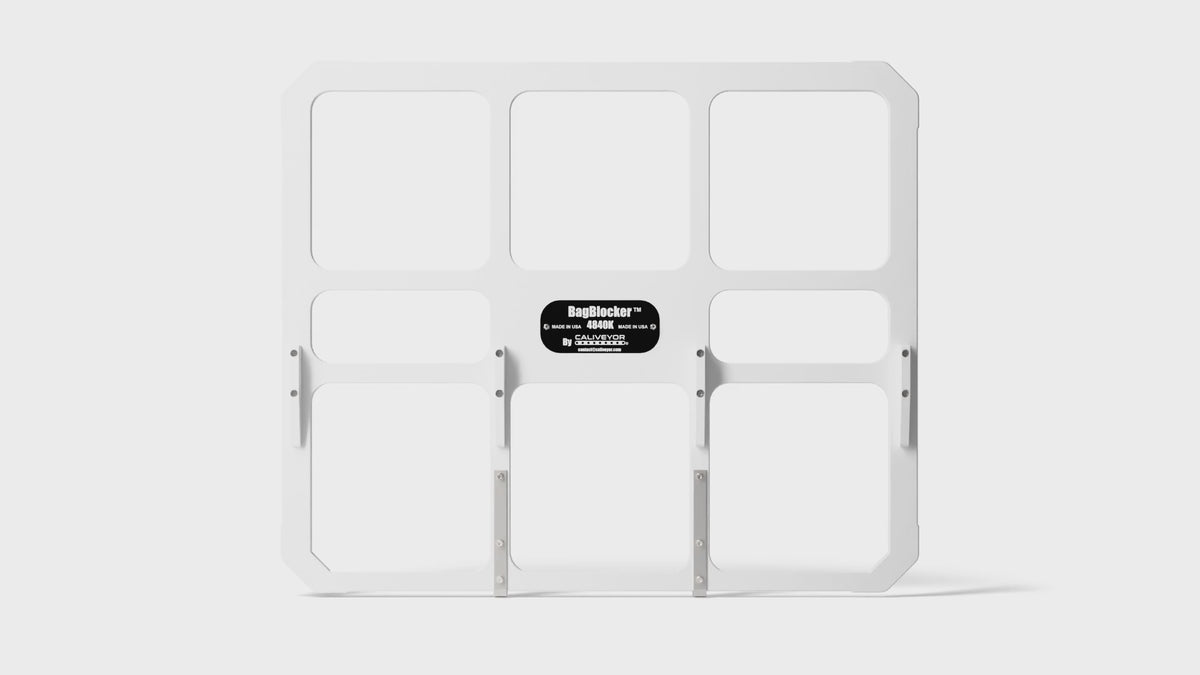

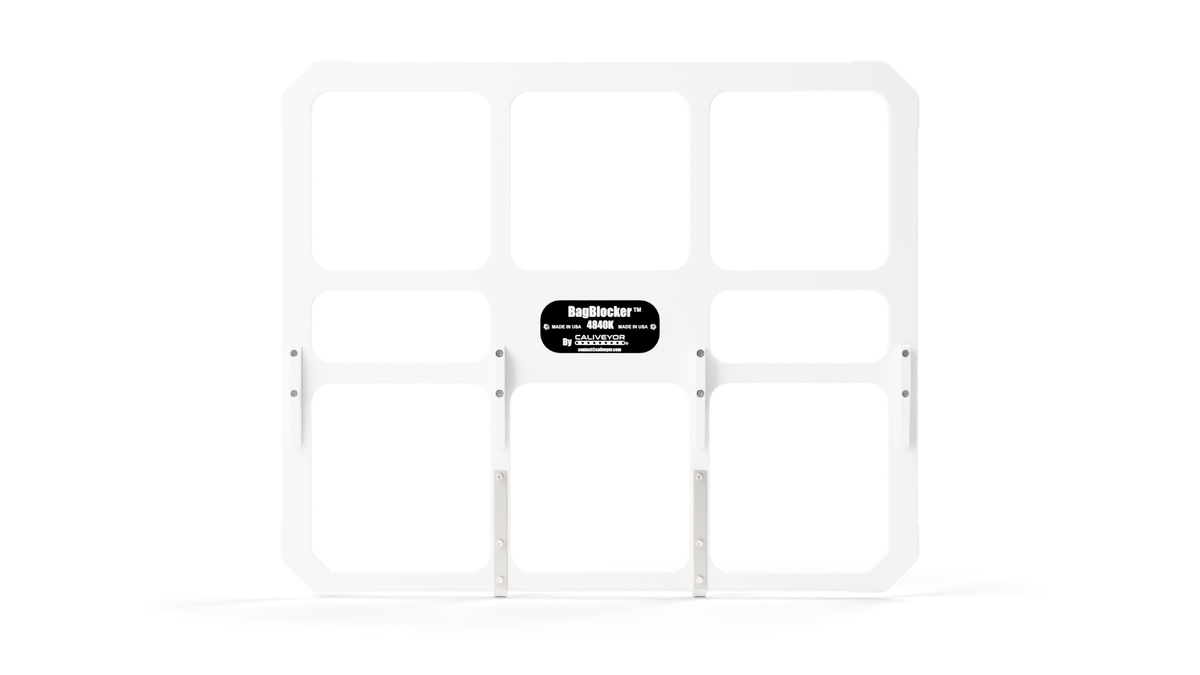

BagBlocker Lids retain the liner in a Gaylord bulk bin during preform tipping and dumping operations. The lid retention system holds the liner in place to help keep it out of downstream equipment. Its easy for one person to use, and is put into place in seconds.
Choose the variation that fits your equipment. The product page lists Krones and TEC dumper options, a TEC option for larger preforms, and a separate static retention option for filling.
What tool can help inspect and carry blow molding magnetic rods?

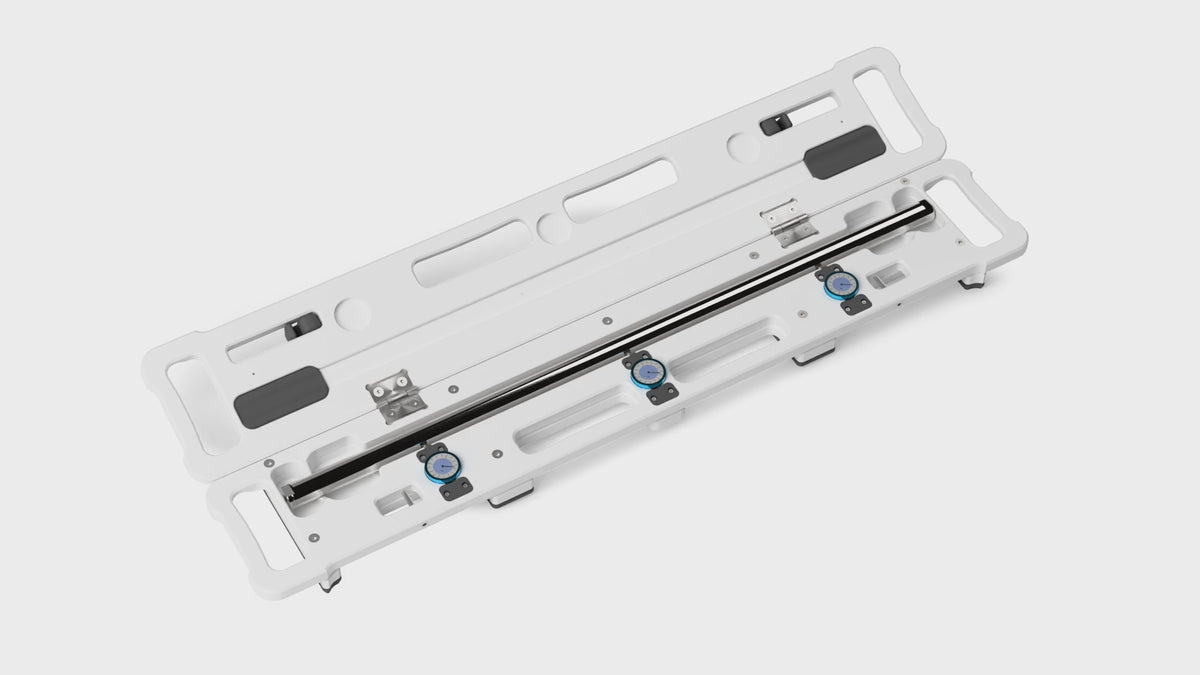

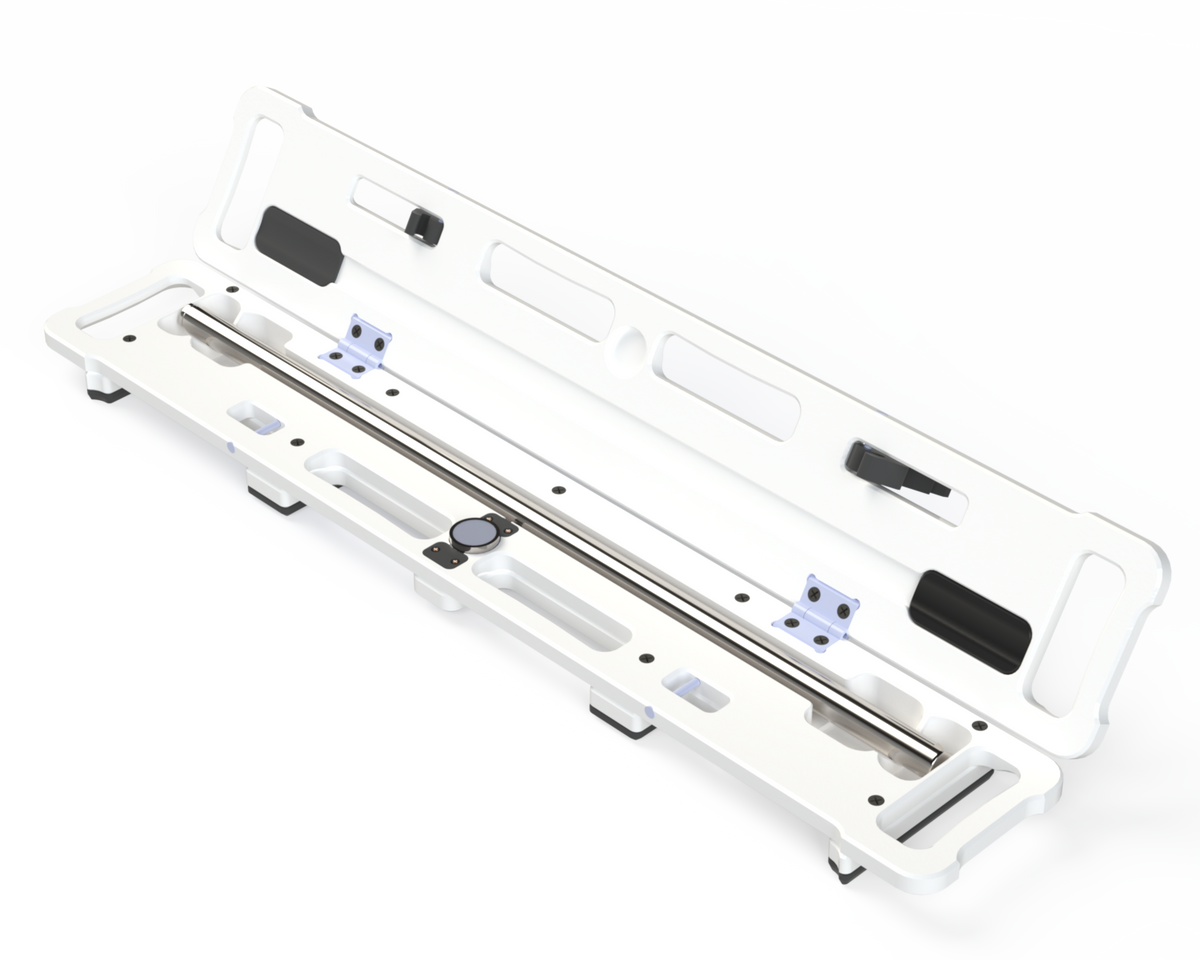

MagMule supports inspection and transport of magnetic stretch rods used in blow molding machines. It combines non-magnetic construction, carrying handles, locking latches, and dial indicator options for checking out-of-round deviations.
The listed indicator resolution is 0.01 mm. The tool is designed for Krones magnetic rods and similar variants; confirm your rod dimensions and application before choosing a configuration.
How can I align the posts on a robotic handle applicator?

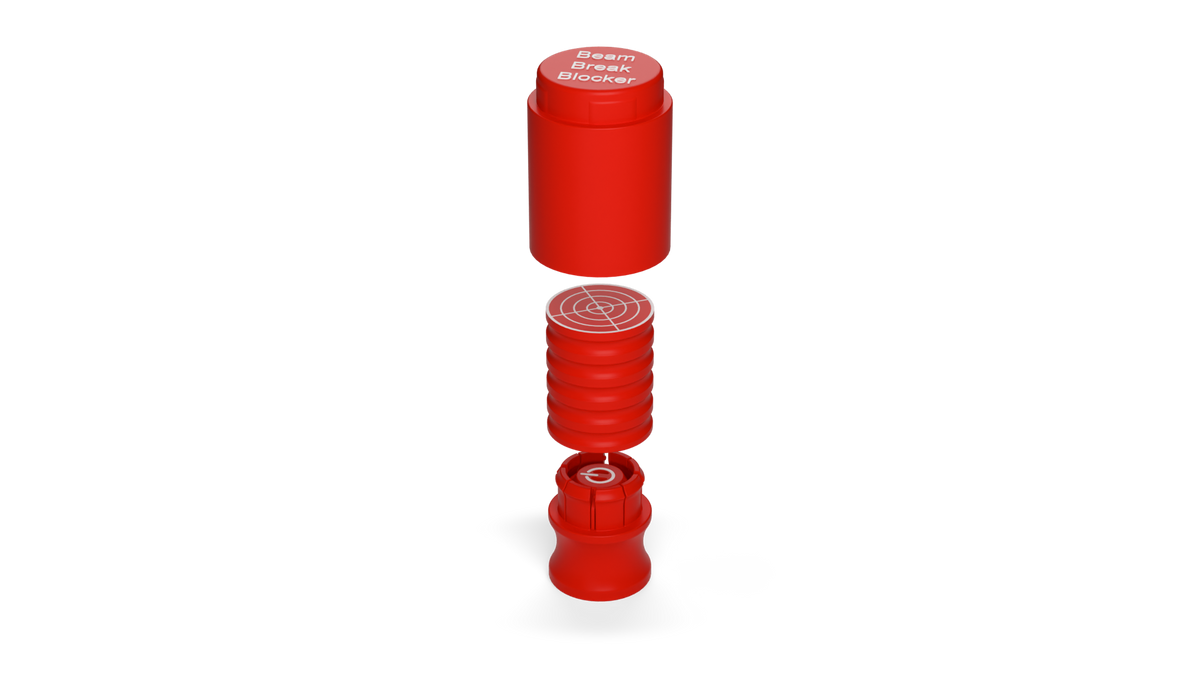

Laser Align 3-in-1 provides a visual reference between a robotic handle applicator arm and its posts. A laser module and post target help technicians check alignment during equipment setup and maintenance.

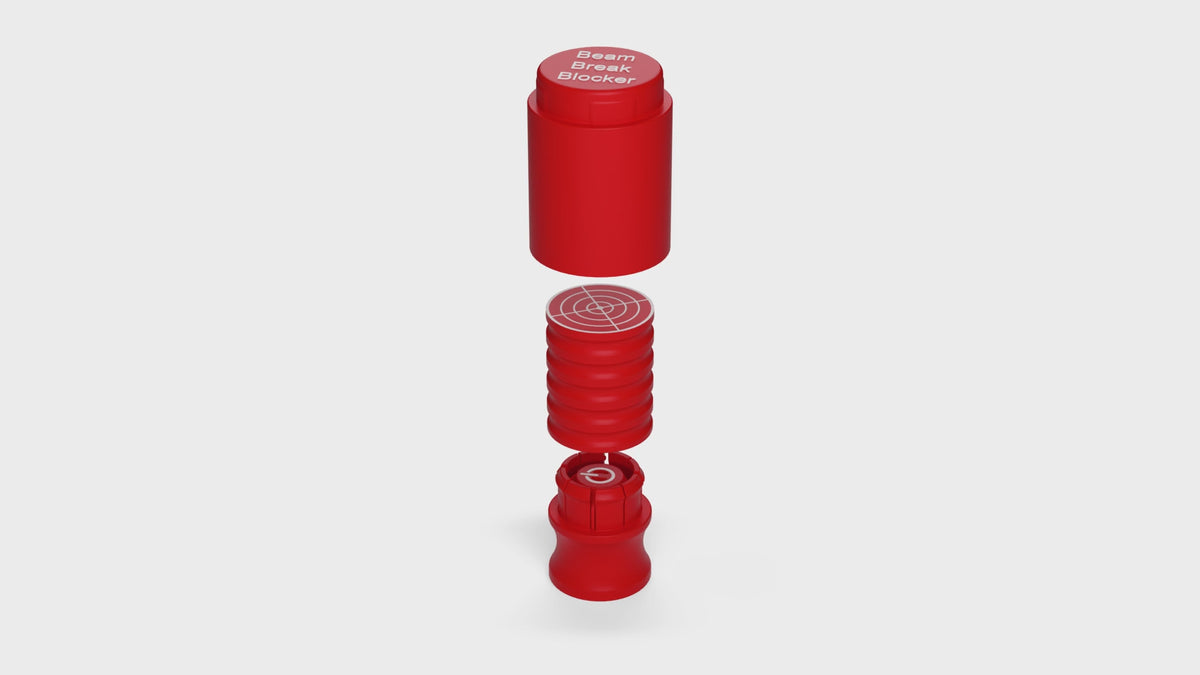

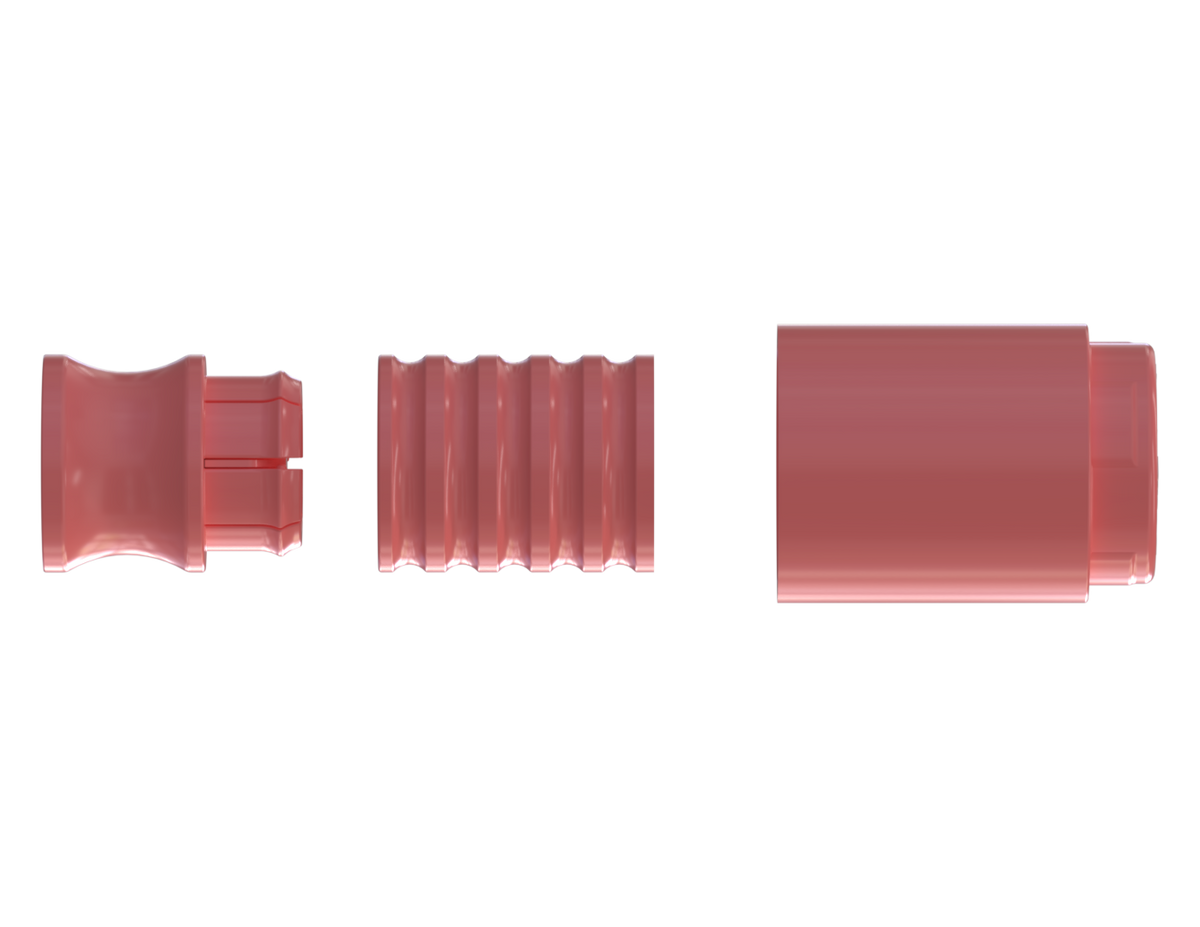

The assembled tool separates into a laser module, post alignment marker, and photo eye blocker. Check the product details and equipment fit for your specific application.
