MagMule™

MagMule™

Measure and transport magnetic rods used in blow molding machines.

1,499.99 USD
1,499.99 USD
Sale Sold out
Shipping calculated at checkout.
Dial Indicators
  • Improve Safety
  • .01mm Accuracy
  • Increase Efficiency

Product overview

The MagMule™ is our newest innovative tool that makes it significantly safer and easier to measure and transport magnetic rods used in blow molding machines. Designed with non-magnetic materials and ergonomic carrying handles, this tool accurately measures out of round deviations down to 0.01 mm, providing exceptional precision.

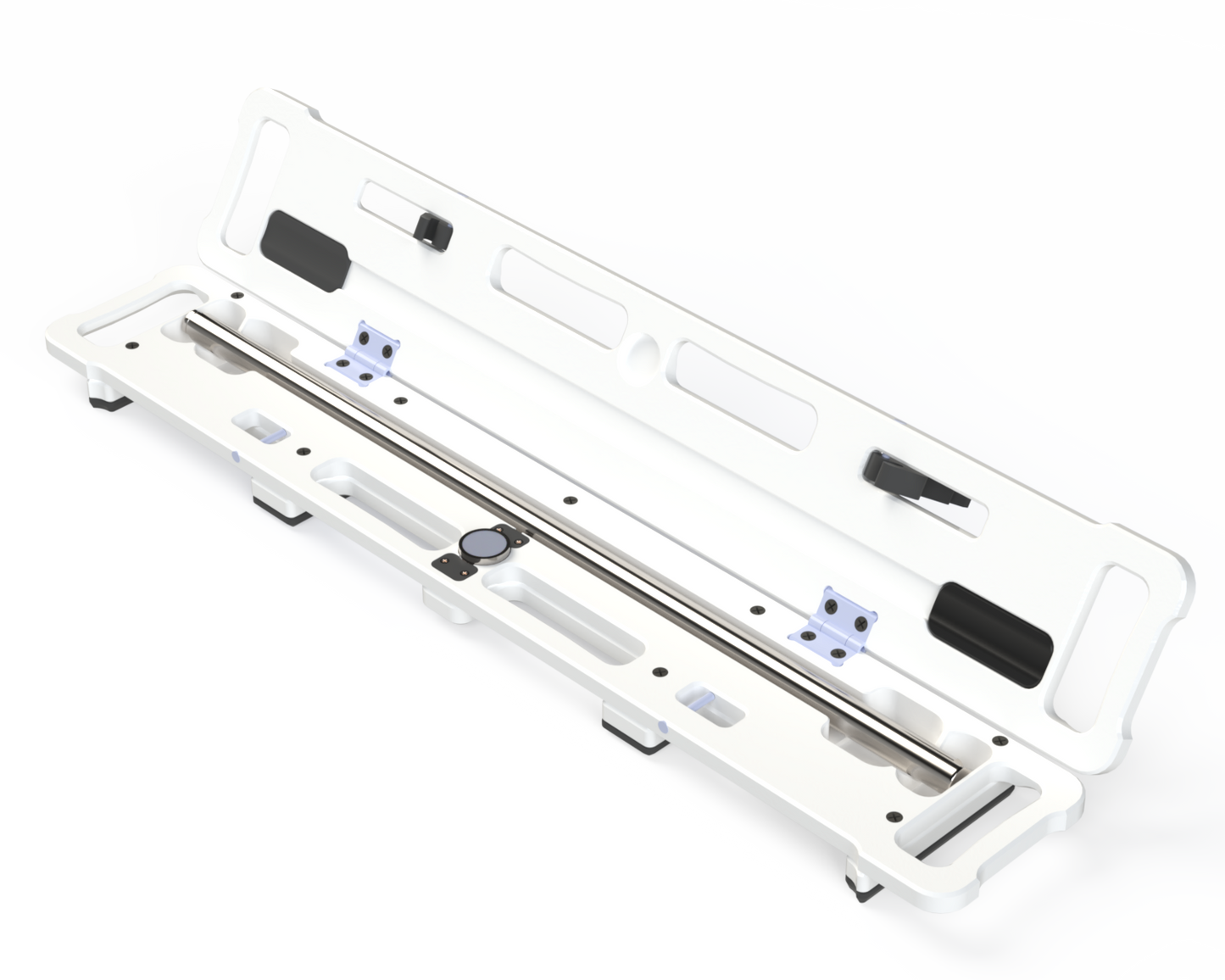

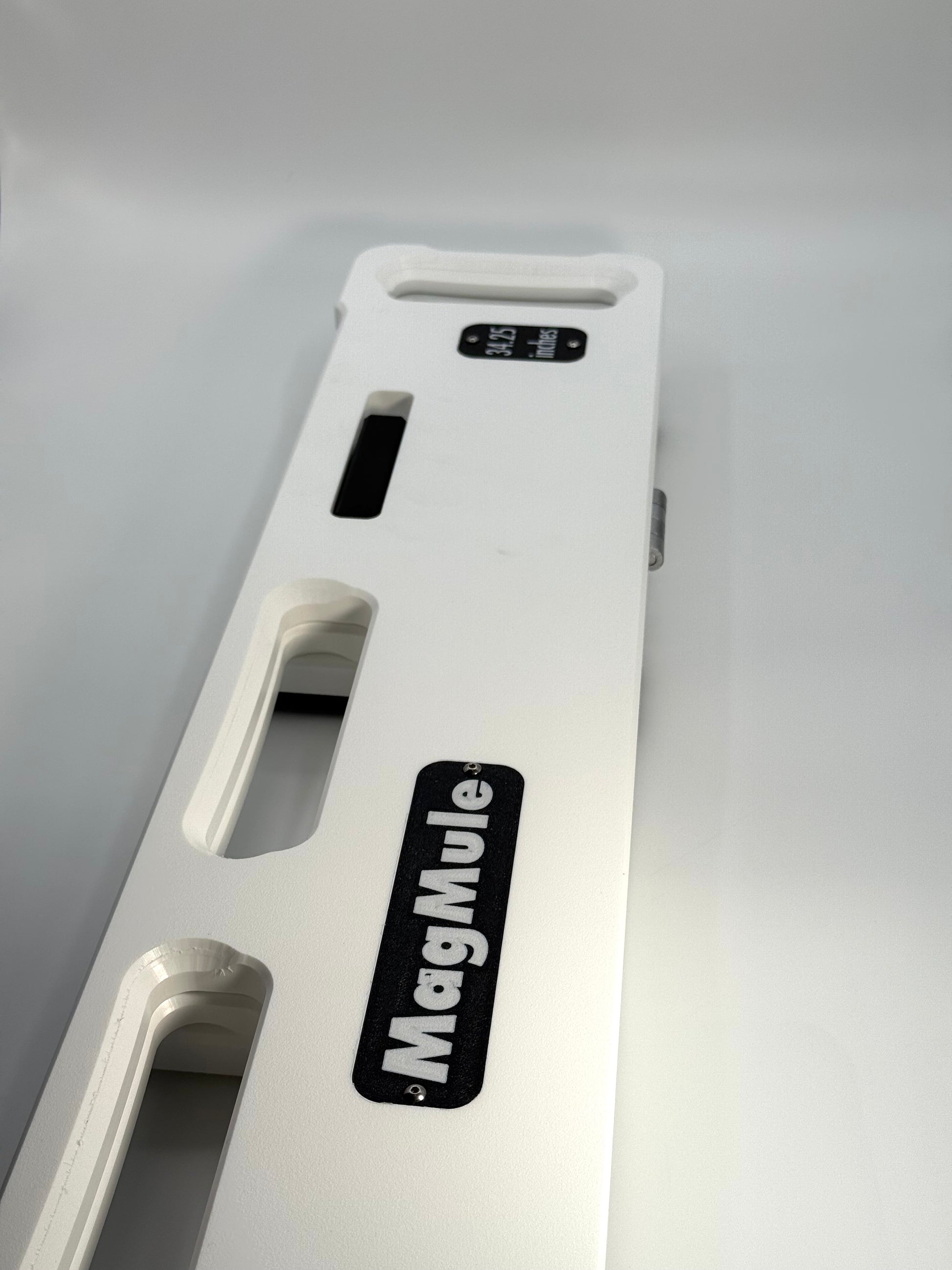

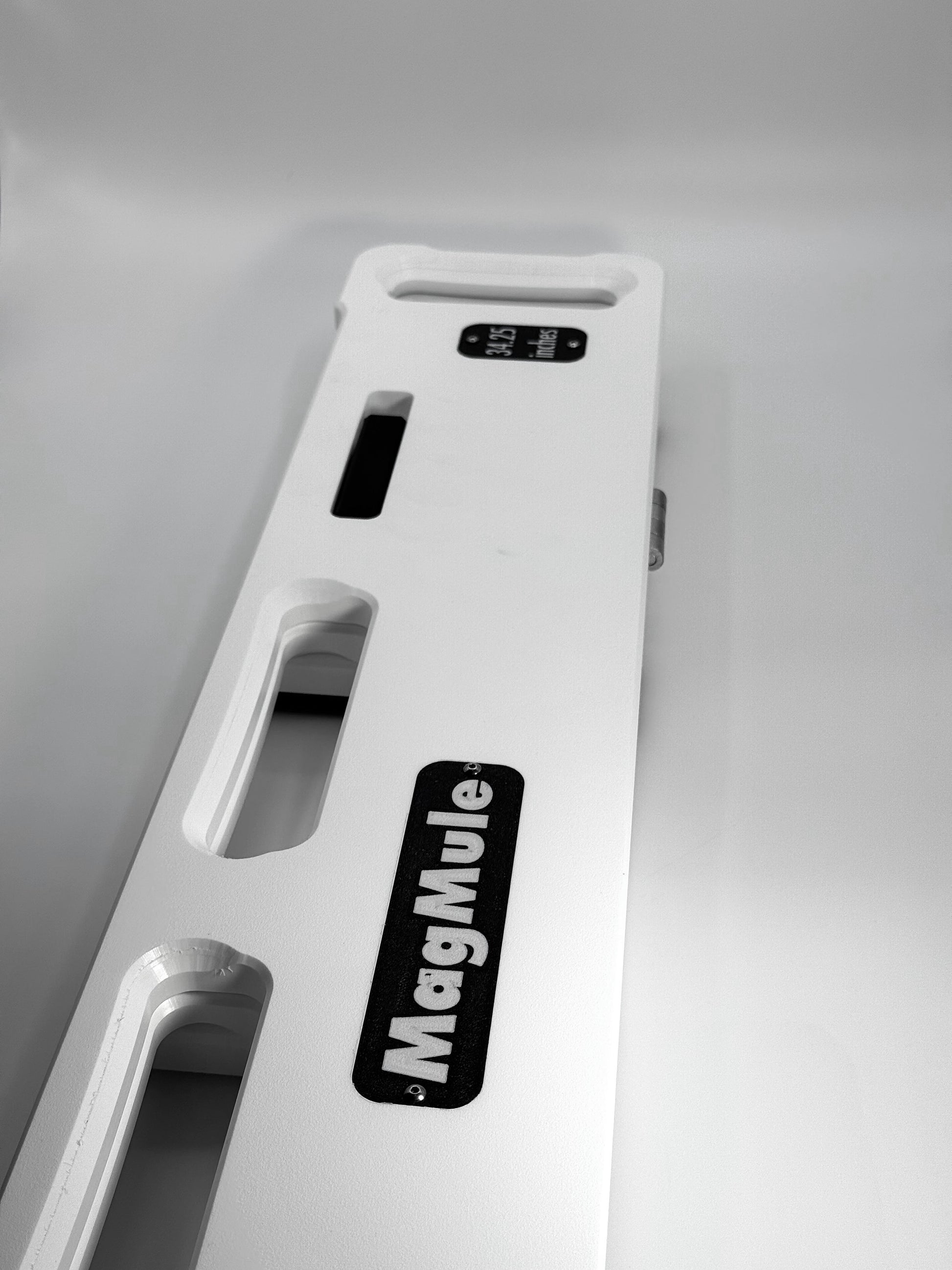

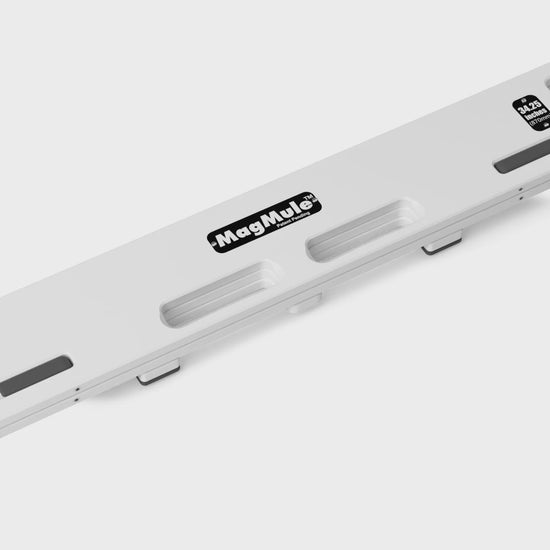

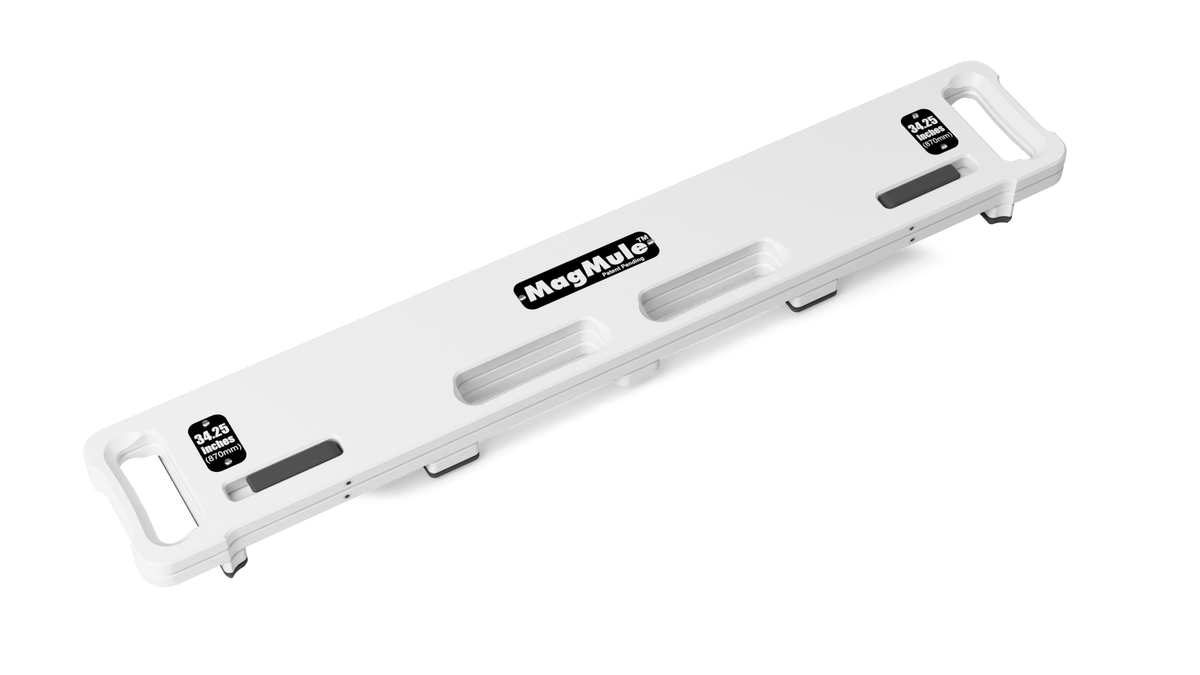

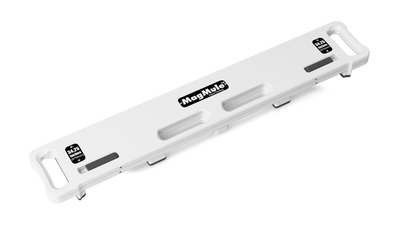

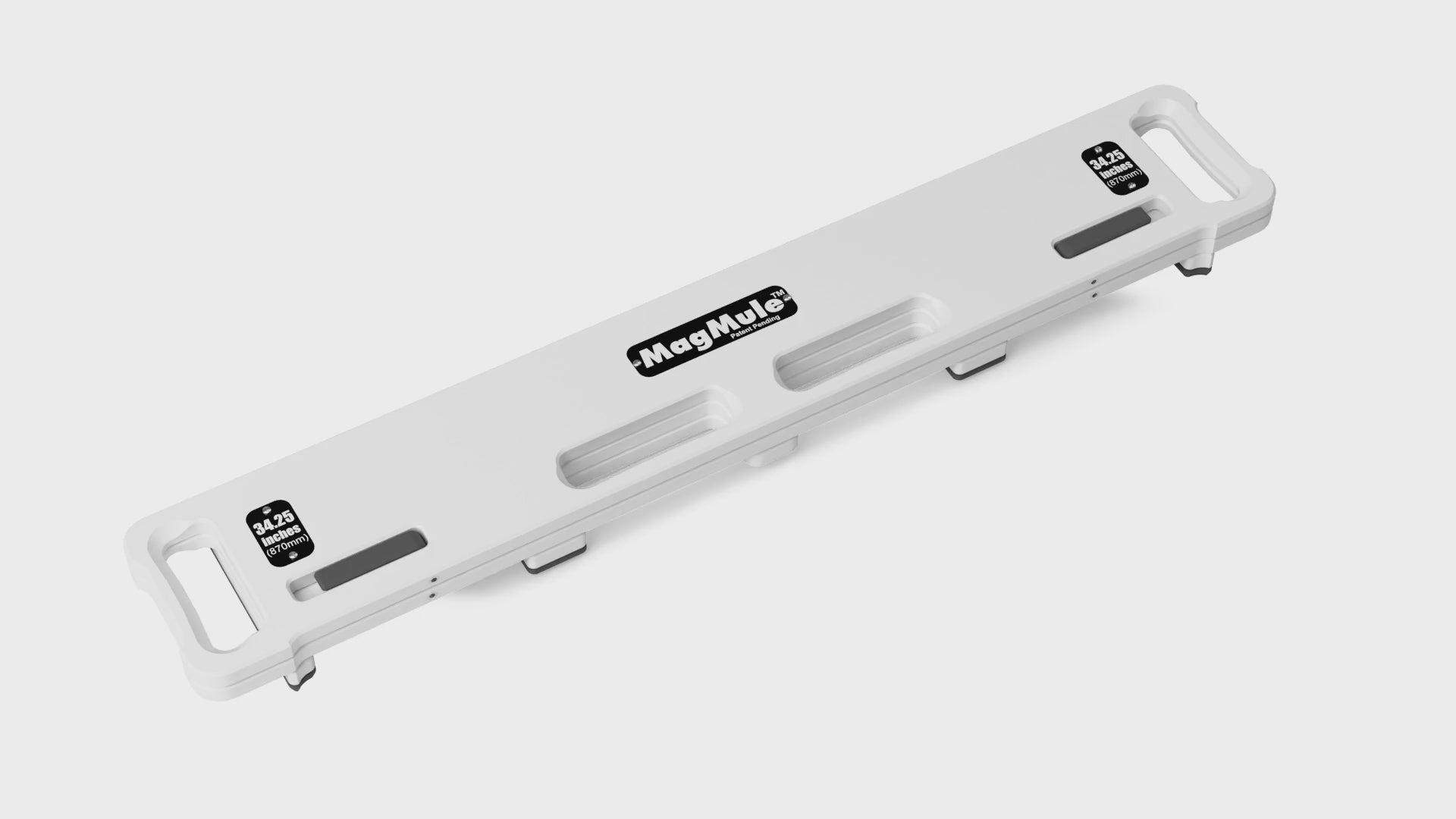

The image shown is using a 34 1/4 inch rod, the product can be customized to your needs.

Key Benefits:

  • Enhanced Safety: Safely carry magnetic rods with secure locking latches, minimizing workplace risks.
  • Precision Accuracy: Measure rod deviations with confidence, achieving precision down to 0.01 mm.
  • Ease of Use: Ergonomic design ensures comfortable and efficient transportation between locations.

Invest in the MagMule™ to improve workplace safety, measurement accuracy, and operational efficiency.

Tech specs

Deviation Measurement Precision: .01mm resolution, ensuring detection of deviations.

Construction: Enclosure crafted from durable non magnetic stainless steel, HDPE, ABS, with TPU feet to ensure non-slip grip.

Dimensions: 40 inches by 7 inches by 4 inches.

Universal Compatibility: Engineered to work with Krones machine magnetic rods and other similar variants, the MagMule is a versatile addition to any industrial setting.

The MagMule embodies state-of-the-art design, promising unparalleled performance and convenience in magnetic rod maintenance. It's more than a tool; it's an investment in efficiency and quality.

What's included?

  • Digital manual.
  • A three-year warranty.
  • 60-day money-back guarantee.
  • Same day customer support.

Actual product may vary slightly from images shown due to continuous improvement efforts.

  • Same Day Support
  • Three-Year Warranty
  • Free Shipping
View full details

Common questions

Read the magnetic stretch rod inspection guide

What maintenance task does MagMule support?

MagMule supports handling, transport, and deviation measurement for magnetic stretch rods used in blow molding machines. The rod is supported inside the case for inspection, and the case locks closed for transport.

This brings the inspection and carrying stages into one tool for maintenance and reliability teams to make this maintenance safer.

How are out-of-round deviations checked?

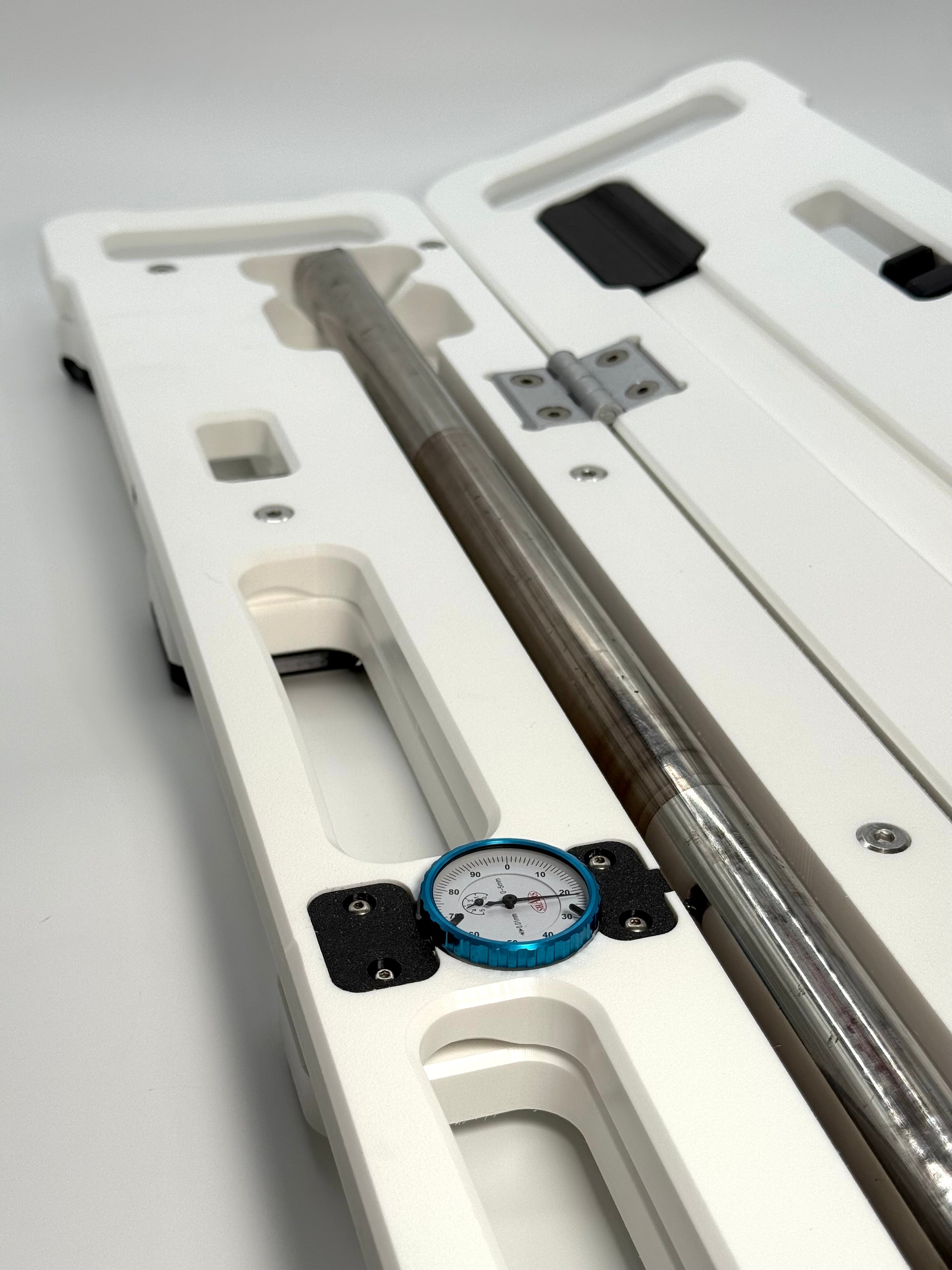

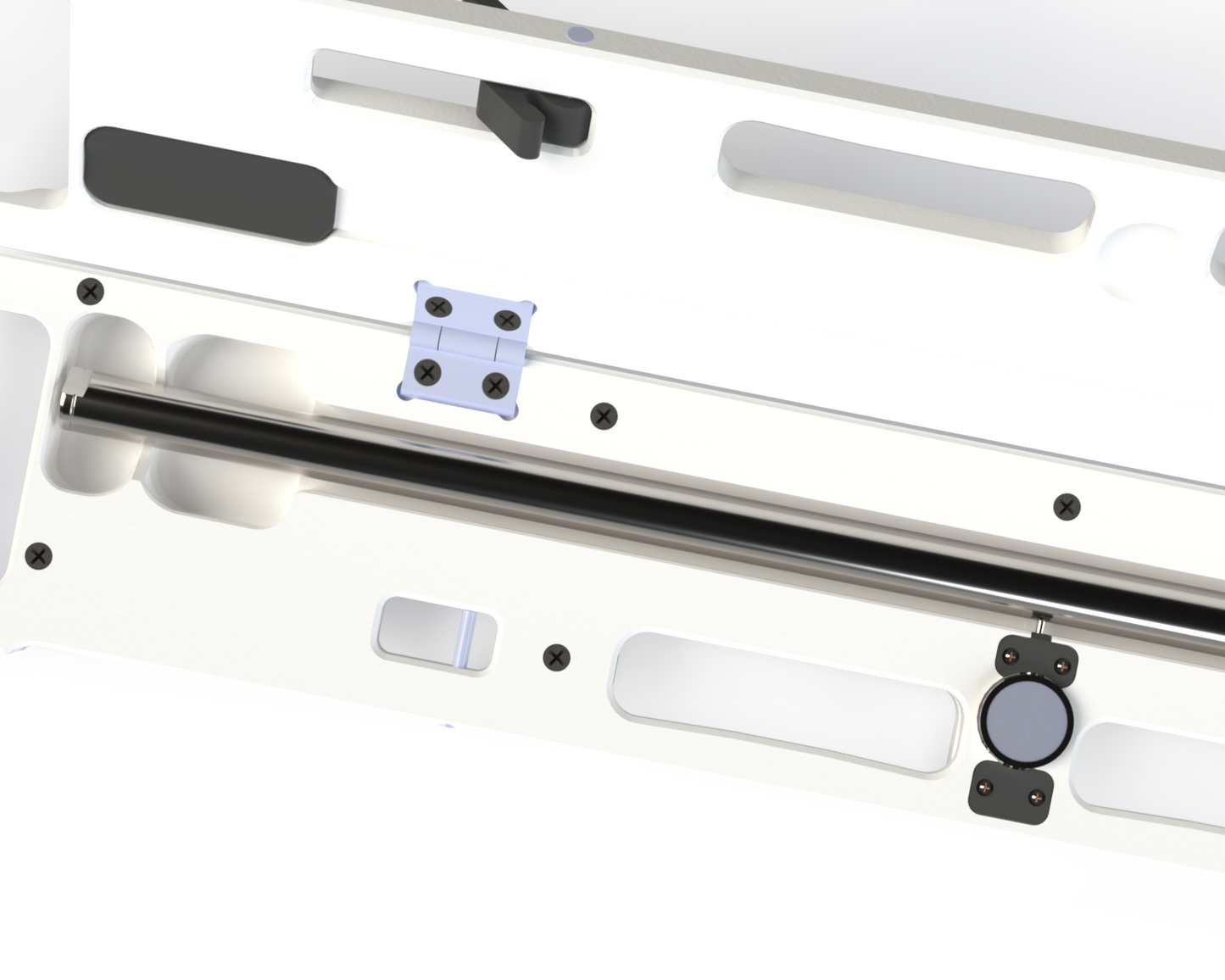

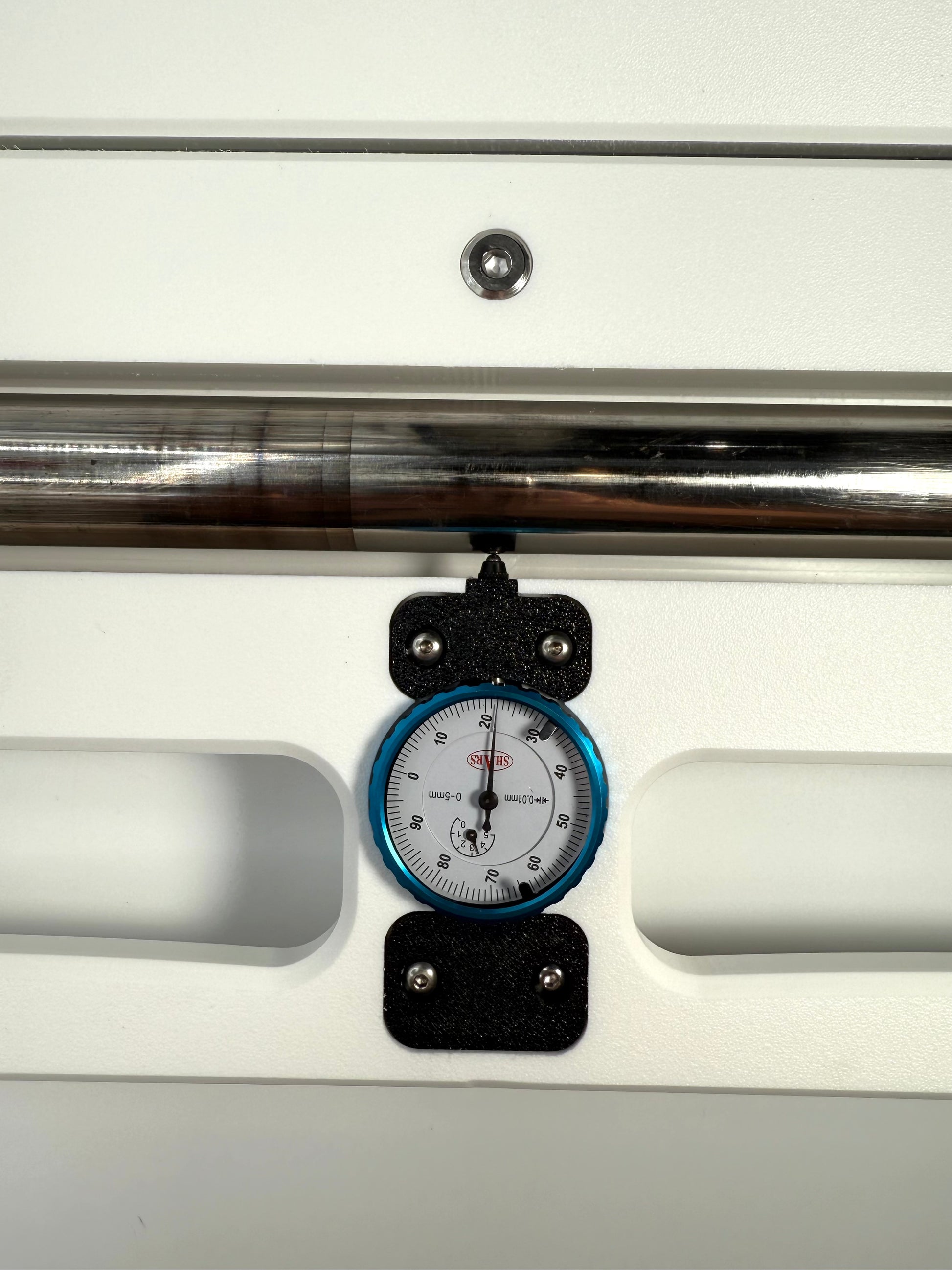

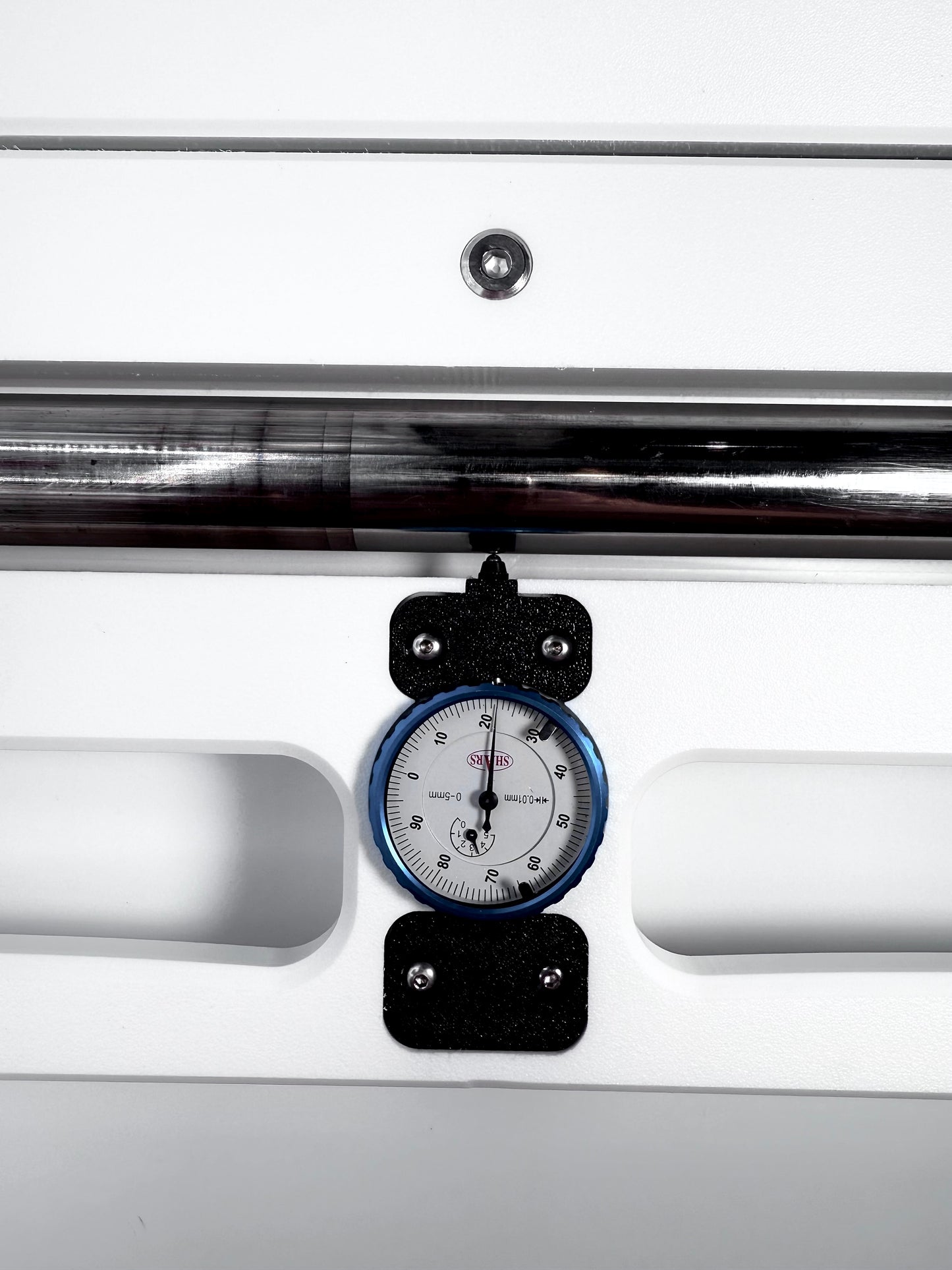

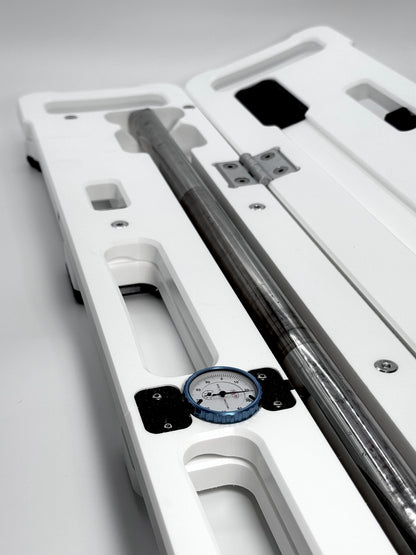

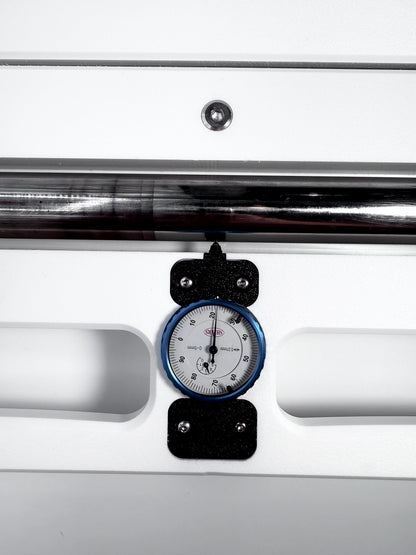

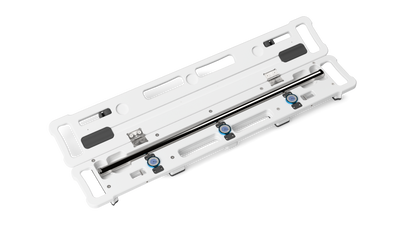

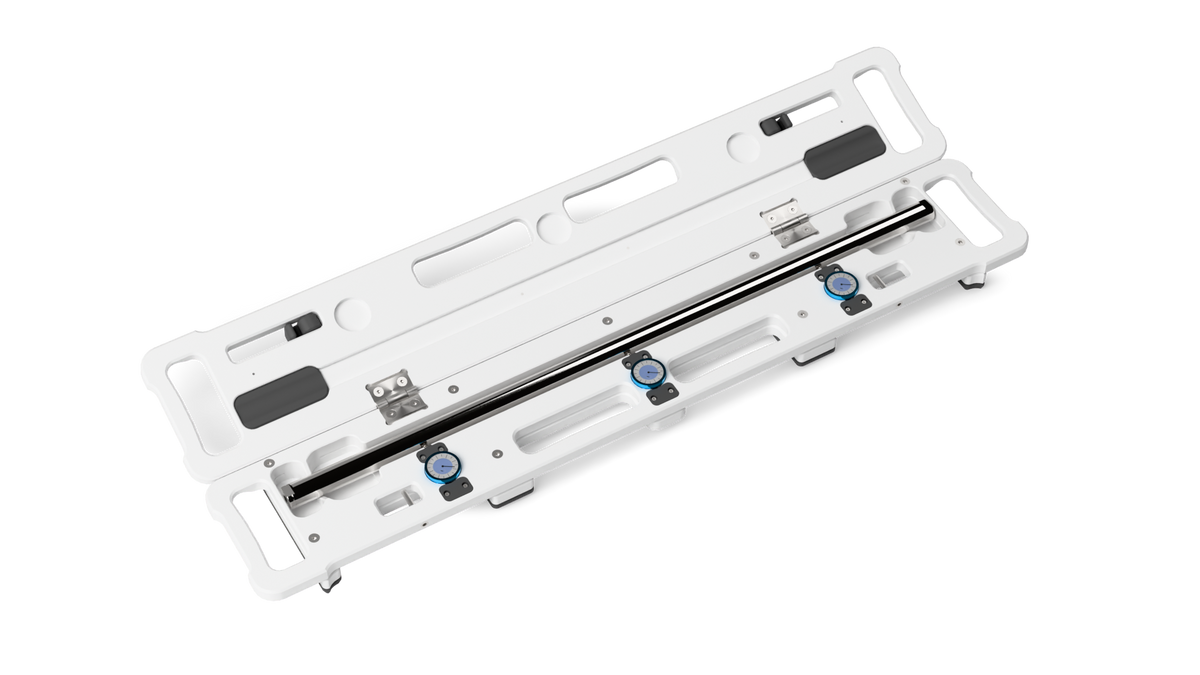

The rod is placed inside the case and supported from opposite sides within the case. The rod can then be rotated inside the case while analog dial indicators reveal changes in the readings during rotation. The indicator resolution is 0.01 mm. After the out-of-round readings are completed, the lid can be closed and locked for transport, or the rod can easily be removed from the case.

Compare the observed deviation with the allowed tolerances from the rod or machine manufacturer when making a service decision.

What is the difference between one-dial and three-dial configurations?

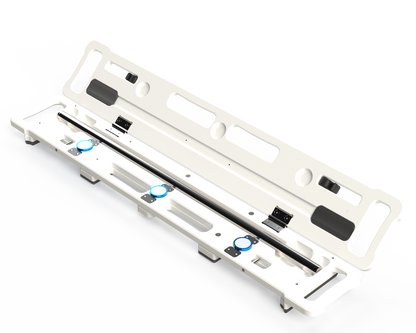

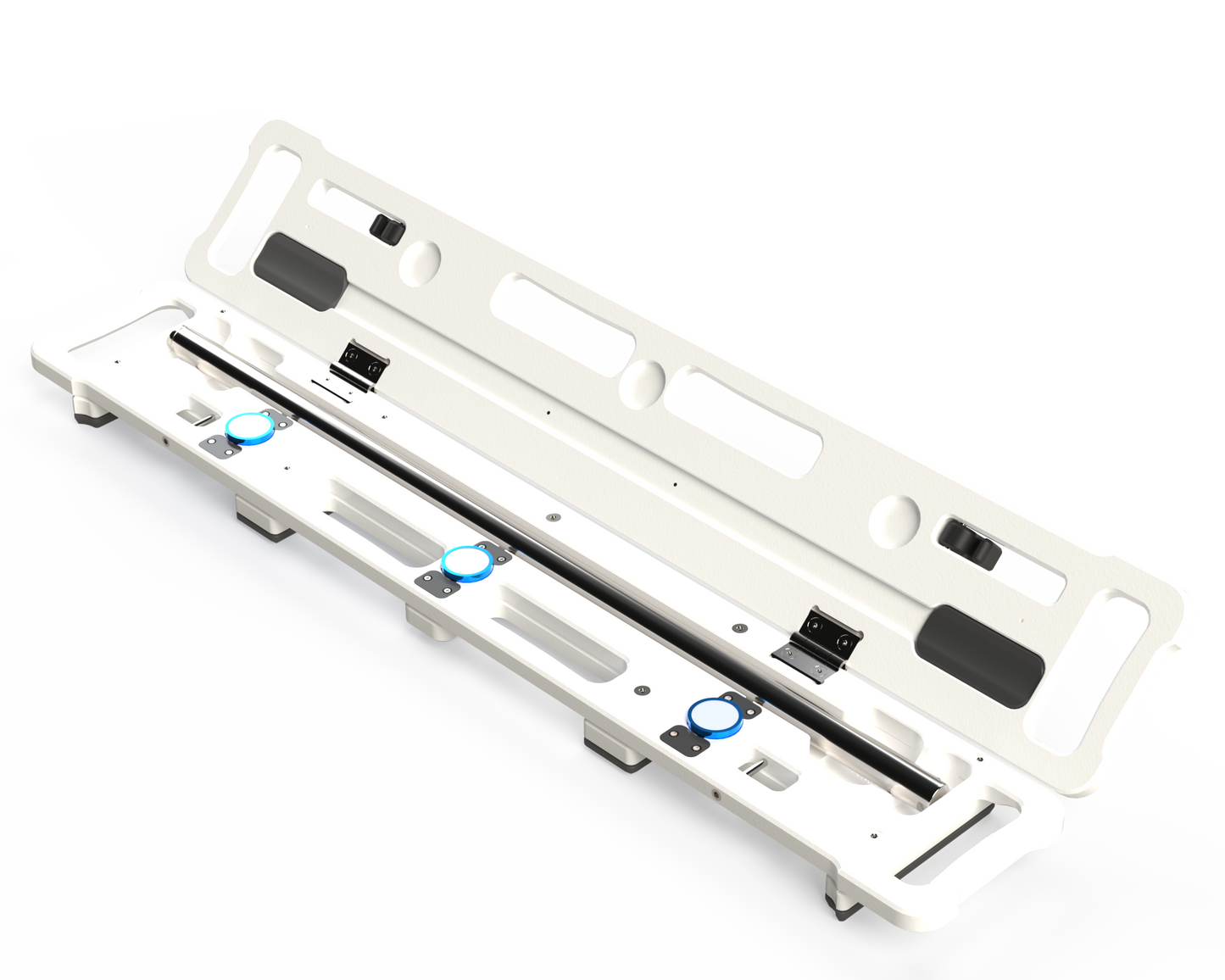

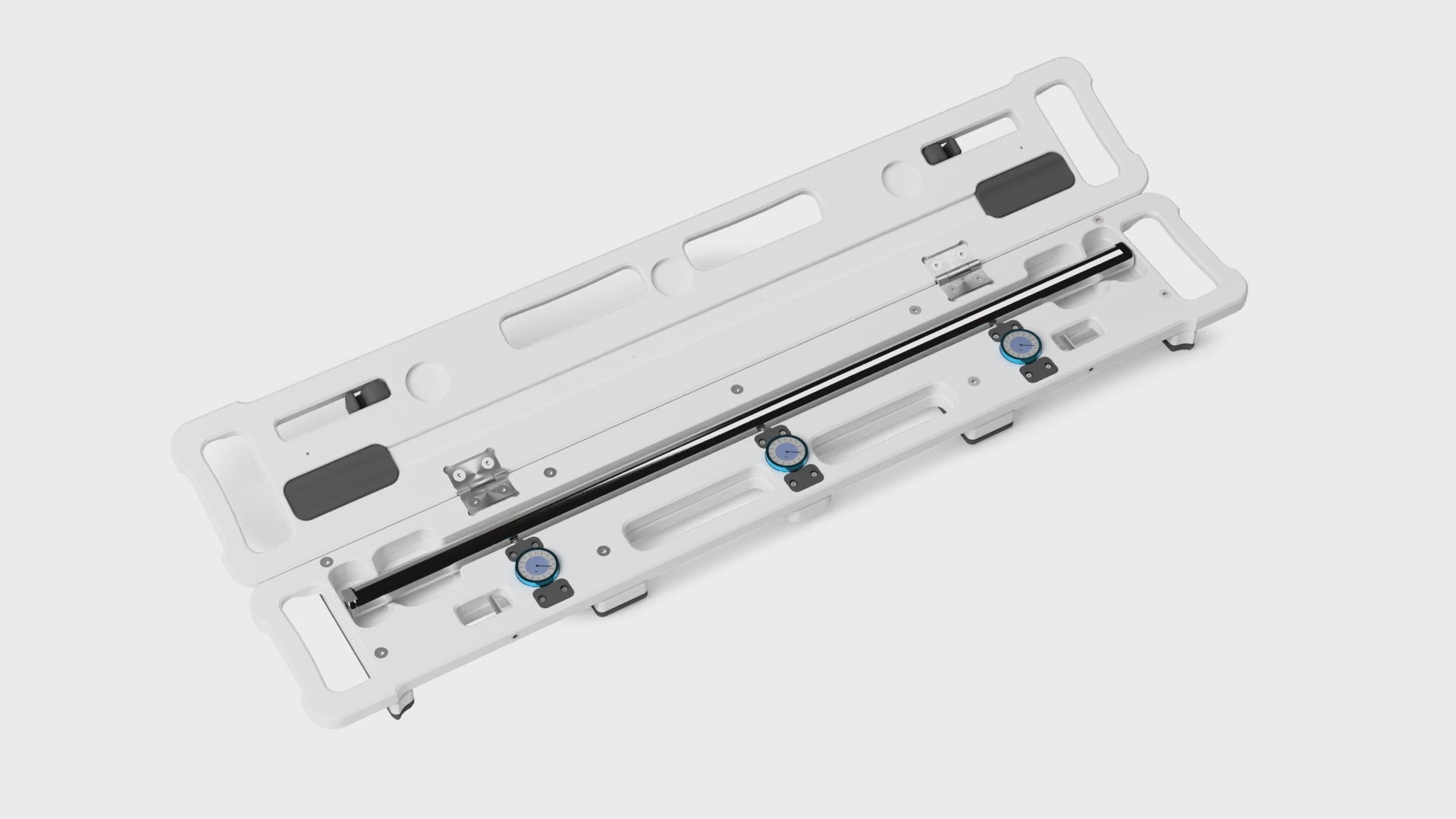

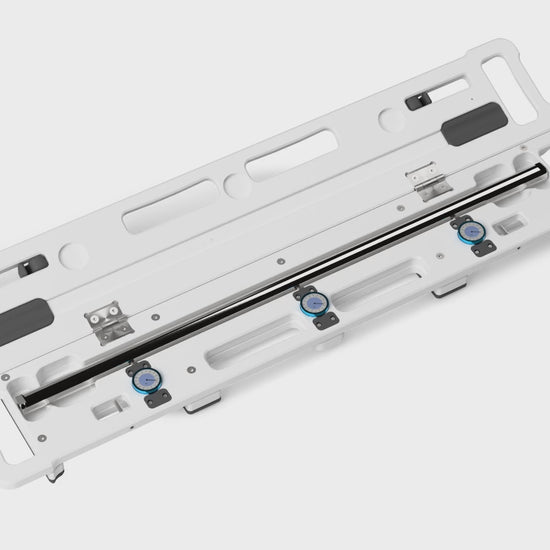

The one-dial configuration provides a measurement point for a deviation check at the center point of the rod. The three-dial configuration provides additional measurement points on the left side and right side of the rod as well.

Choose the arrangement for the inspection points and procedure your application requires. Both configurations use 0.01 mm indicator resolution.

What features support controlled magnetic rod transport?

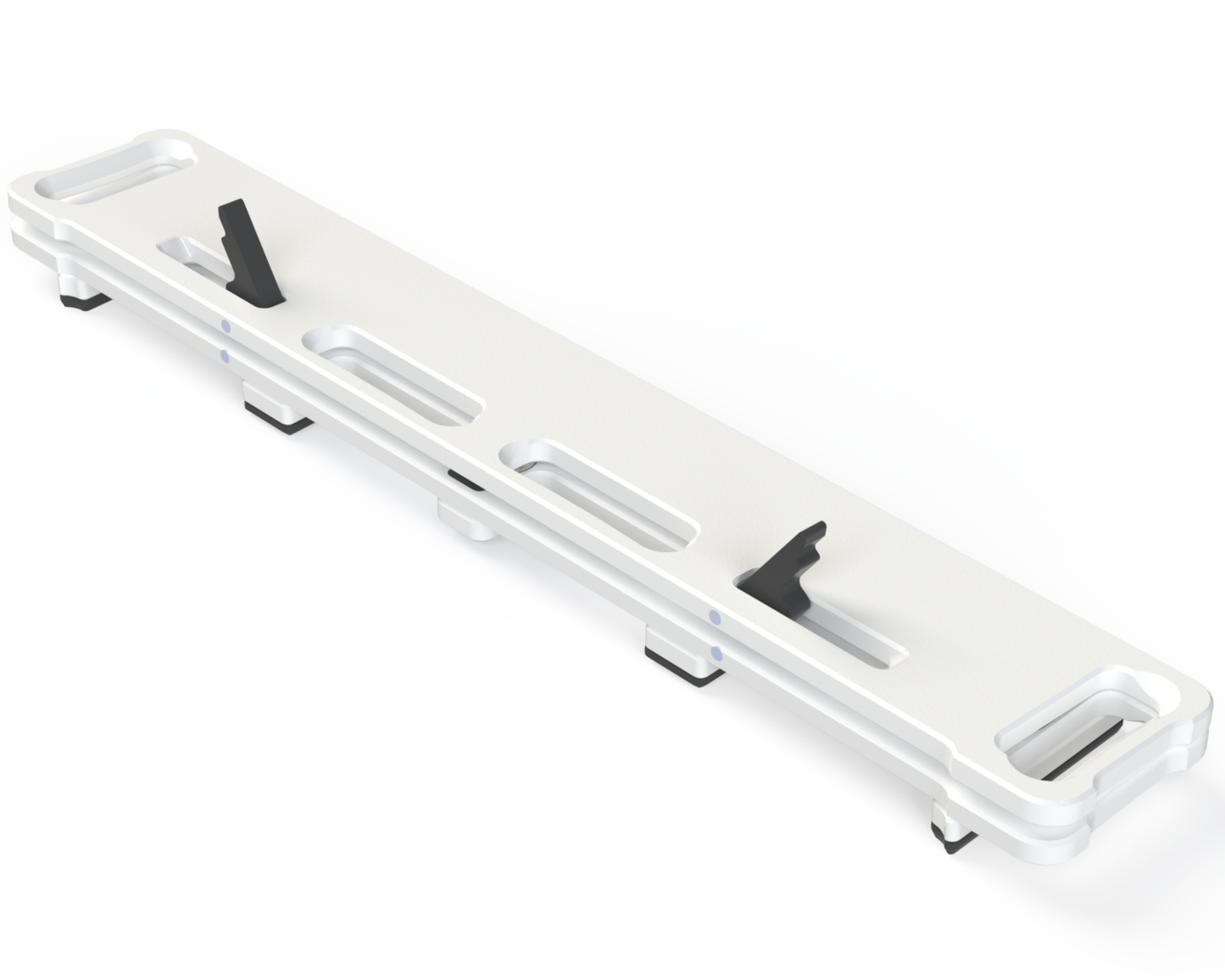

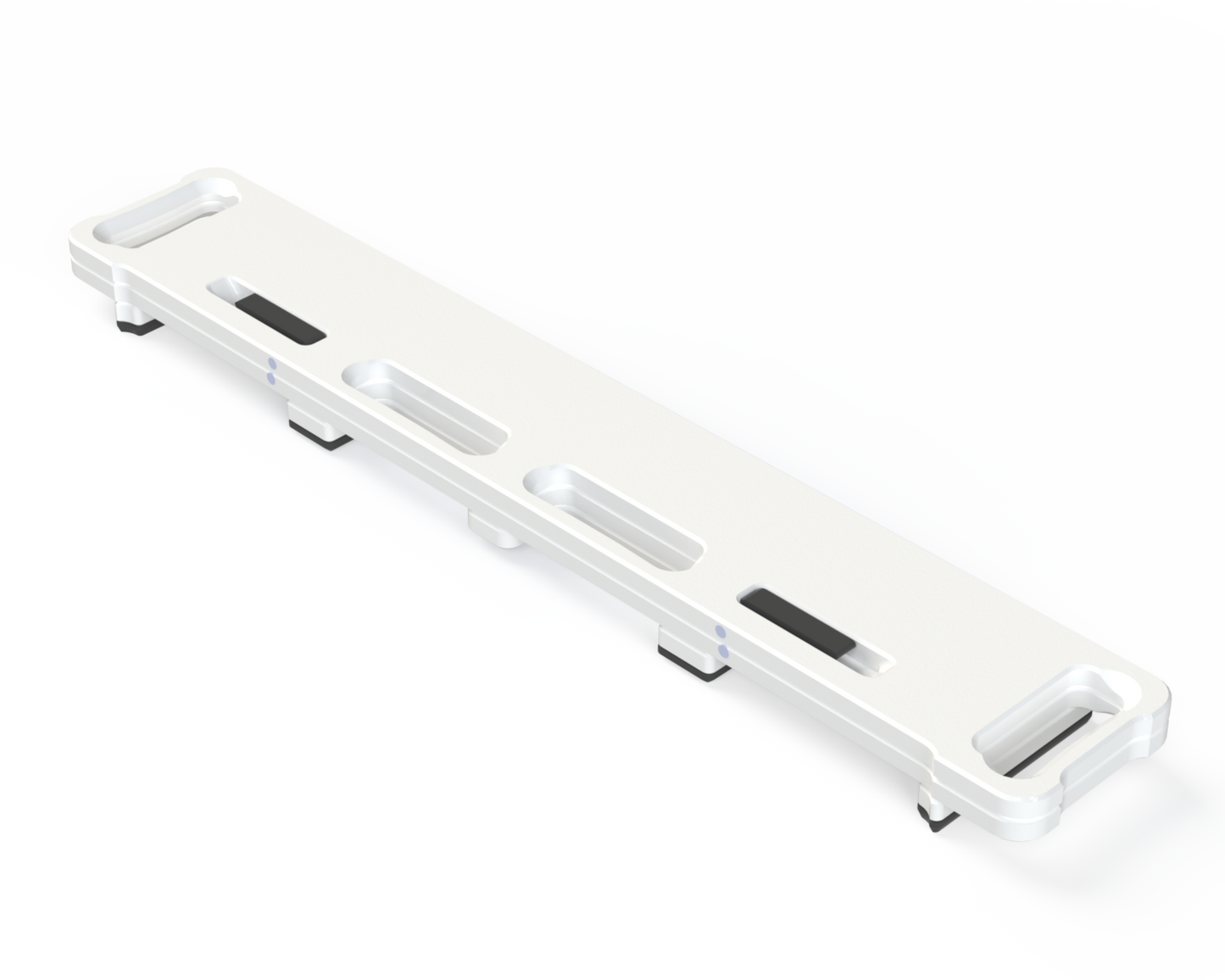

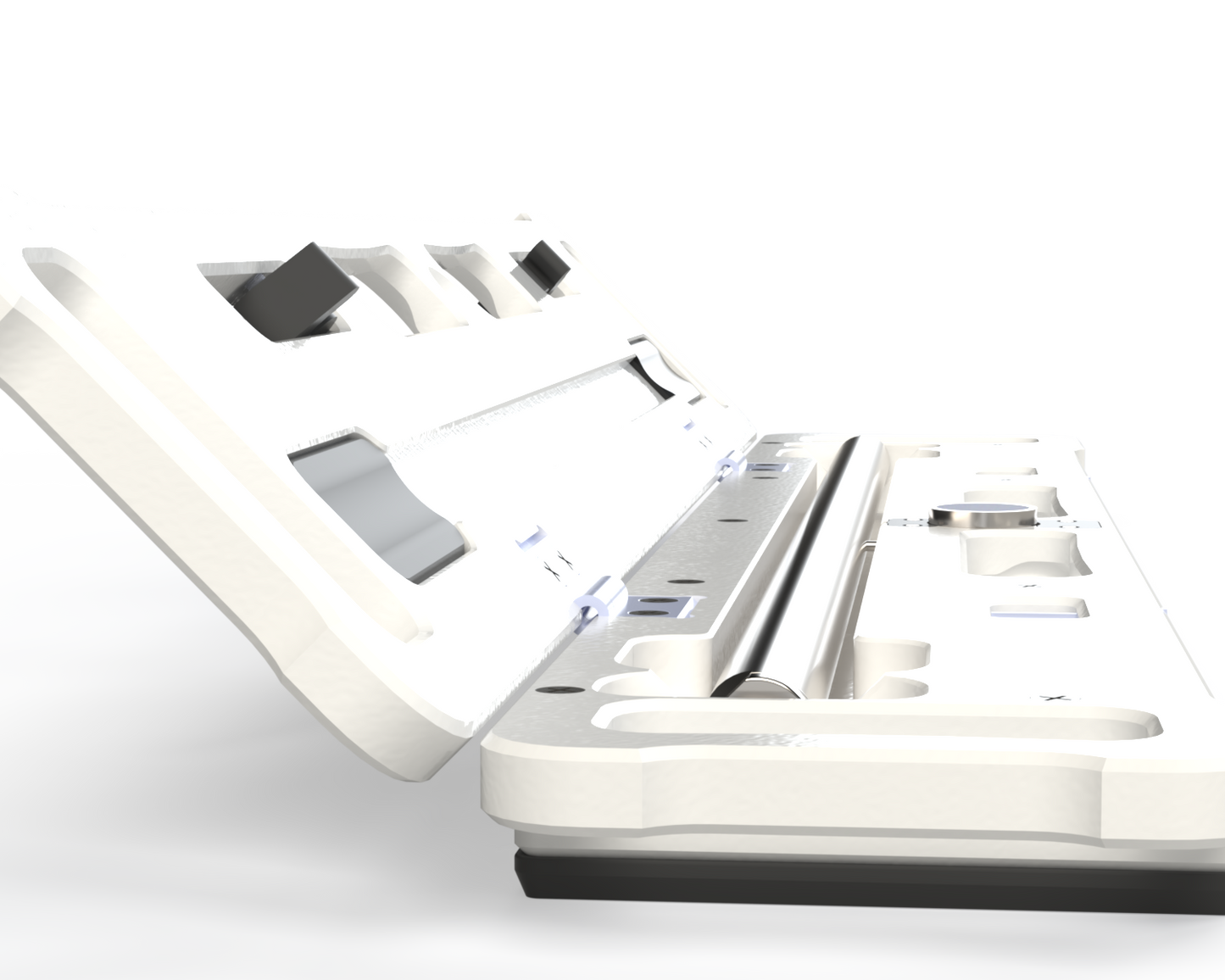

MagMule uses non-magnetic construction, large handles on three sides of the tool, locking latches, and a clamshell design that ensures even if the locking latches were not properly engaged the case would still be held shut while one holds the case via the handles. The case closes for transport and opens for inspection.

The carrying points support handling and handoffs between team members as part of the site's rod-handling procedure.

What should I confirm for my particular application?

Check the actual magnetic stretch rod dimensions, and the inspection requirements. The standard configuration is for a 34.25-inch rod; that example does not determine the fit of every rod.

Use the actual rod geometry and manufacturer tolerances to confirm the appropriate case and indicator arrangement.

Can the case size be customized for the rod?

The listed reference case dimensions are 40 by 7 by 4 inches, and sizes can be reviewed for your rod requirements. Confirm rod length/diameter and other fit details before reaching out. We would be glad to help customize the tool to your exact needs.

What warranty and purchase guarantee are included?

MagMule includes a 3-year warranty and a 60-day money-back guarantee. Choose the dial-indicator configuration on the product page and confirm any requested size changes before ordering.
